Xhorse Universal Key Blades List

 Xhorse Tech released a full range of valuable universal key blanks to better serve locksmith friends in 2020.  These metal key blanks are used for automotive and motorcycle applications.

• Specially designed to exceed locksmiths’ requirements and expectations.
• Produced in a nickel-plated finish and are packaged in polybags of 10 units, and 5 polybags of a box. [50pcs/box]
• Applied to cut keys covering over 2,000 models.

Xhorse Key Blanks Top Advantages:

• Excellent utility
• High corrosion resistance
• Nickel plating Shiny appearance
• High corrosion resistance
• Strong abrasion protection
• Strong wear protection

Xhorse key blanks vs. common key blanks

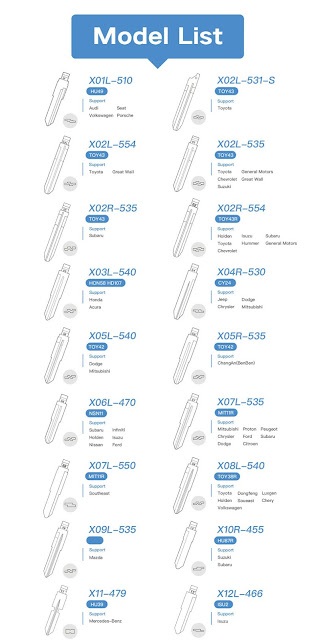

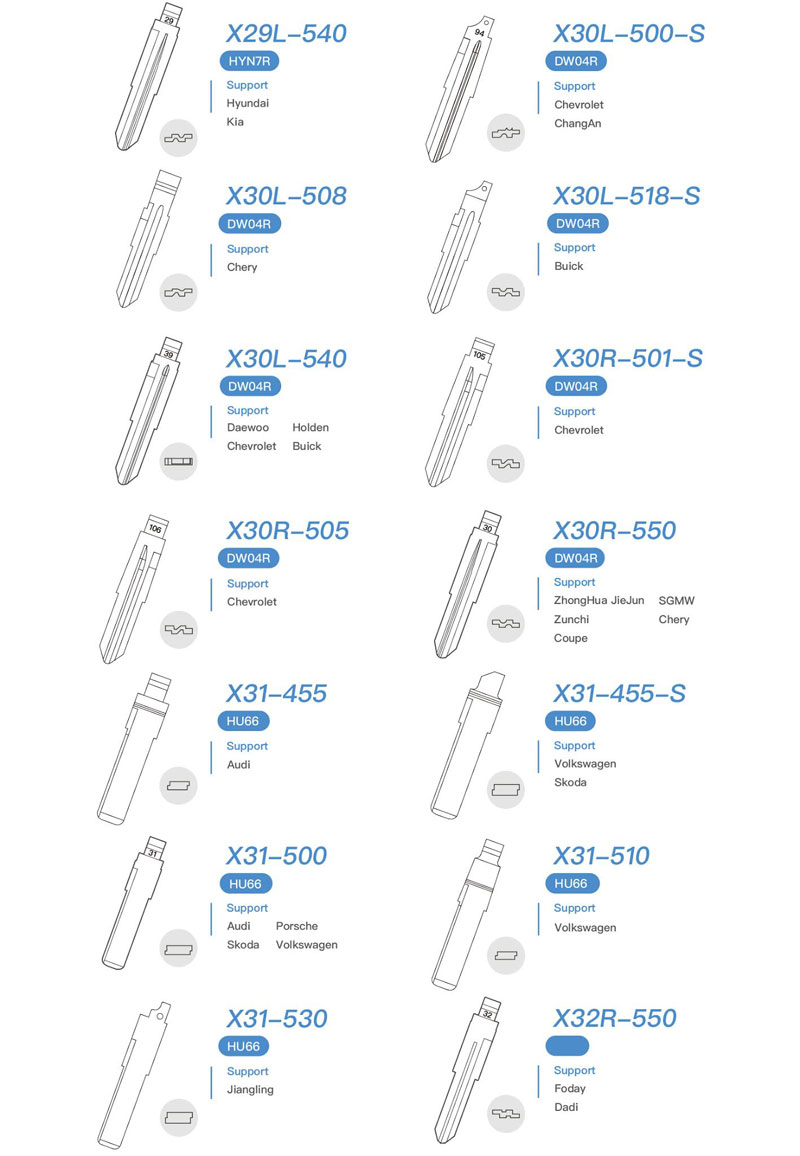

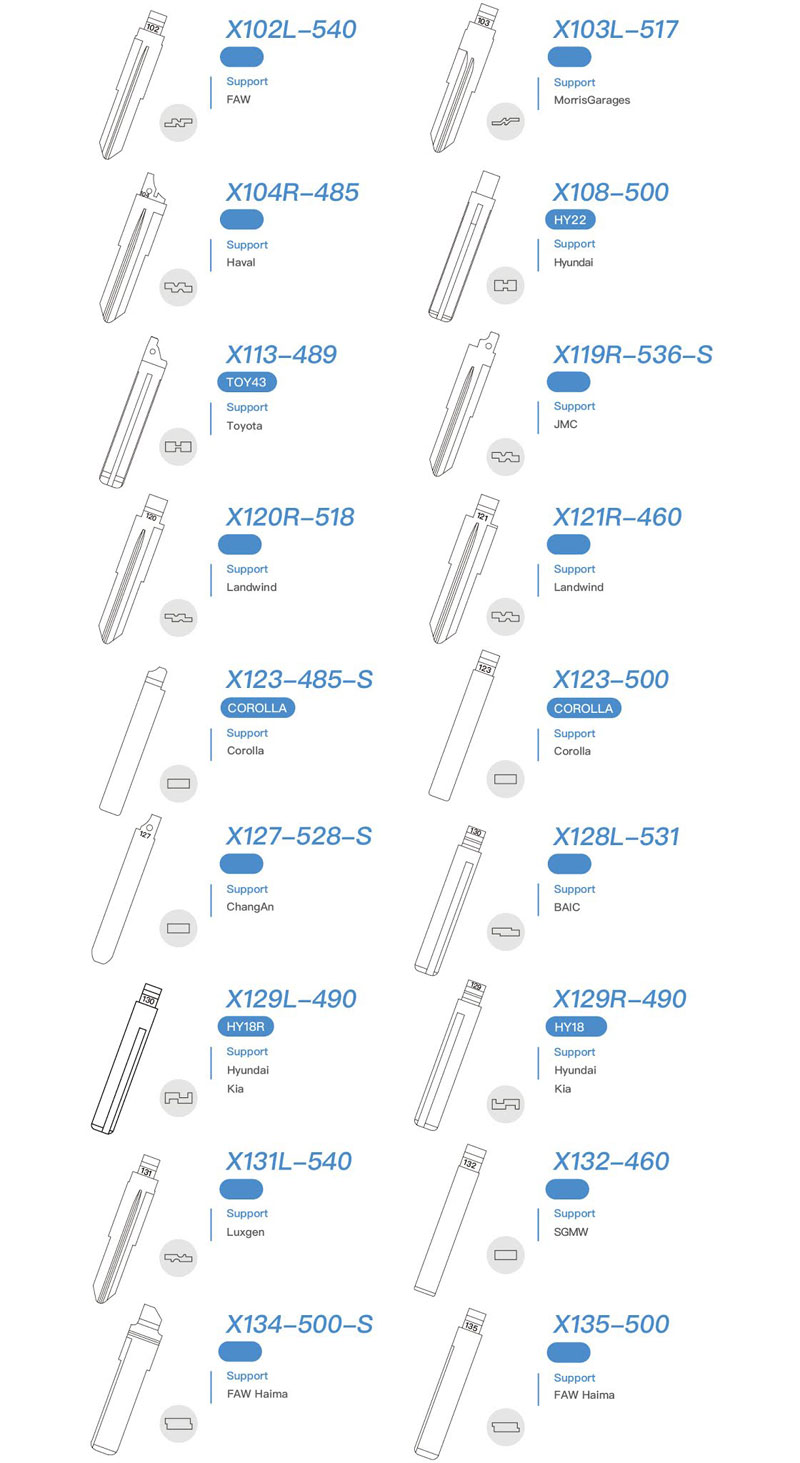

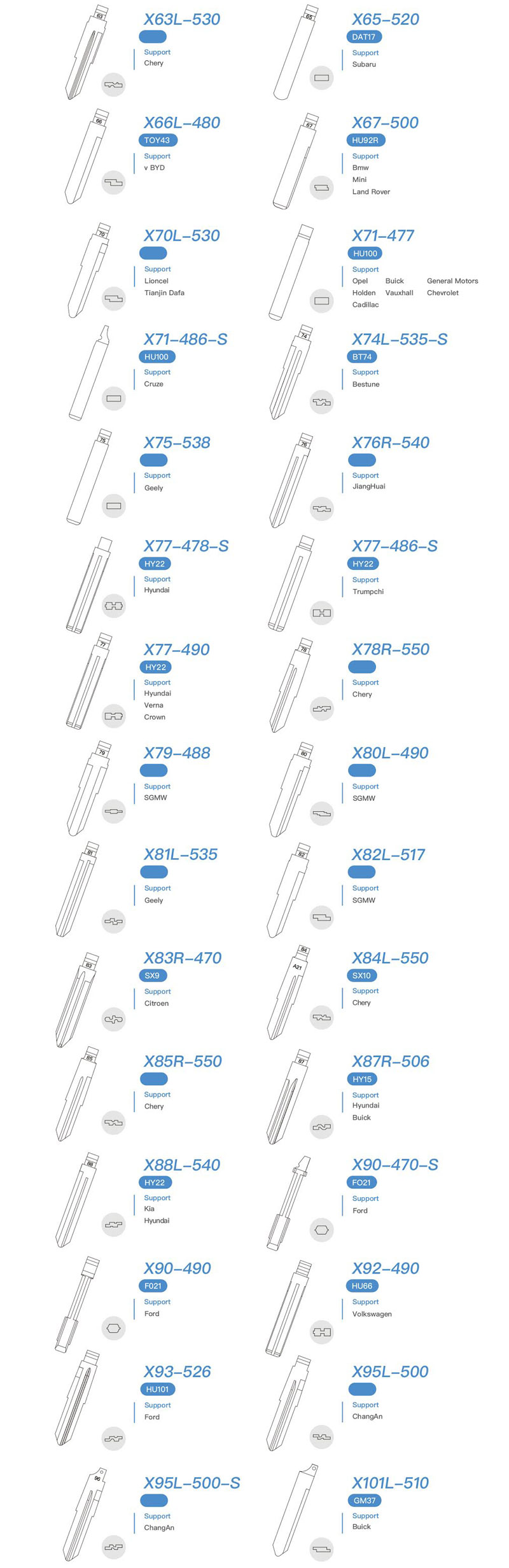

XHORSE UNIVERSAL KEY BLANK MODEL LIST

Feel free to contact www.vvdishop.com customer service for price and detail information.

Check: Dolphin XP005, Condor XC-Mini Plus

How to Cut a Fiat Ducato 2006- Key with Condor Mini Plus?

 What is going on, guys? Today I’m gonna use Xhorse Condor XC-Mini Plus to copy and cut a new key for Fiat Ducato year 2006 up. Here are 2 Fiat keys, the right one is original key, and the left one is new key to be cut.



Follow me, go to the Condor XC-Mini Plus tablet.

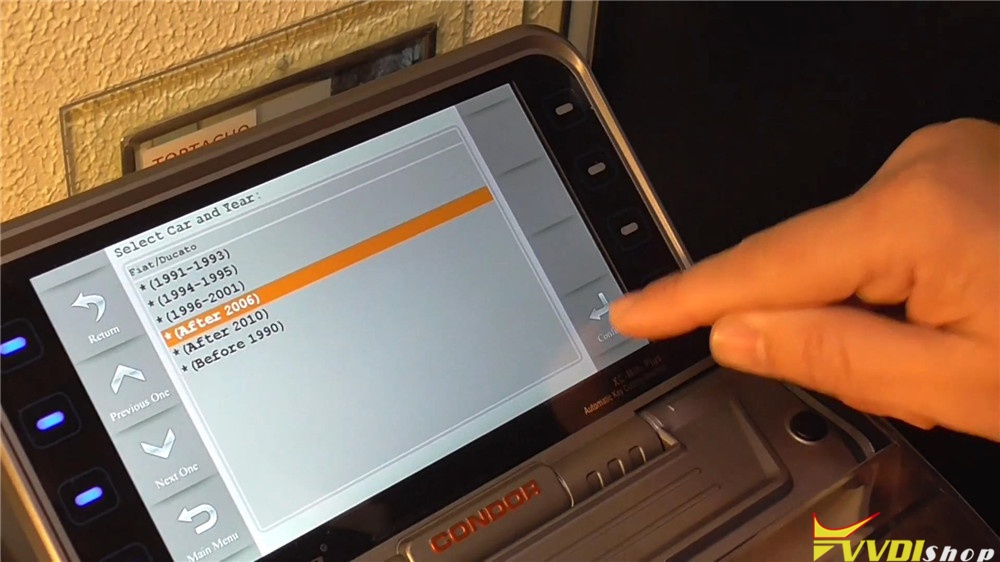

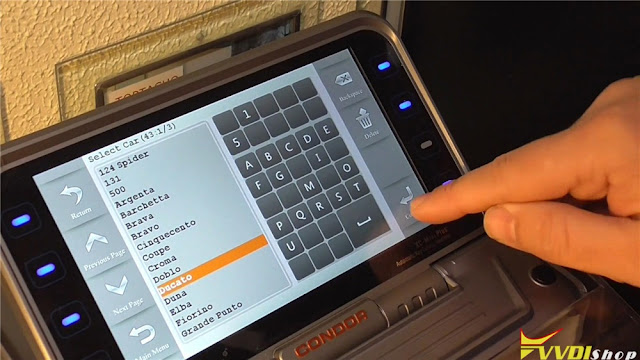

Key duplication >> Fiat >> Ducato >> After 2006 >> Confirm

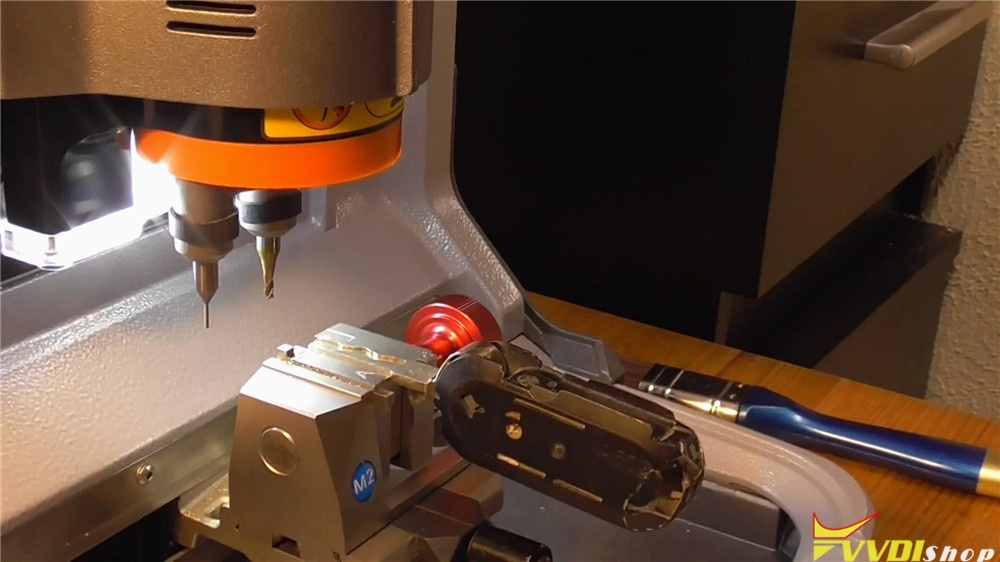

Put the original key flat on M2 clamp, fasten it. Then put down the cover.

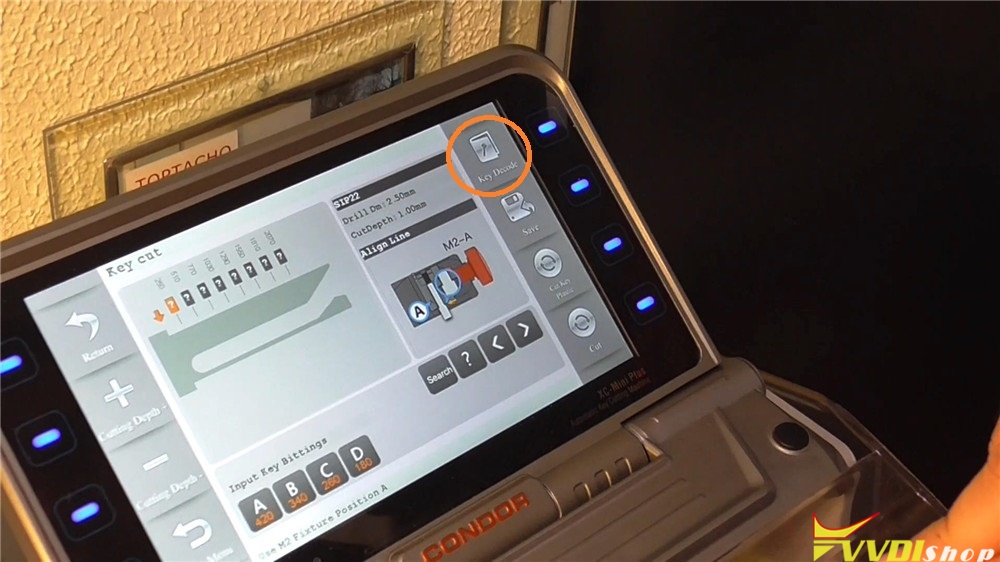

Press “Key Decode” to start.

XC-Mini machine starts decoding…

Decode completed.

Put up machine cover to take out the key, change to the new key fixing on.

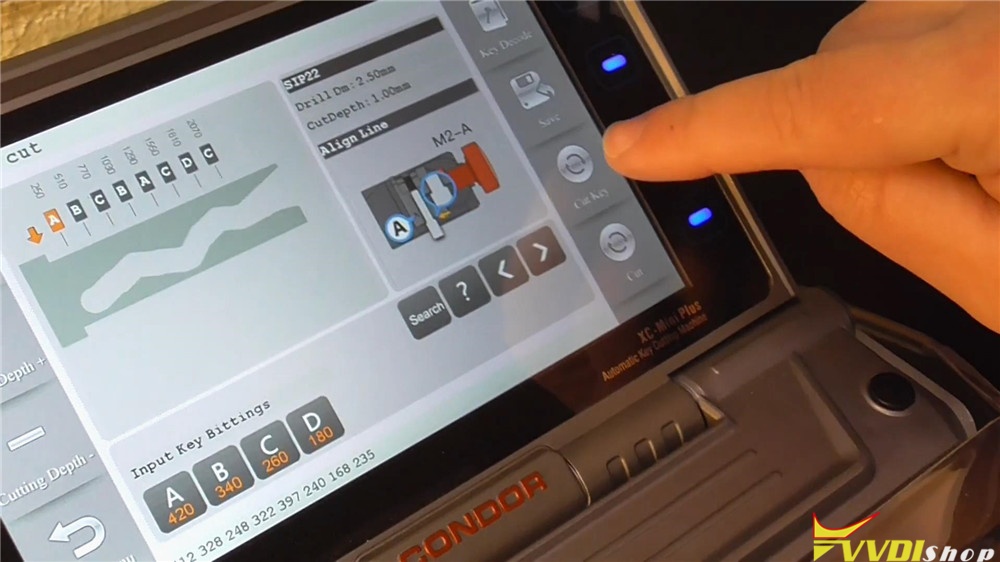

Press “Cut Key” on tablet.

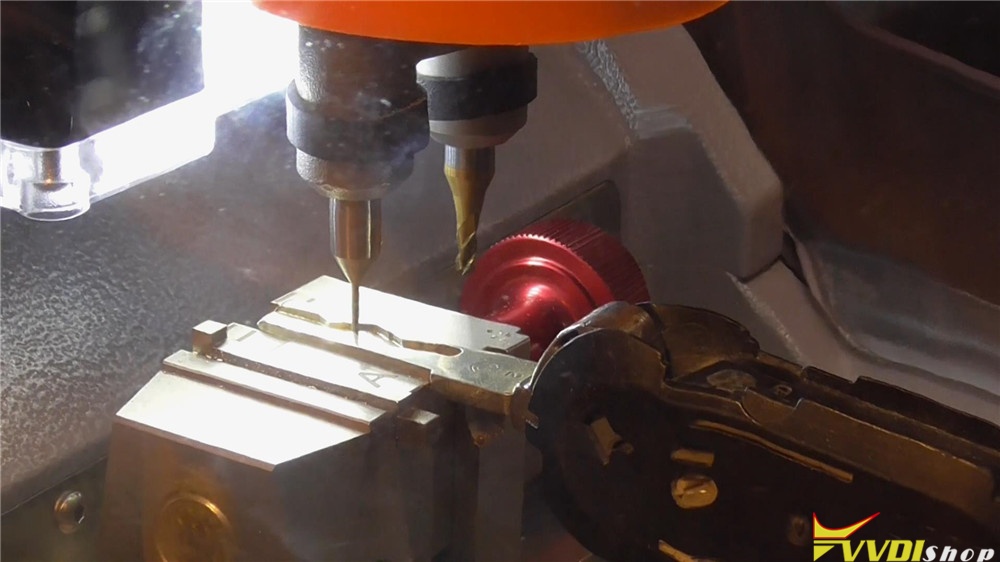

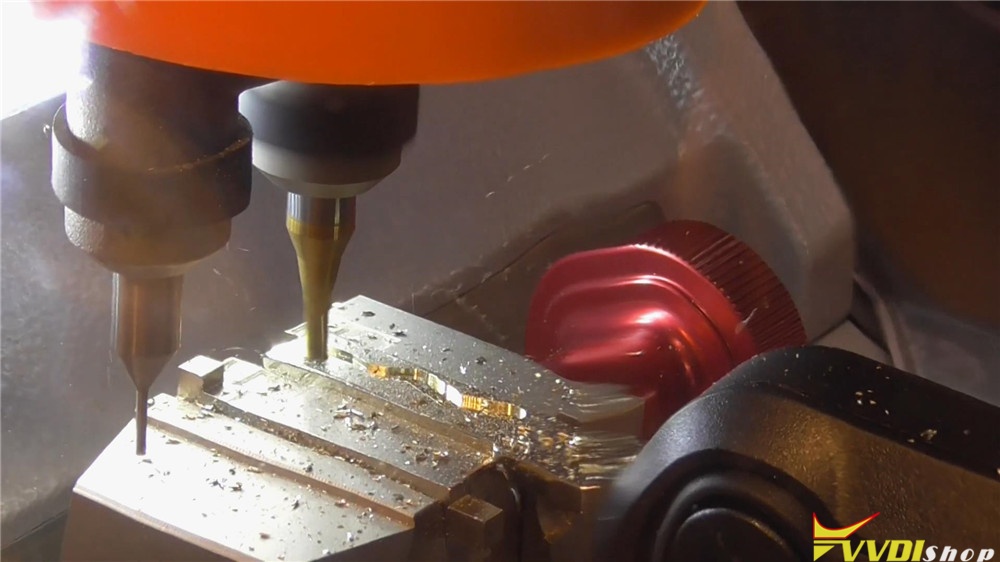

XC-Mini machine starts cutting…

Cutting key one side complete.

Sweep the burrs, take out and turn the key to other side, then fix it on again.

Repeat the operation as previous. Press “Cut Key” to continue.

Condor Mini Plus machine starts cutting again…

Cutting key complete!

Compare to the original key, they are same. Let me try it on the lock, alright it can work well.



This is how to copy and cut a Fiat Ducato key via Condor XC-Mini Plus Key Cutting Machine. It is so smart to automatically finish the job in 5 minutes.

http://blog.vvdishop.com/xhorse-condor-xc-mini-plus-cut-fiat-ducato-2006-key/

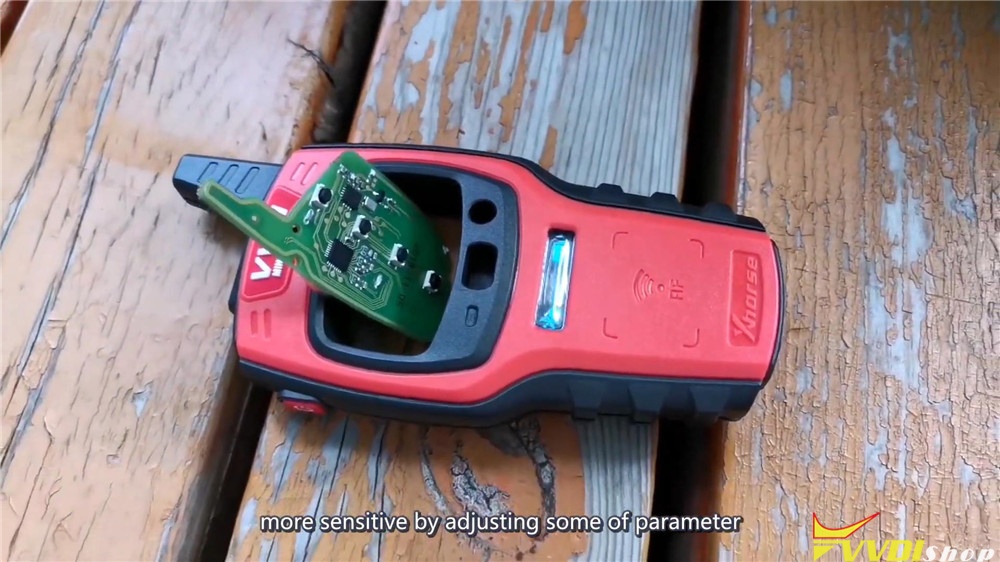

VVDI Mini Key Tool Modify Smart Key Button Distance

 How to use Xhorse VVDI Mini Key Tool to modify smart key button data? Locksmiths may need the tip when making a smart key. Here is the procedure with VVDI Mini Key Tool, it is suitable for VVDI Key Tool Max as well.

Procedure

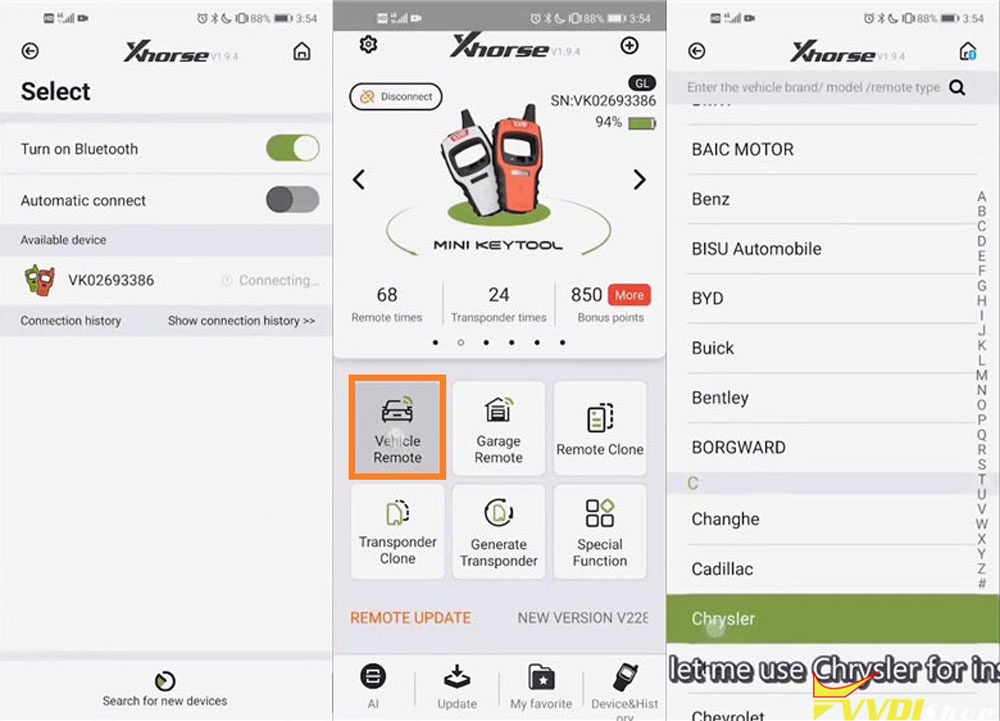

1. Go to main menu after connecting with VVDI Mini Key Tool.

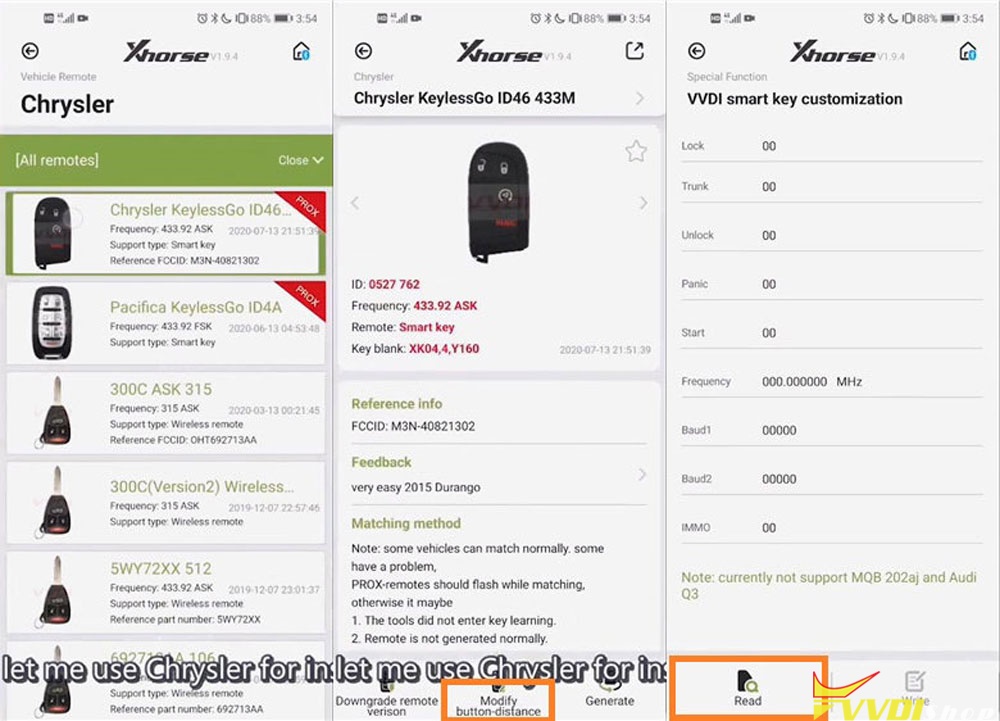

Vehicle remote >> Chrysler >> All remotes >> Chrysler KeylessGo ID46 433M

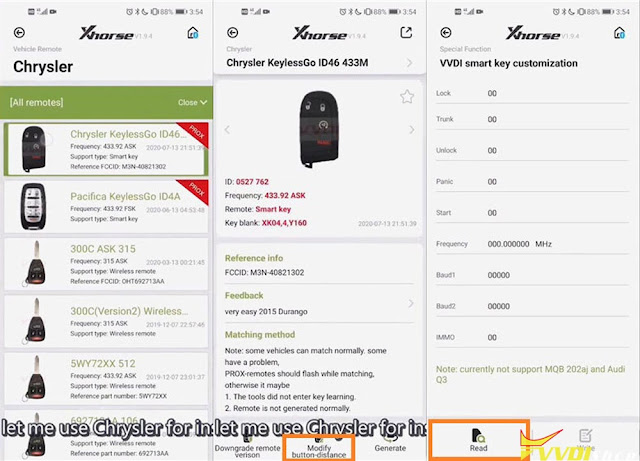

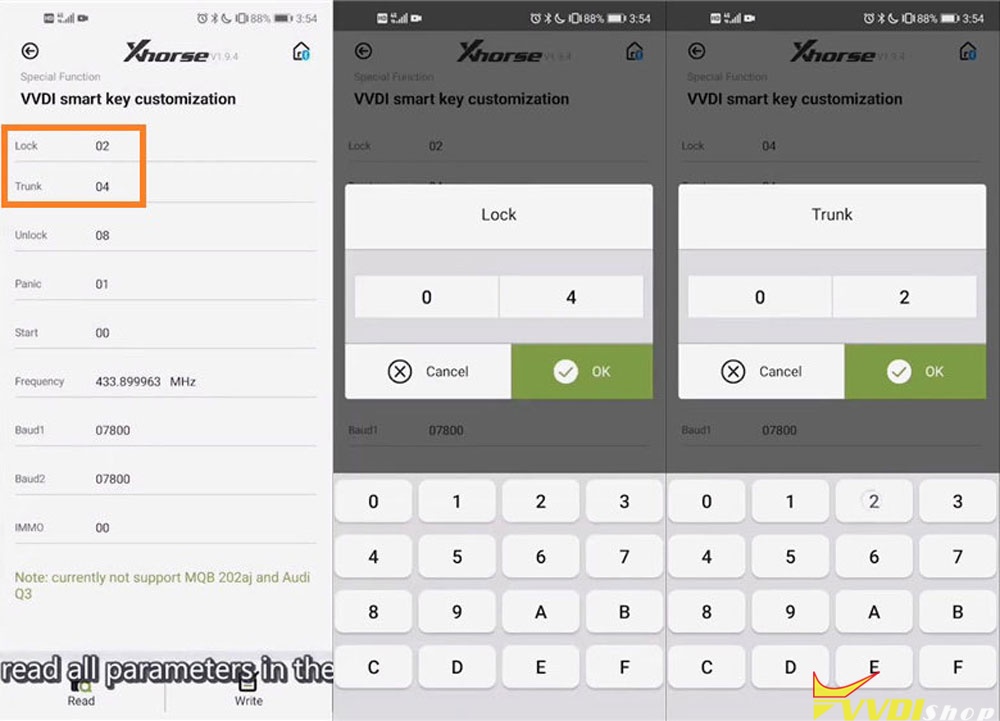

2. Modify button-distance >> Read

Smart key data will come out after press “Read”. If we found the “Lock” button is contrary to “Trunk” button, press them to correct the data.

Modify “Lock” button from 2 to 4, press “OK”.

Modify “Trunk” button from 4 to 2, press “OK”.

We can also modify the “Frequency” and “Baud1”.

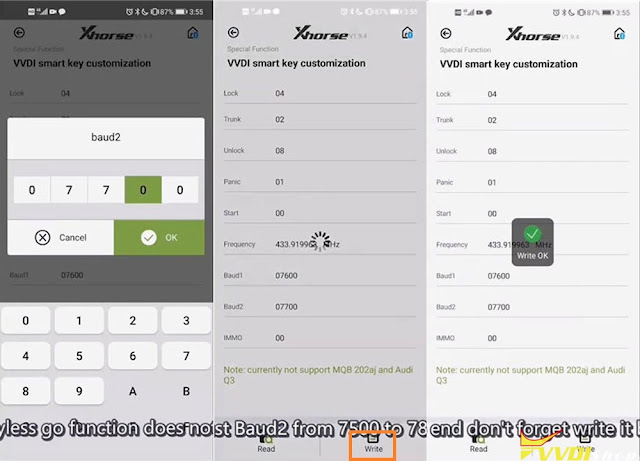

It is benefit for the situation when the remote distance is too short to work well, it would be work. For example, the frequency is 433.899, we edit it from 433.899 to 433.919, and we edit baudi1 from 7800 to 7600. When the keyless go function does not work well, try to adjust baud2 from 7800 to 7700 either.

3. Write data to smart key

Press “Write” button to save the new remote control distance and sensing sensitivity data to smart key.

Write OK. It is done, no need to match the vehicle again.

This is a tech tip of fine tuning smart key remote control distance and sensing sensitivity data with VVDI Mini KeyTool.

Good luck!

https://www.vvdishop.com/

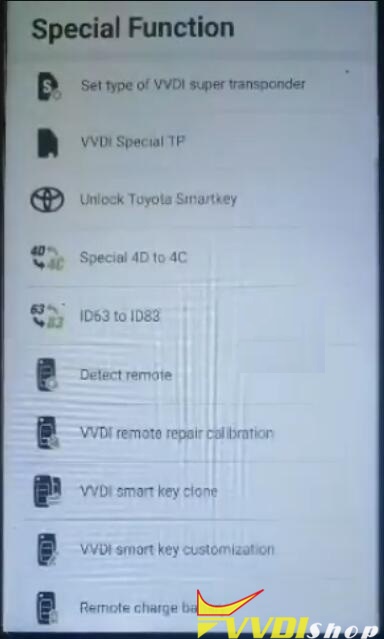

VVDI Remote charge battery function review

 Questions

1. Does the vvdi mini key tool remote charge battery function work?
2. Can I use the function with Xhorse VVDI Key Tool Max programmer?
3. What vehicle models dose the function work for?

Answers

1. Yes, it can work normally.
2. Yes, remote charge battery function can work well with VVDI Mini Key Tool and VVDI Key Tool Max.
3. It is used for BMW old type EWS original rechargeable keys.

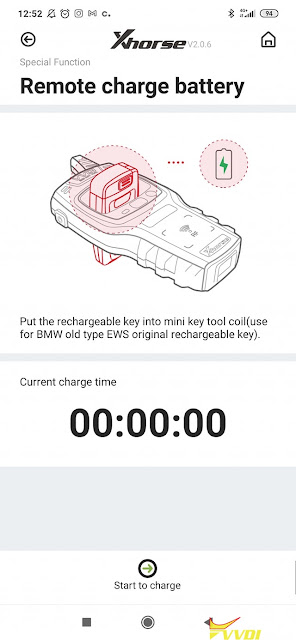

Remote charge battery test review

Works on VVDI Key Tool Max

“It is quite easy, the function can work without a problem. I have tried it on the VVDI Key Tool Max and it did work! It gave 10 minutes for charging.”

Works on VVDI Mini Key Tool

“I am also tried it on a VVDI Mini Key Tool, which did a few in the past months. It works fine. Today I replaced the battery on a BMW CAS diamond key. Measures 2.80v., it takes 5 minutes in VVDI Mini Key Tool, 3.20v.”

Thanks to VVDIshop customer.

https://www.vvdishop.com/

VVDI Key Tool Plus Pad Function Menu

 Hello locksmith friends, this is the first look of Xhorse VVDI Key Tool Plus Pad, today I’m gonna make an introduction for its overall functions.

As we can see, there are 8 functions on VVDI Key Tool Plus Pad homepage: immo programming, transponder clone, generate transponder, remote program, OBD diagnostic, prog, cutting key and update.

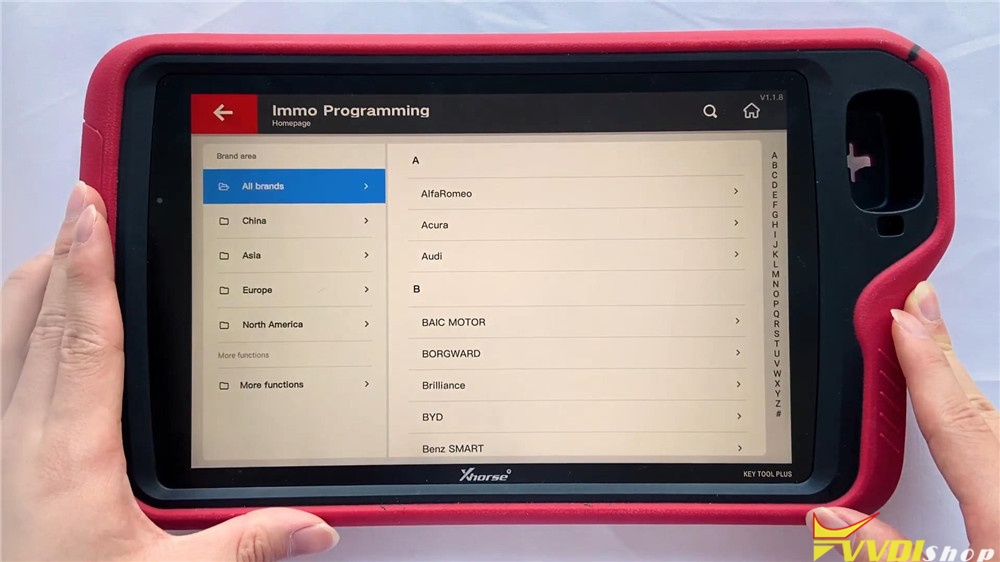

1. Immo Programming

Go into immobilizer programming, we will find it supports many manufacturers, which classified by areas and brands. We can program keys for most cars such as Volkswagen, BMW, Audi, Mercedes Benz, Ford, Dodge, Chrysler, Porsche, Bentley, etc.

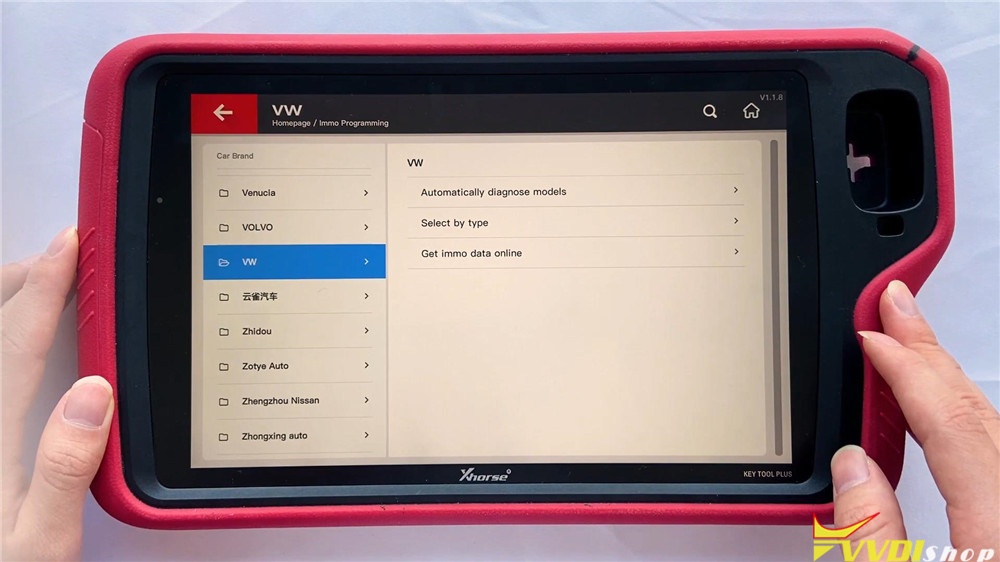

Let’s access VW, we can still select other cars on the left menu.

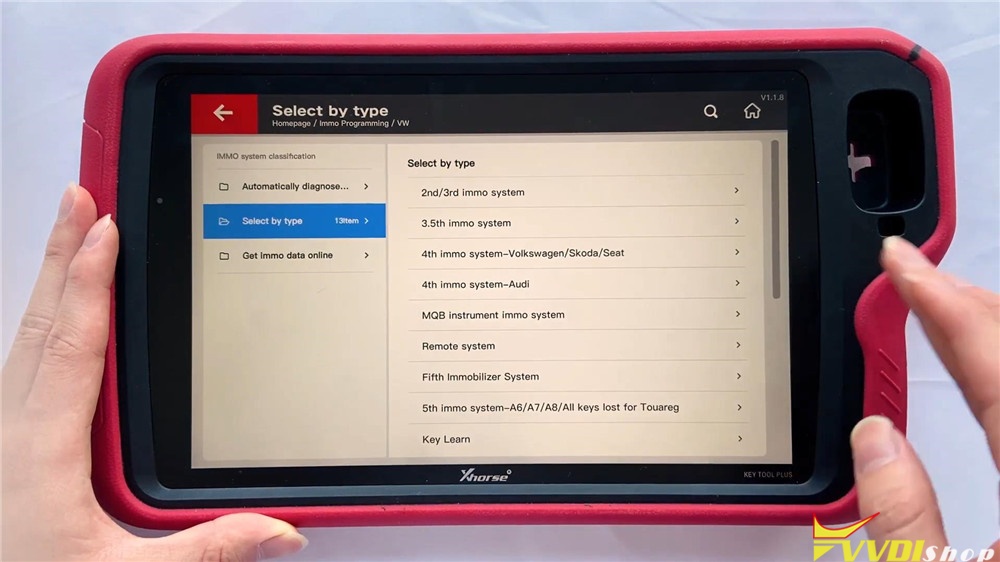

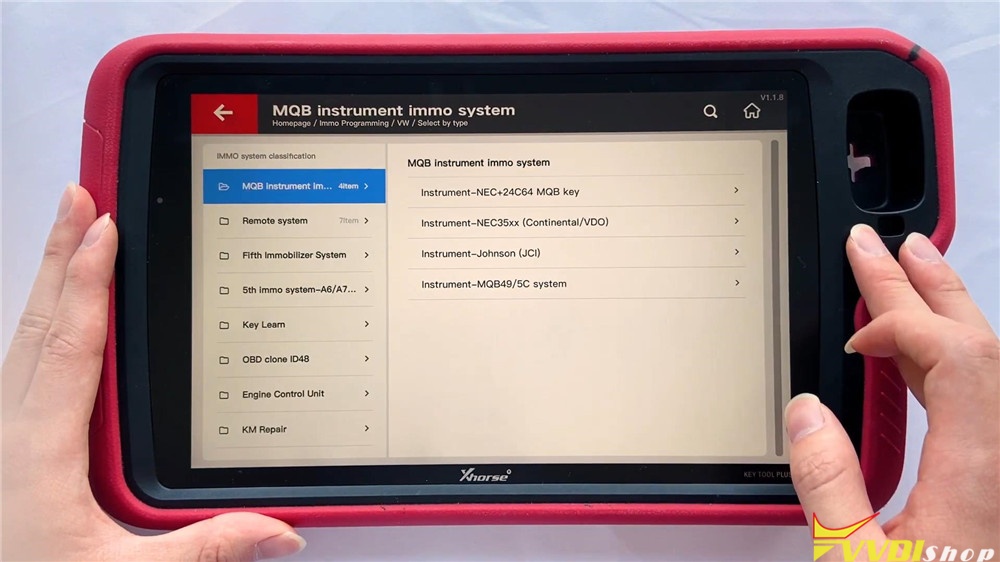

Select by type >> MQB instrument immo system

There are different car systems and operations available, we can select it by requirements. Or we can also use automatically diagnose models at first instead.

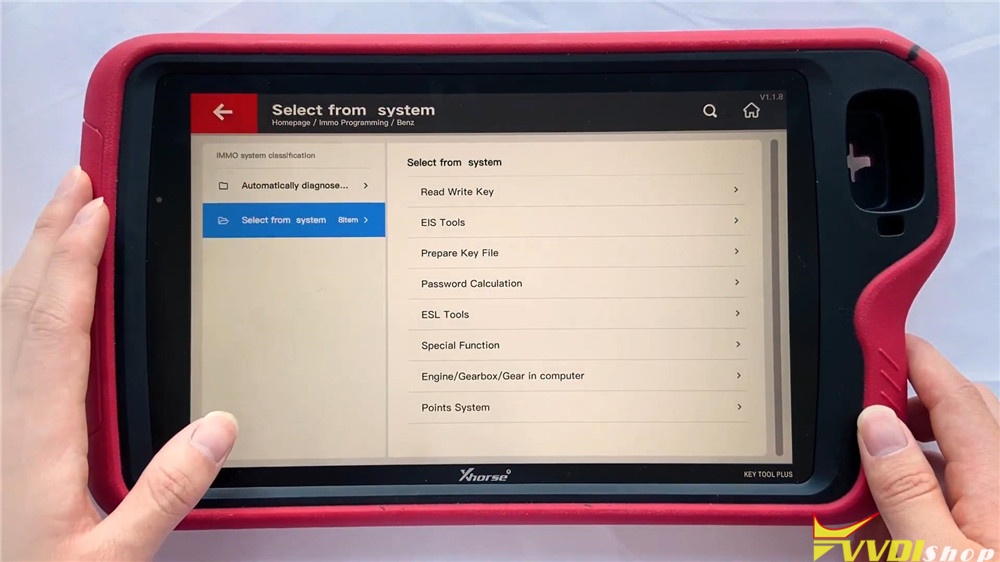

Let’s check Benz to have a look.

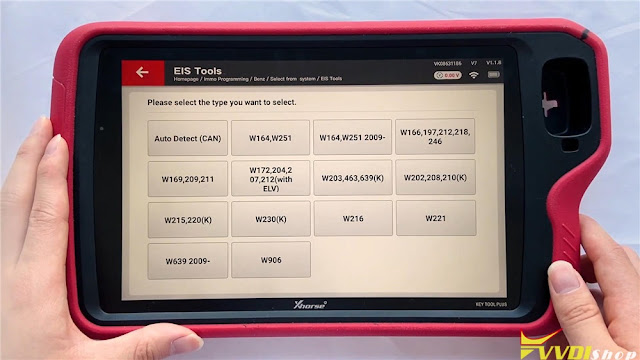

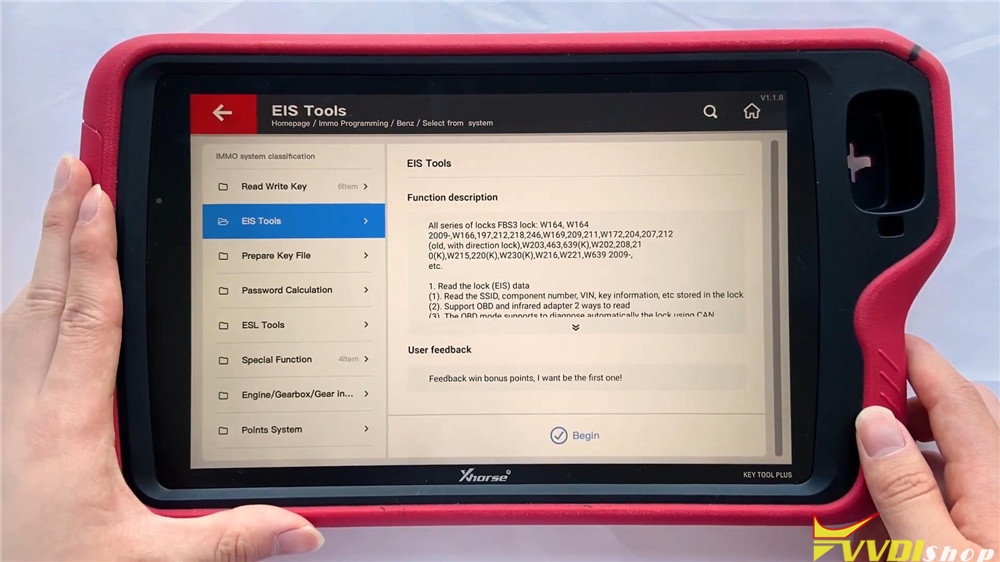

Select from system >> EIS tools >> Begin

It enables Benz to read write key, use EIS tools, prepare key file, calculate password and do other functions. EIS tools maybe the most often to use, go into the function, we can select the type to perform or use auto detect(CAN) directly.

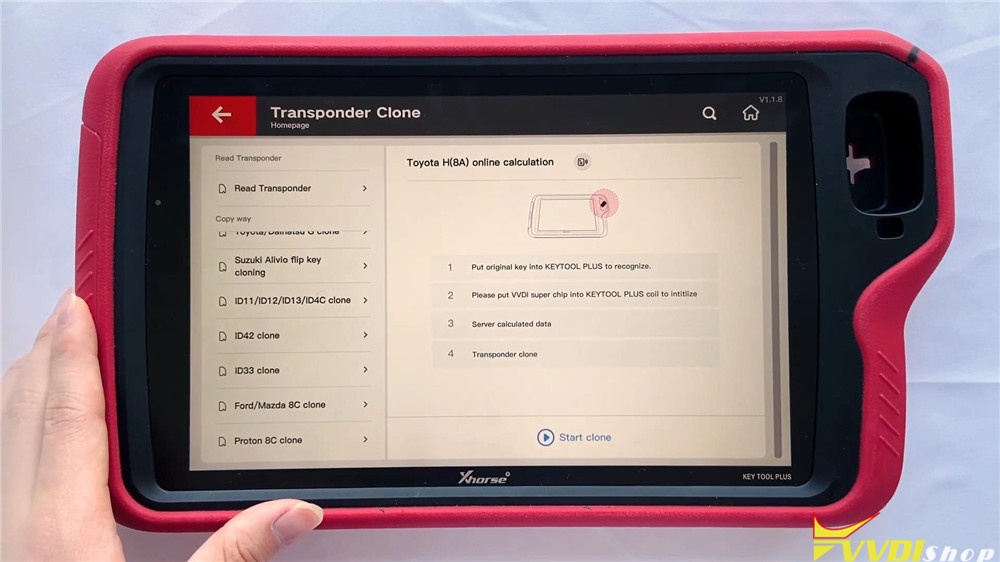

2. Transponder Clone

The right side big hole is a detection coil used for transponder clone. It is used to place remotes, generate and detect the transponder. Here you can find several copy ways for calculation including ID46, ID48(96 bit), ID4D, ID4E, 70/83, Toyota H(8A), etc.

3. Generate Transponder

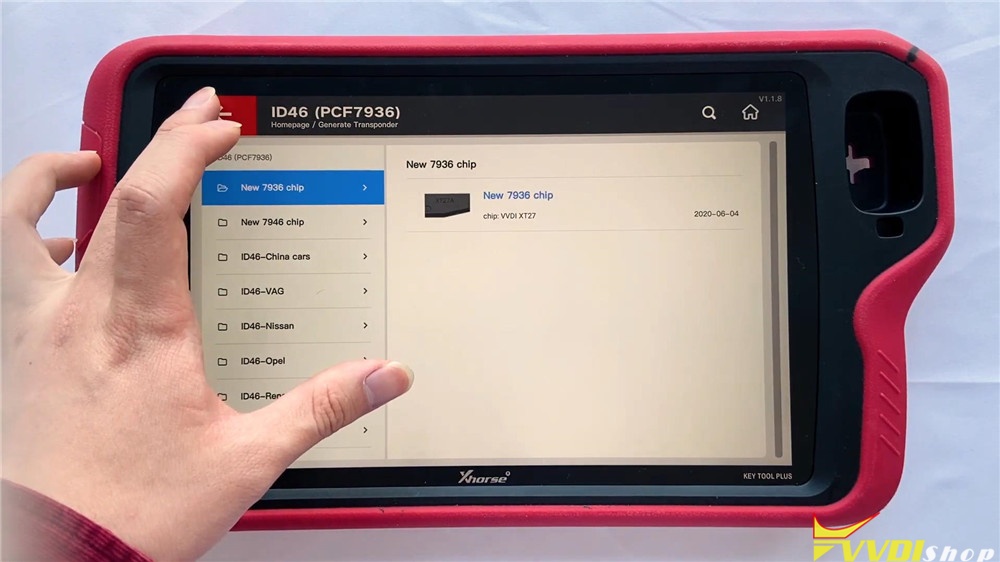

Here you can search by transponder or car model, the chip list shows the types you can generate. Now go into ID46(PCF7936) chip, we can see here are several specific chips for selection.

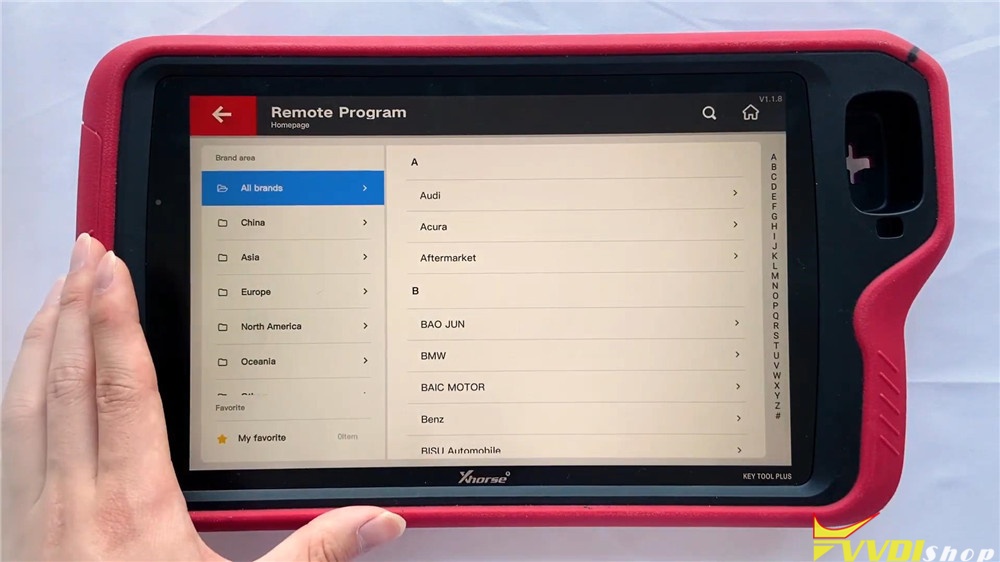

4. Remote Program

This function supports general remote for lots of car models we can check here. They are classified by areas and brands. let’s go into Land Rover:

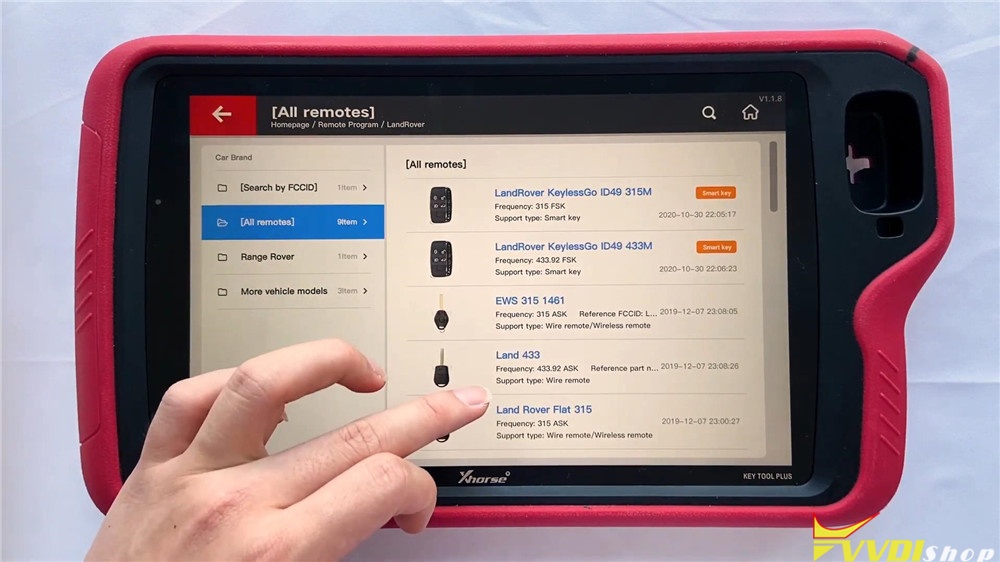

Land Rover >> All remotes

It will display different Land Rover remotes to program.

5. Prog

There are 8 modules in the function: EEPROM and FLASH, Immo, instrument, airbag, read ECU with CAN, data edit, ECU and other. It can read different types of EEPROM and flash data via adapter.

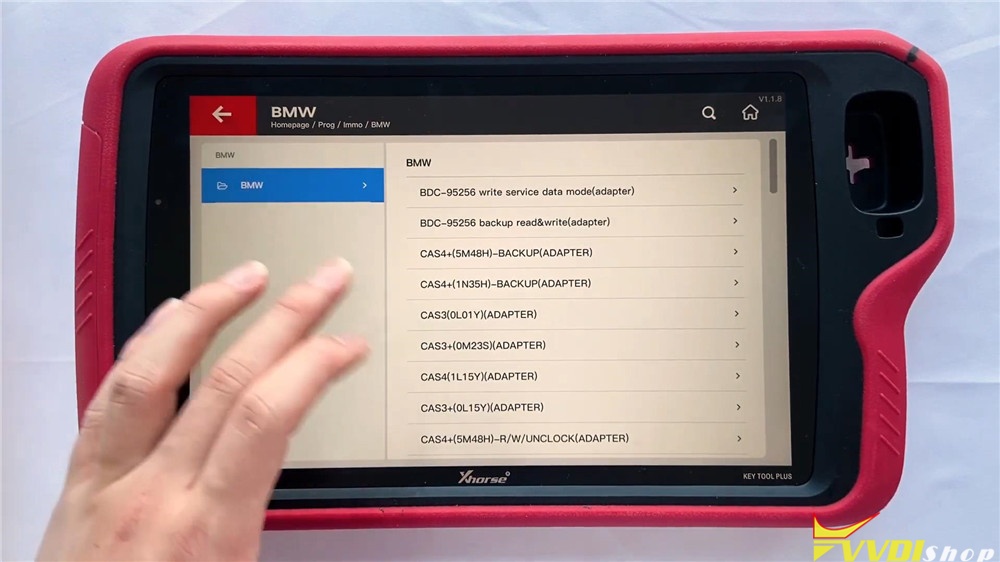

Let’s get into immobilizer BMW module, it supports different systems such as CAS3/CAS3+ and CAS4/CAS4+, we can read module data here via adapters directly.

In read ECU module, we can read different BMW engines here.

In other module, we can find FRM of BMW.

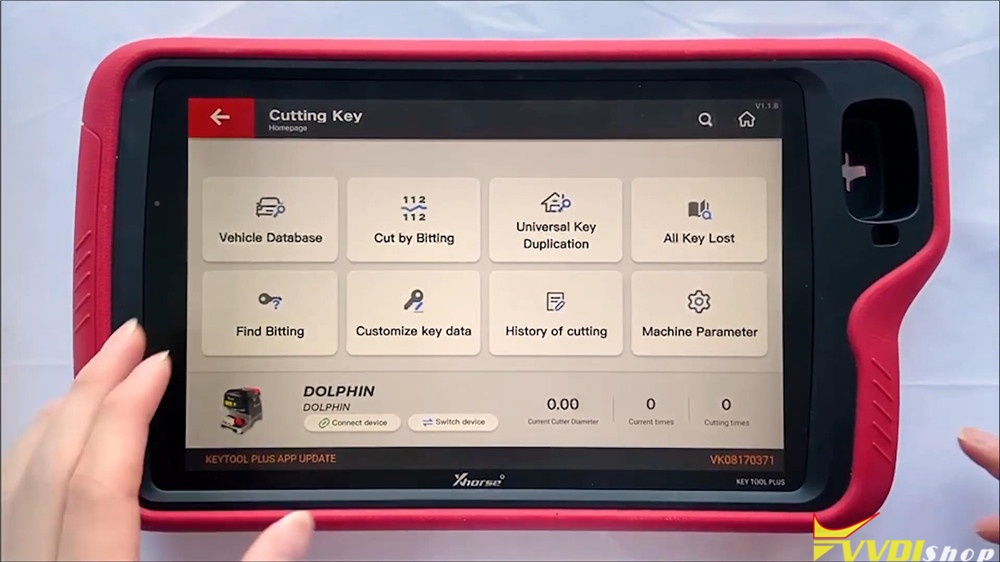

6. Cutting Key

This function can connect with Dolphin XP005 Key Cutting Machine to control it. In the function including vehicle database, cut by bitting, universal key duplication, all key lost, find bitting , customize key data, history of cutting and machine parameter.

7. OBD Diagnostic

This function has just been released several days ago and will be improved gradually.

8. Update

We can update software here in time.

On the bottom of homepage screen, we can click the buttons to quick use AI query, remote clone, immo data tool, special functions or my favorite.

Full video of function overview:

This a brief function overview of new coming VVDI Key Tool Plus Pad diagnostic scanner. Any questions please contact us.
