Xhorse VVDI Audi BCM2 Solder Free Adapter FAQ

Xhorse released new optional Audi BCM2 solder free adapter.  Here are frequently asked questions  and answers of the new adapter.

Q: Is it for xhorse key tool plus only or mini prog?

A: The Audi bcm2 adapter is compatible with vvdi key tool plus and vvdi2 +vvdiprog.

Q: does it support Audi A6L all keys lost without synchronize data?

A: No, A6L/A6 AKL still requires sync data from third party. But the adapter will help read BCM2 Immo data when lost all keys. A4L, A5, Q5 all keys lost does not require sync data.

Check the table of the adapter capabilities below

Add Key			All Keys Lost
	Read BCM2 data	Synchronize data	Read BCM2 data	Synchronize data
A4L/A5/Q5 -2013	OBD	No	OBD/some need remove BCM2	No
A4L/A5/Q5 2013-2019	Xhorse BCM2 Adapter	No	VVDI BCM2 adapter	No
A6L/A7/A8 -2013	OBD	Obtain from working key	OBD/some need remove BCM2	Obtain from third party
A6L/A7/A 2013-2019	OBD	Obtain from working key	VVDI BCM2 adapter	Obtain from third party

Q: Does the cable work with vvdi2 as well?

A： Yes, vvdi2 upcoming update will adds this function. But requires working with vvdi prog to read BCM2 data.

Q: Can I do 2013-2018 A4 all keys lost via OBD with xhorse key tool plus and this adapter?

A:No, for A4 from 2013-2018 you must read BCM2 Immo data with the new solder free adapter.  pre-2013 A4 supports BCM2 data reading via OBD (does not require sync data)

Q：Can I read the BCM2 Immo data without soldering if I buy this adapter?

A:  Yes, you can. requires the xhorse Audi bcm2 adapter set which has 6 adapters included.

Q: When will it be available?

A: it will be available in the beginning of Sep. 2021.

Q: How much does it cost?

A: pre-order price is 100USD. price will goes up when it is available. First come first served.

Q: Does it require token? what about the update?

A：It is token free.  Free update as other xhorse tools.

Q：Does it require special key to program?

A：You can use regular 754J key on the aftermakert.

www.vvdishop.com

Xhorse Key Tool Plus Adds BMW M4 2017 FEM key on bench

 Xhorse VVDI Key Tool Plus supports adding new keys for BMW M4 2017 FEM/BDC system on bench successfully.

Here is a quick demonstration:

1. FEM/BDC Programming

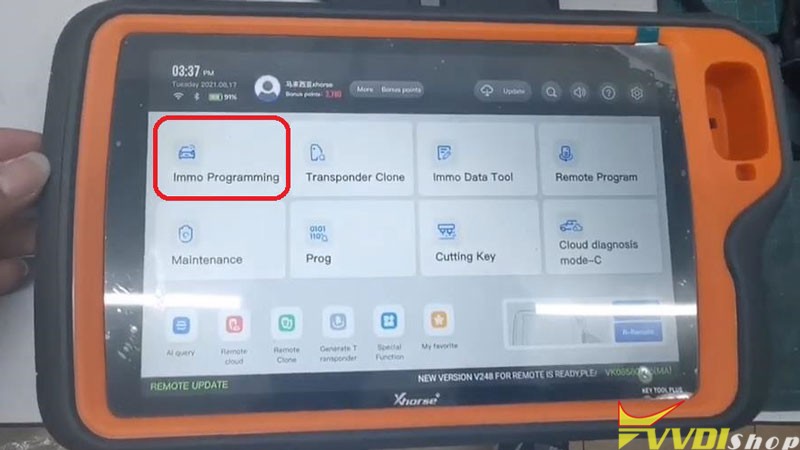

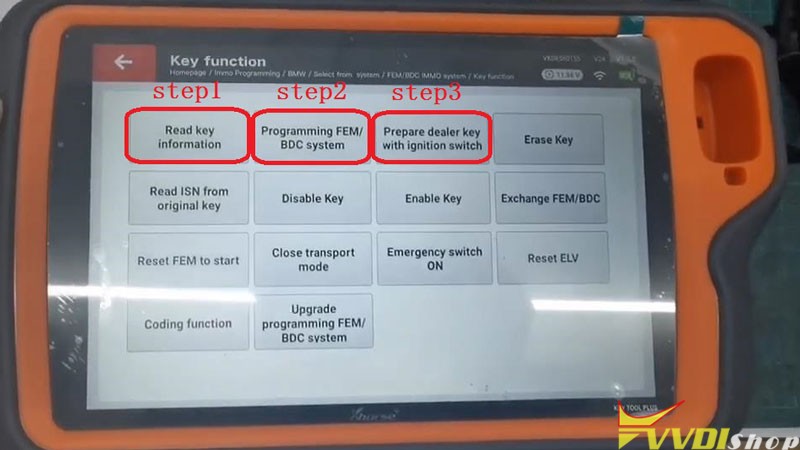

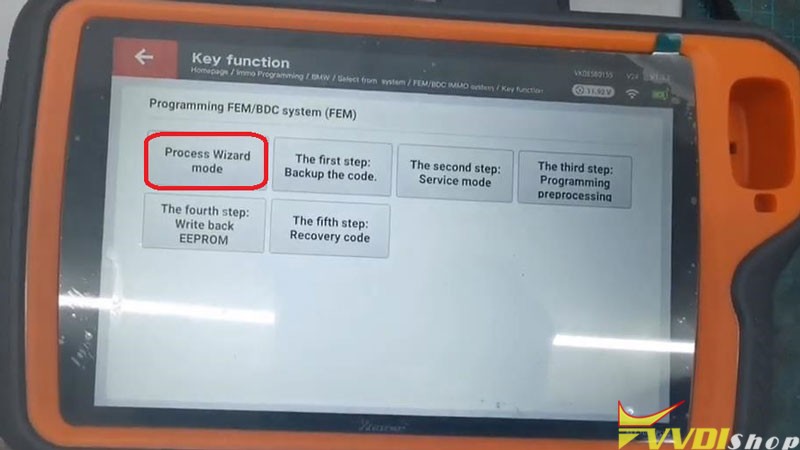

Immo programming >> Europe >> BMW >> Select from systems >> FEM/BDC IMMO system >> Key function >> Start programming >> Read key information >> Continue >> Continue >> Programming FEM/BDC system >> Process Wizard mode >> Begin

Reading coding…completed.

• Read & save EEPROM data

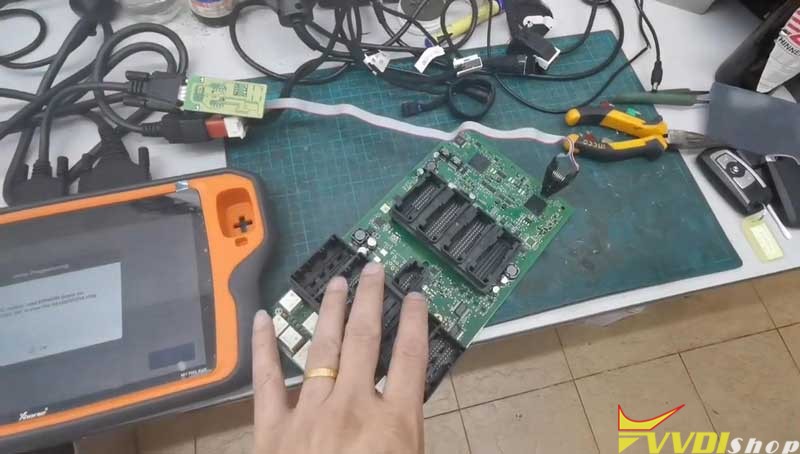

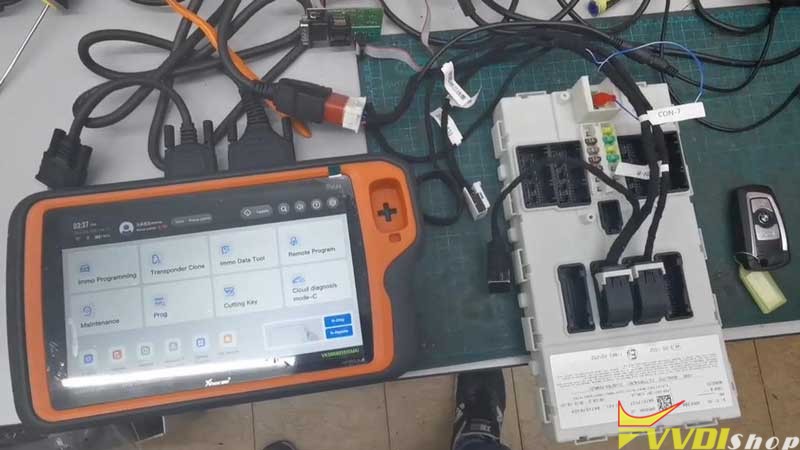

Open FEM/BDC module, read EEPROM dump via programmer. Press “OK” to view the 95128/95256 chip position.

Press “Yes” to continue.

Start to read original 95128/95256 EEPROM data.

Please confirm you have completed:

1. Disconnect FEM/BDC module power;
2. Disconnect the OBD connection between the VVDI Key Tool Plus and module;
3. Connect the adapter.

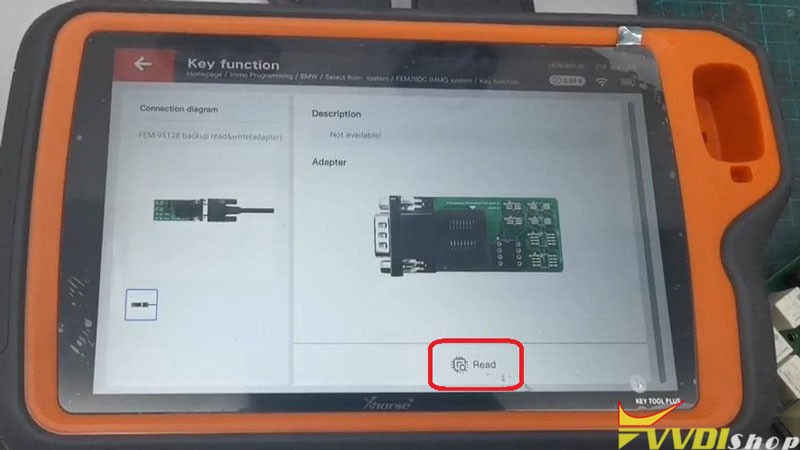

OK >> Read >> Continue

Read successfully.

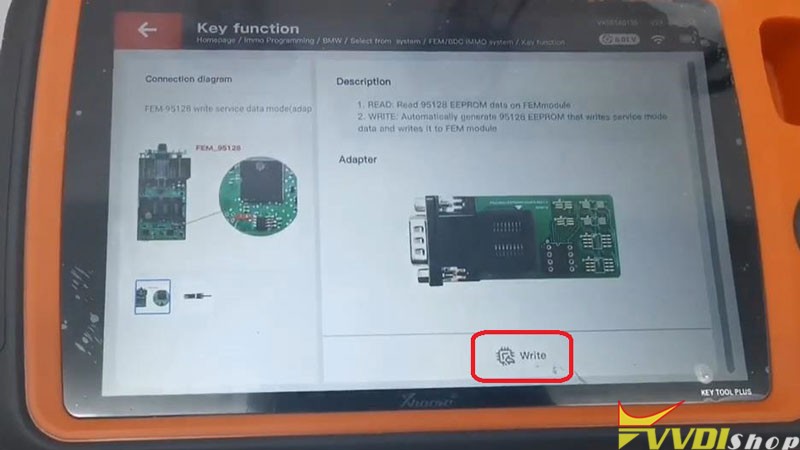

• Write EEPROM data

Make sure the adapter is connected properly, press “OK” to start to write service mode EEPROM.

Write >> Continue

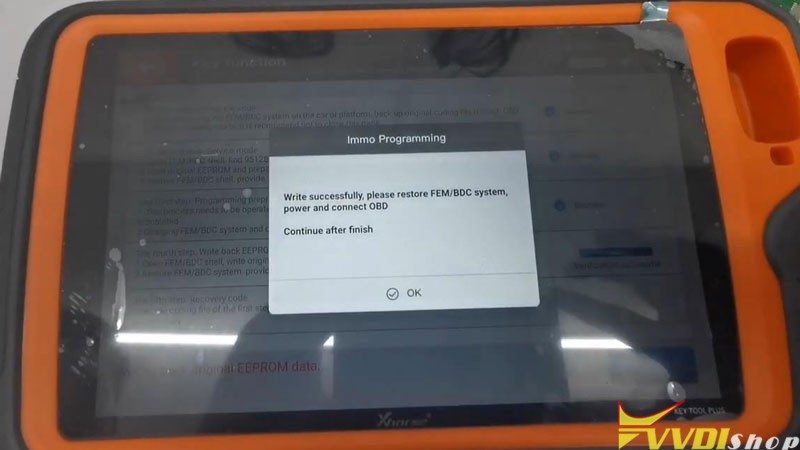

Please restore FEM/BDC system, provide +12v and connect OBD, press “Yes”.

Open FEM/BDC shell, write the original EEPROM data to 95128/95256 chip, press “Yes”.

Start to write back original 95128/95256 EEPROM data.

Please follow the prompts to operate.

Write >> Continue >> OK

Write successfully.

Do you want to verify the write coding? Yes

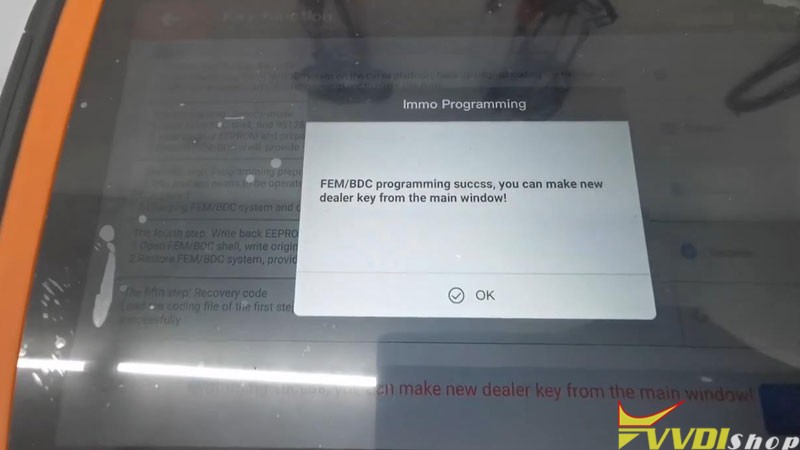

FEM/BDC programming success, you can make new dealer key from the main window!

2. Program New Key

Prepare dealer key with ignition switch >> Select a blank key position: Key 4 >> Have a working key, use this key switch ignition on then click this item

Insert working key to ignition switch.

Record the key information, press “OK”.

Insert the new key into ignition or keep the new key close to emergency start position of the vehicle.

Key learn success!

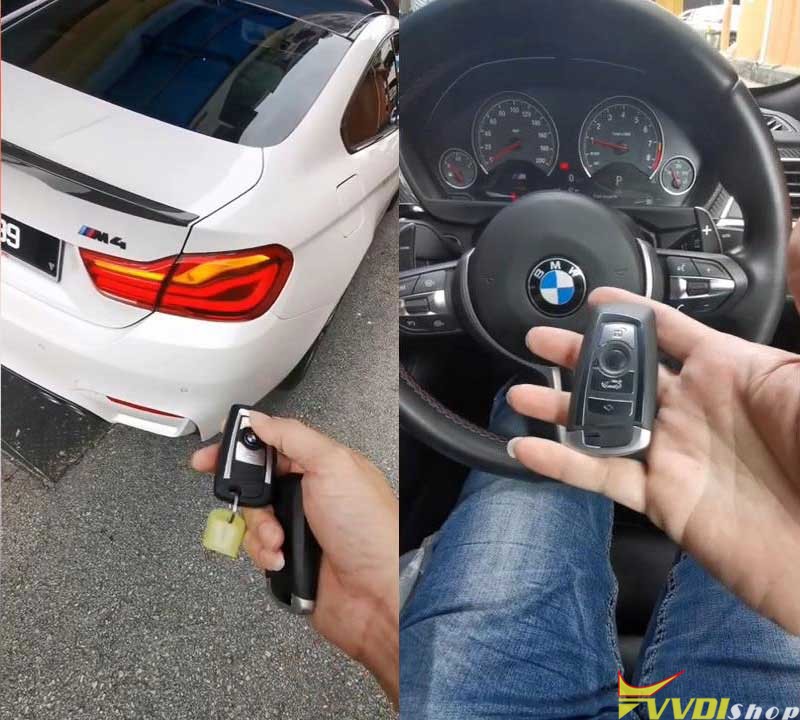

3. Test Key

Both the original key and new key can start the engine, and the remote are workable.

This is using Xhorse Key Tool Plus to program a BMW M4 2017 new key successfully.

https://www.vvdishop.com/

Xhorse Key Tool Plus New Adapter are coming

 Xhorse Solder Free Adapters bring convenience for locksmiths to greatly improve efficiency when key programming. With the adapters, no longer need disassembly and soldering, which will save much time for daily jobs.

Now, Solder Free Adapters and cables are available!

Xhorse has released nearly 100 adapters and cables that can apply to VVDI Key Tool Plus & Mini Prog. Covering BMW, Mercedes Benz, Volkswagen, Honda, Volvo, Porsche, Land Rover, Audi, Delphi for IMMO or ECU instruments.

Where to check how the Solder Free Adapters work?

Download Xhorse app on a phone, then go to “Mini Prog” function page for a look.

As below are the current optional adapters and cables. Some were sold in set and some can be sold separately. Please contact Vvdishop.com for the purchase information if in need.

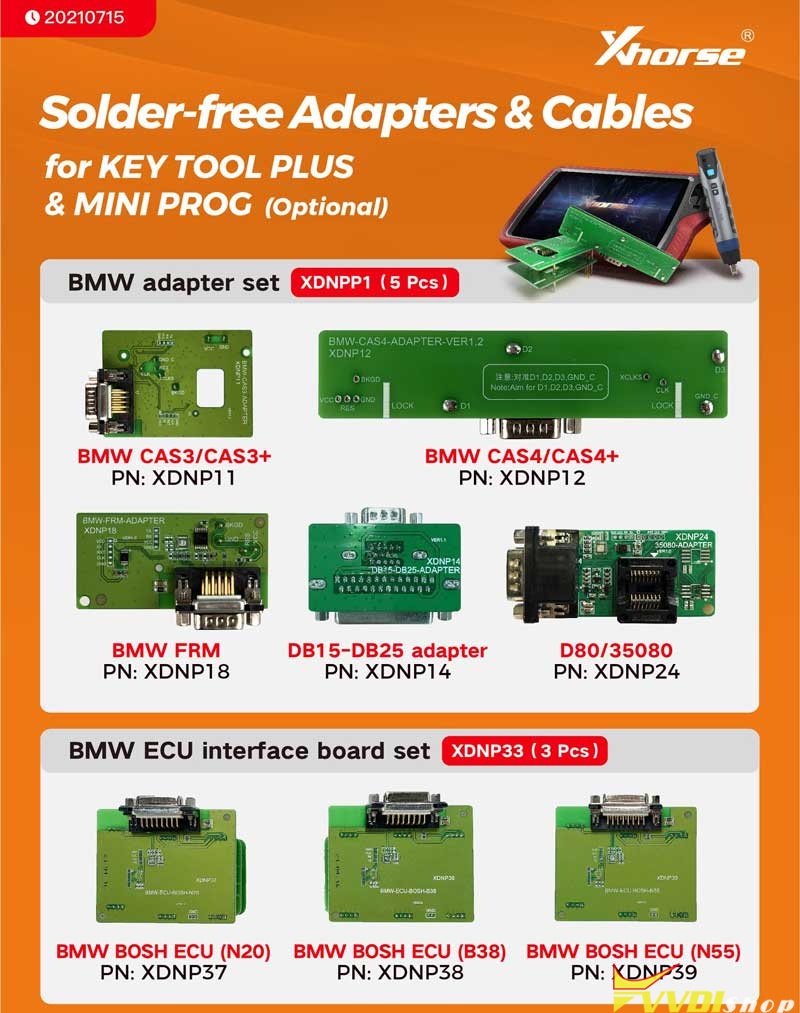

• BMW Adapter Set(XDNPP1, 5pcs)

BMW CAS3/CAS3+, PN:XDNP11;

BMW CAS4/CAS4+, PN:XDNP12;

BMW FRM, PR: XDNP18;

DB15-DB25 adapter, PN: XDNP14;

D80/35080, PN: XDNP24.

• BMW ECU Interface Board Set(XDNP33, 3pcs)

BMW BOSH ECU(N20), PN:XDNP37;

BMW BOSH ECU(B38), PN: XDNP38;

BMW BOSH ECU(N44), PN: XDNP39.

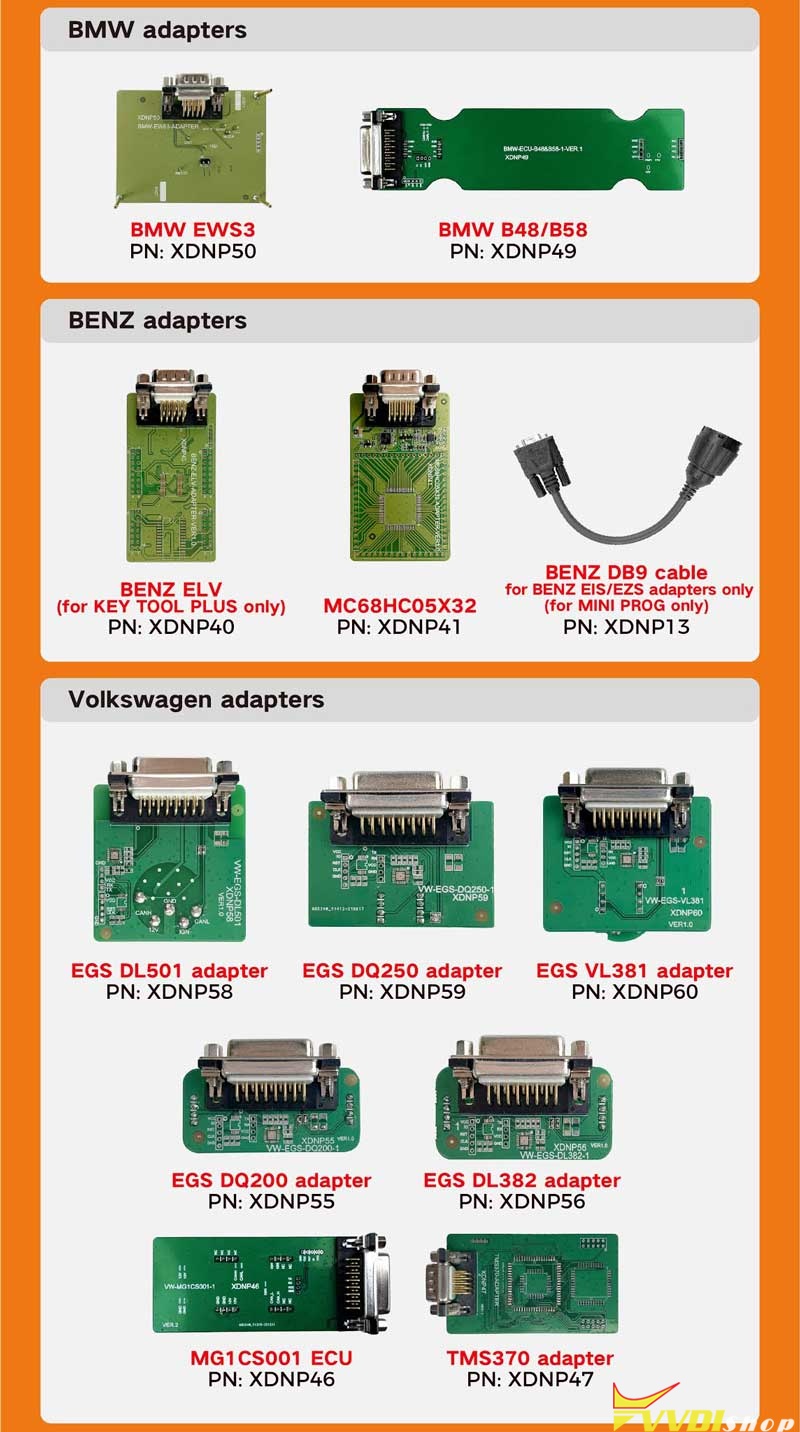

• BMW Adapters

BMW EWS3, PN: XDNP50;

BMW B48/B58, PN: XDNP49.

• BENZ Adapters

BENZ ELV(for Key Tool Plus only), PN: XDNP40;

MC68HC05X32, PN: XDNP41

BENZ DB9 Cable, for Benz EIS/EZS adapters only(for Mini Prog only), PN: XDNP13.

• VW Adapters

EGS DL501 adapter, PN: XDNP58;

EGS DQ250 adapter, PN: XDNP59;

EGS VL381 adapter, PN: XDNP60;

EGS DQ200 adapter, PN: XDNP55;

EGS DL382 adapter, PN: XDNP56;

MG1CS001 ECU, PN: XDNP46;

TMS370 adapter, PN: XDNP47.

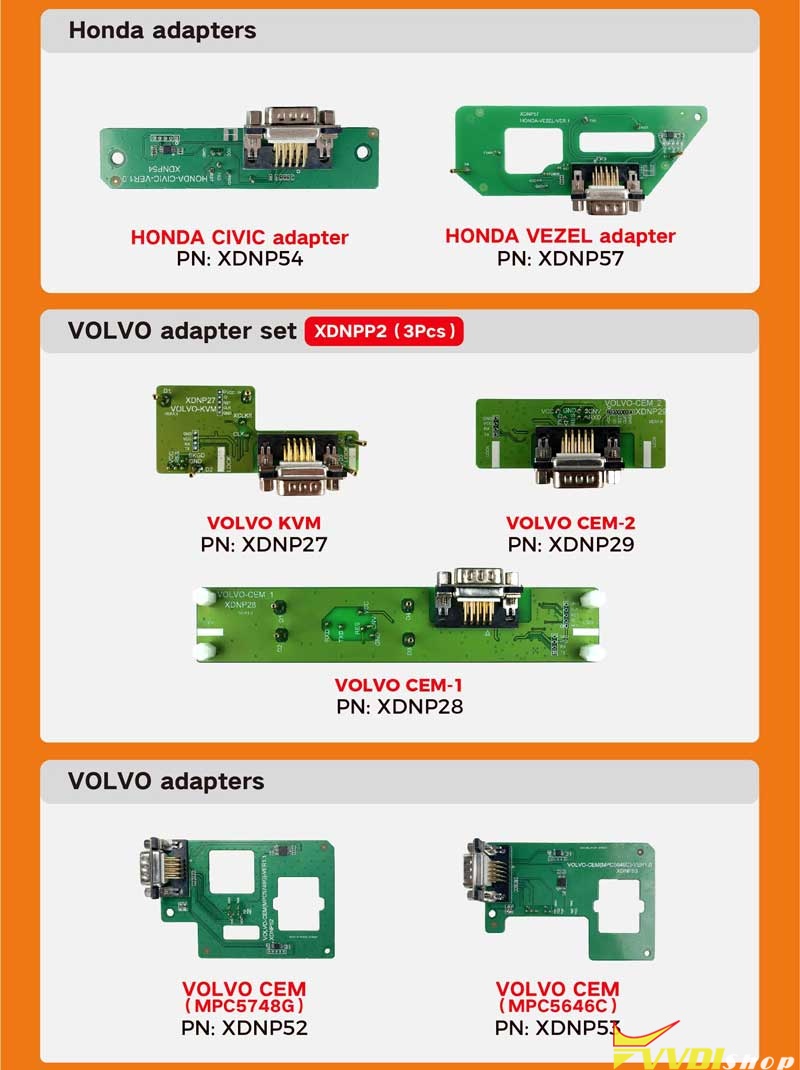

• Honda Adapters

HONDA CIVIC adapter, PN: XDNP54;

HONDA VEZEL adapter, PN: XDNP57.

• VOLVO Adapter Set(XDNPP2, 3pcs)

VOLVO KVM, PN: XDNP27;

VOLVO CEM-2, PN: XDNP29;

VOLVO, CEM-1, PN: XDNP28.

• Volvo Adapters

VOLVO CEM(MPC5748G), PN: XDNP52;

VOLVO CEM(MPC5646C), PN: XDNP53.

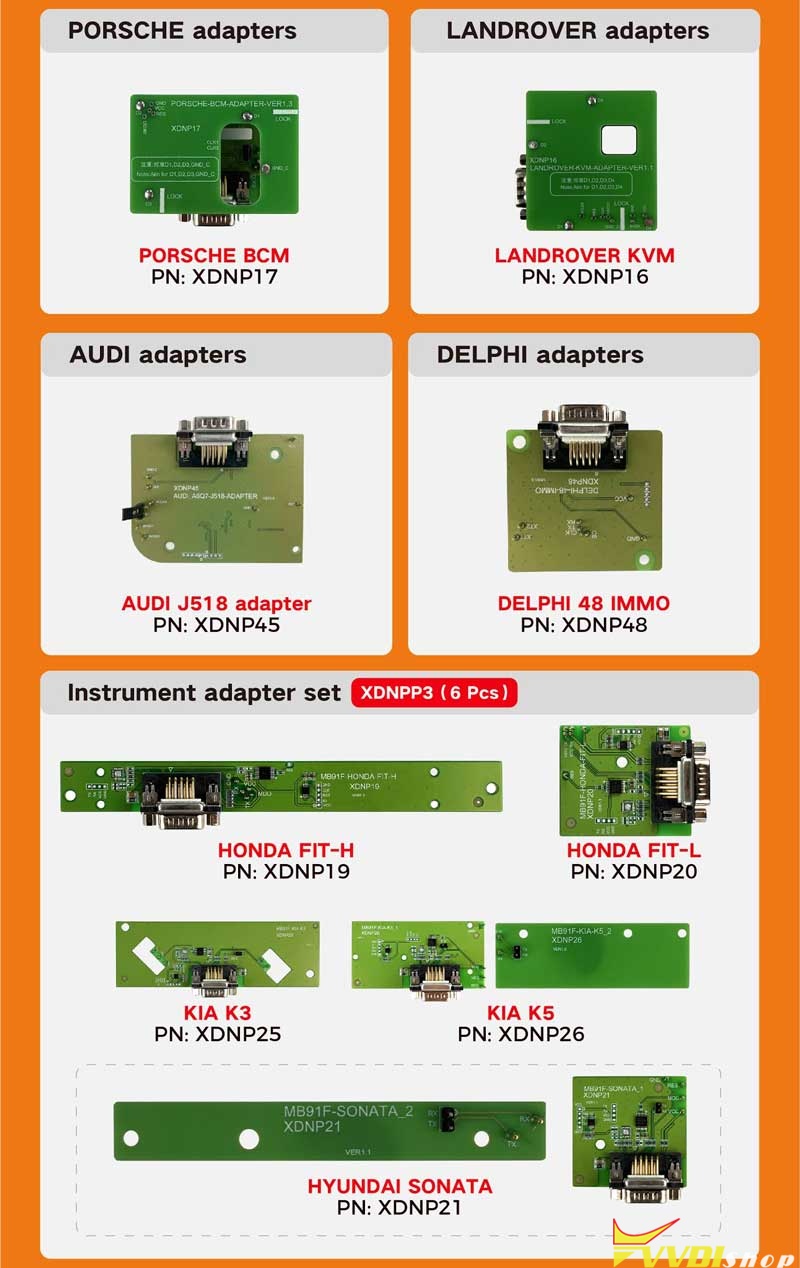

• Porsche Adapters

PORSCHE BCM, PN: XDNP17.

• Land Rover Adapters

LANDROVER KVM, PN: XDNP16

• Audi Adapters

AUDI J518 adapter, PN: XDNP45.

• Delphi Adapters

DELPHI 48 IMMO, PN: XDNP48.

• Instrument Adapter Set(XDNPP3, 6pcs)

HONDA FIT-H, PN: XDNP19;

HONDA FIT-L, PN: XDNP20;

KIA K3, PN: XDNP25;

KIA K5, PN: XDNP26;

HYUNDAI SONATA, PN: XDNP21;

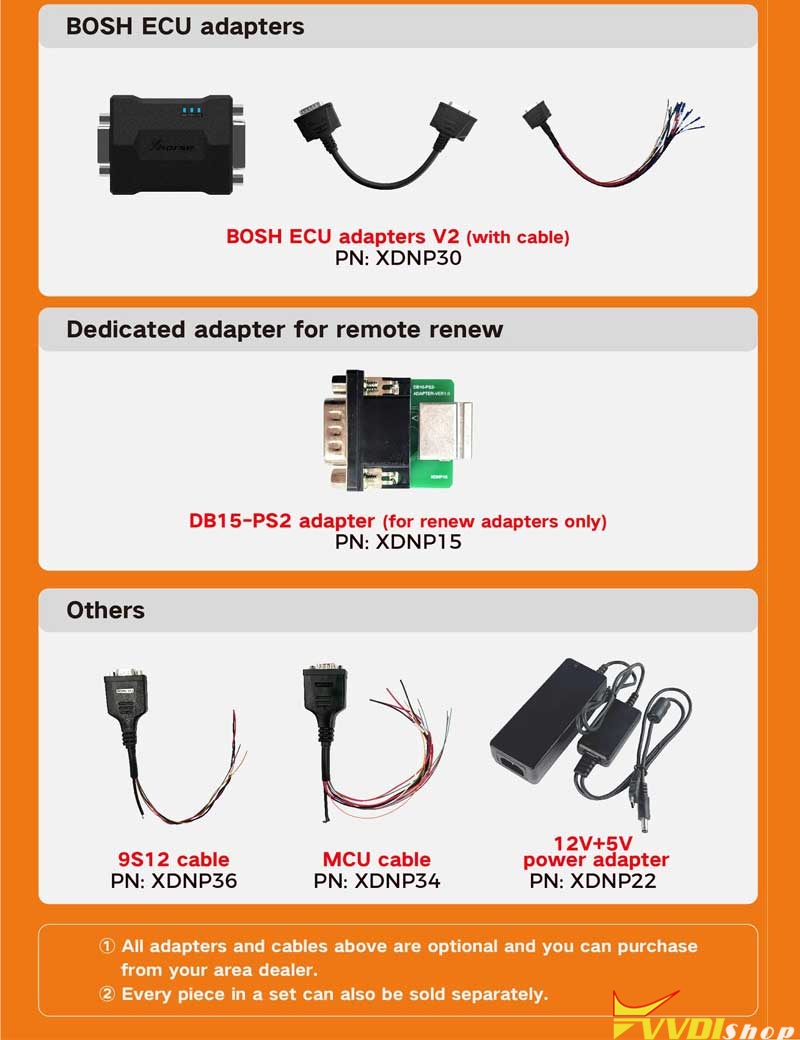

• BOSH ECU Adapters

BOSH ECU adapters V2(with cable), PN: XDNP30.

• Dedicated Adapter For Remote Renew

DB15-PS2 adapter(for renew adapters only), PN: XDNP15

• Others

9S12 Cable, PN: XDNP36;

MCU Cable, PN: XDNP34;

12V+5V power adapter, PN: XDNP22

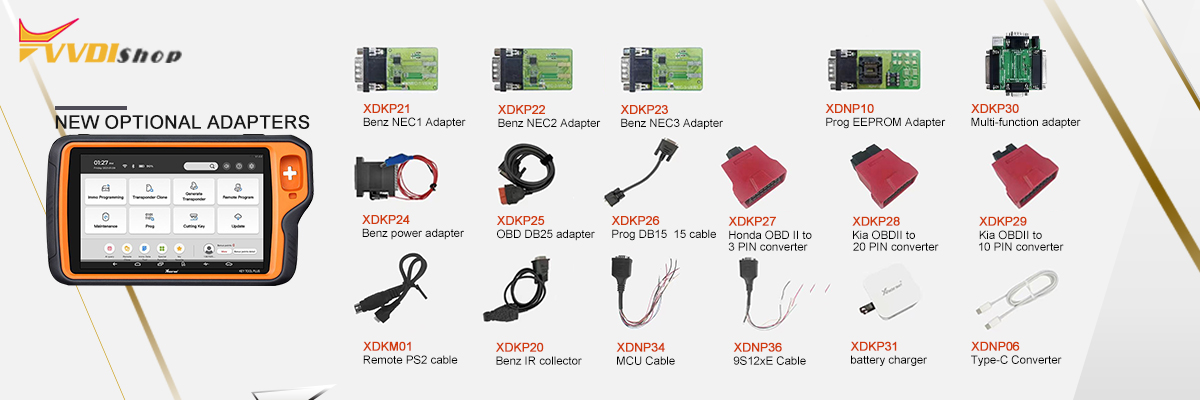

 xhorse key tool plus accessories adapter can be purchased alone as well:

Including:

XDKP21 Benz NEC1 Adapter
XDKP22 Benz NEC2 Adapter
XDKP23 Benz NEC3 Adapter
XDNP10 Prog EEPROM Adapter
XDKP30 Multi-function adapter
XDKP27 Honda OBD II to 3 PIN converter
XDKP28 Kia OBDII to 20 PIN converter
XDKP29 Kia OBDII to 10 PIN converter
XDKP24 Benz power adapter
XDKP25 OBD DB25 adapter
XDKP26 Prog DB15 15 cable
XDKM01 Remote PS2 cable
XDKP20 Benz IR collector
XDNP34 MCU Cable
XDNP36 9S12xE Cable
XDKP31 battery charger
XDNP06 Type-C Converter

More adapters and cables are coming soon…

https://www.vvdishop.com/

Xhorse Key Tool Plus Program Range Rover 2016 Key via OBD

 Xhorse VVDI Key Tool Plus Pad is able to add a new smart key for 2016 Range Rover via OBD without assembly successfully.

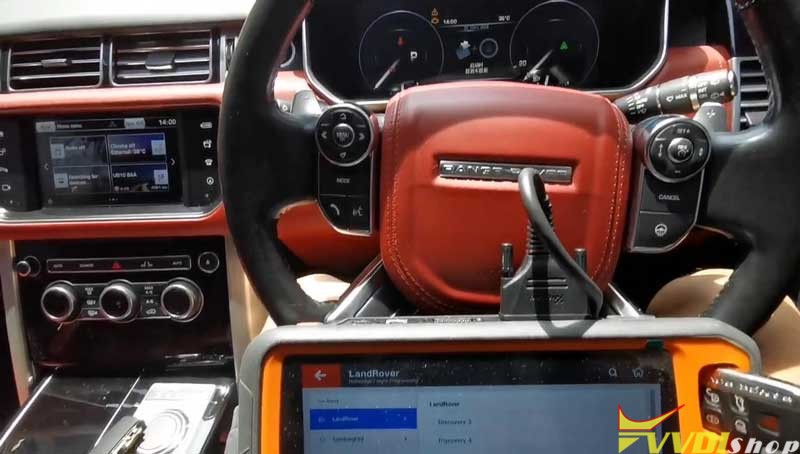

Plug VVDI Key Tool Plus connector into OBD port, press

Immo programming >> LandRover >> LandRover(2015-2018) >> OBD matching without disassembly >> Start programming >> Smart key recognition

Put the original working key into Key Tool Plus coil, press “OK”.

To check the key ID: 1C043035

Select “Smart key adding/all key lost”.

Note: key adding will not delete the programmed key

OK >> OK

Do not remove the original working key, press “OK”.

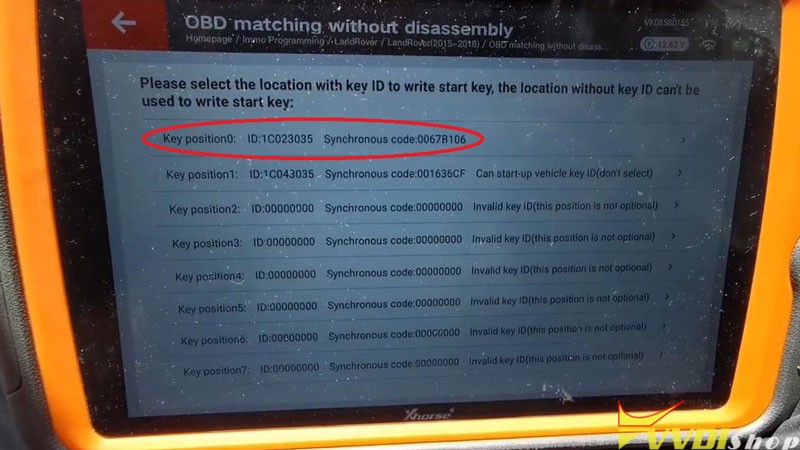

Select a key location with Key ID to write: Key position 0

Put the new key to be programmed into Xhorse Key Tool Plus coil, press “OK”.

Programming success.

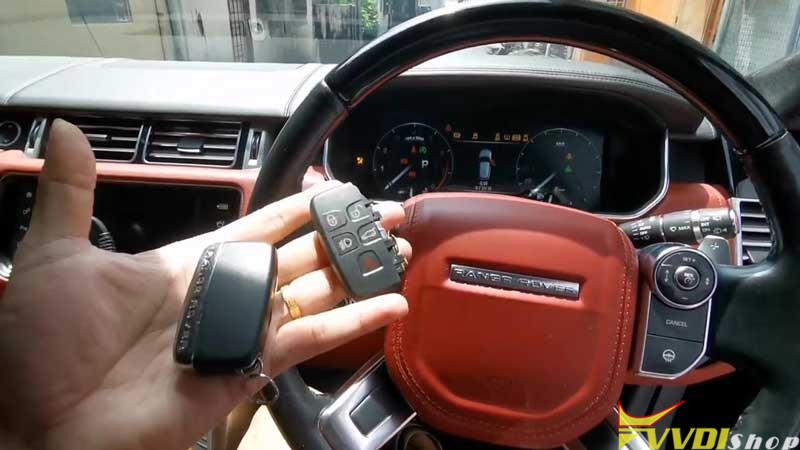

Let’s test the keys, both of remotes are fine, and can start the engine.

Done!

Programming a new 2016 Range Rover key with VVDI Key Tool Plus is easy to be done in 2 minutes

https://www.vvdishop.com/

Xhorse VVDI Prog Failed to Read Opel mcu Tms370 Solution

With the help of vvdishop.com engineer, my problem was settled.

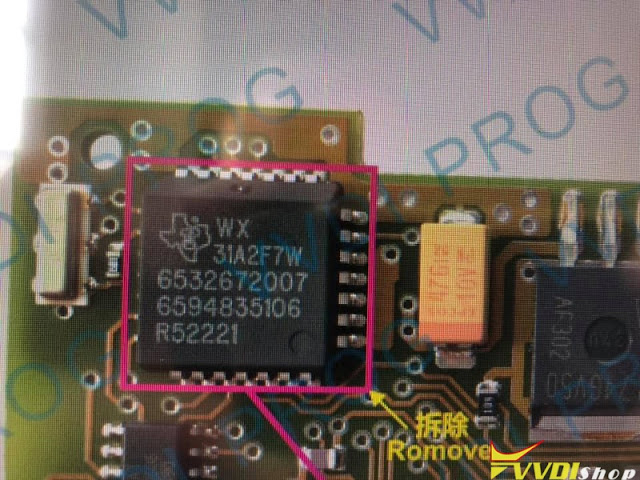

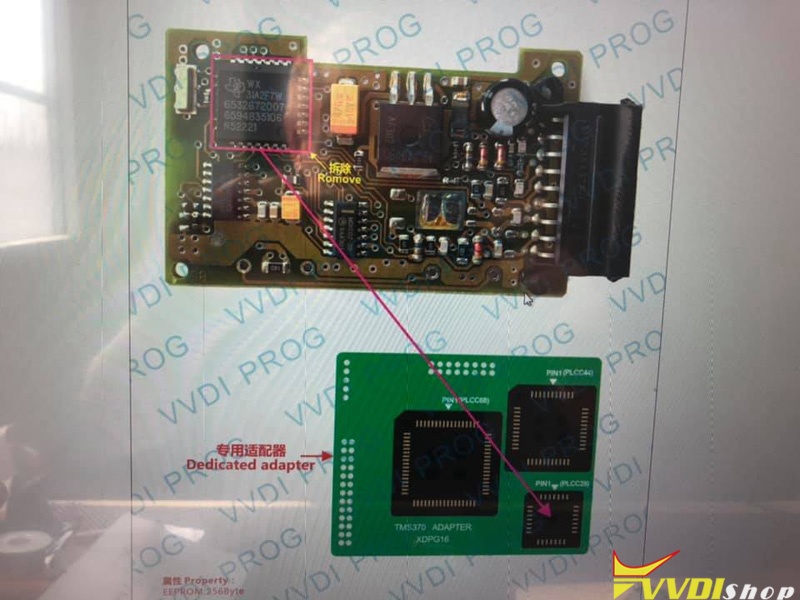

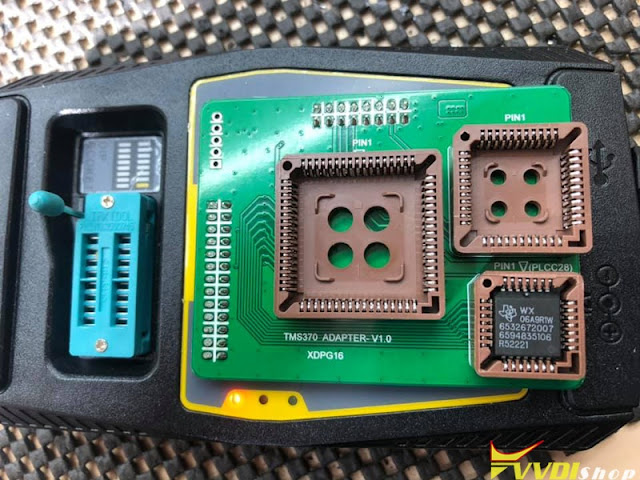

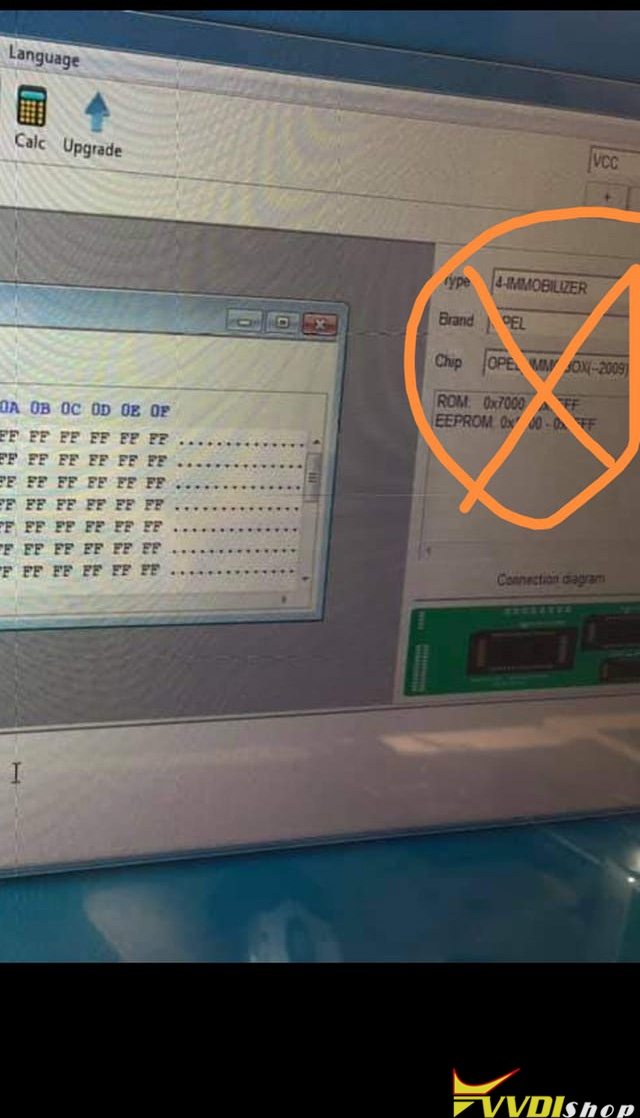

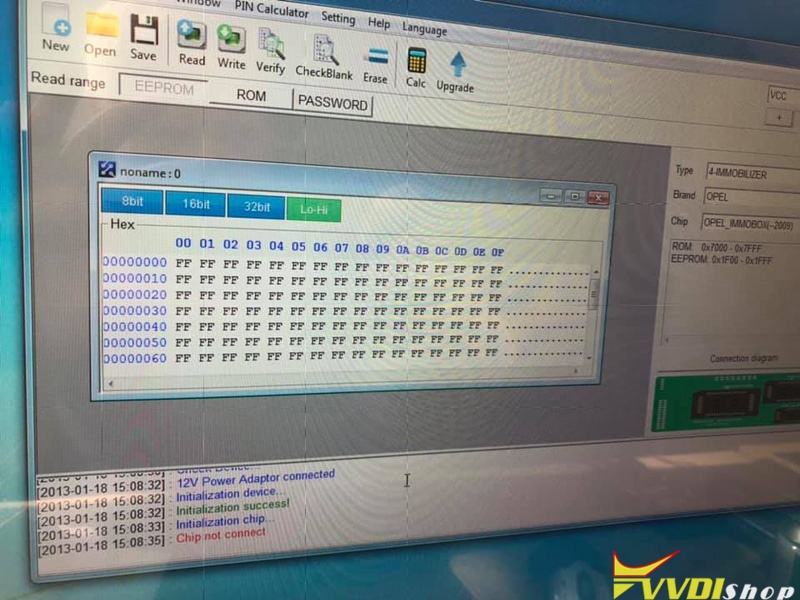

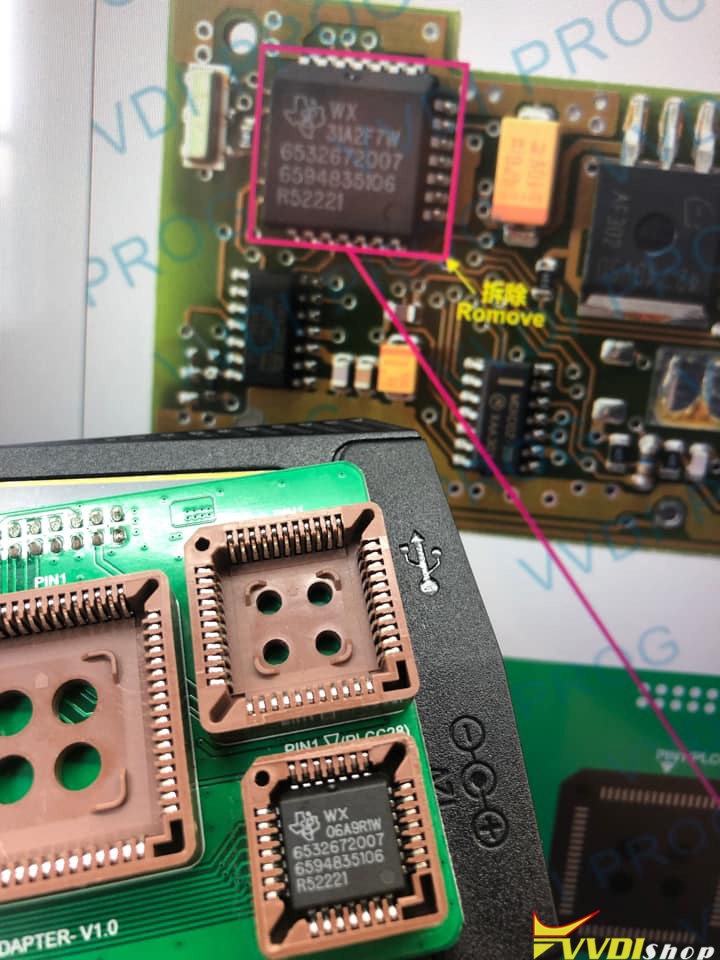

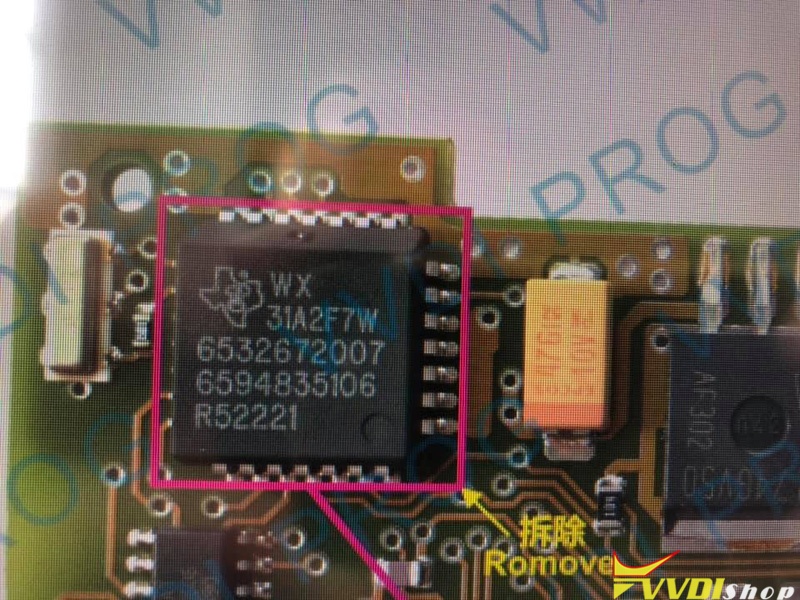

The problem goes like this: xhorse vvdi prog said chip not connected when i tried to read mcu Tms370 from an Opel 2008.  I did desolder chip onto the TMS370 adapter.

Have tested everything possible now. cleaned 100 times but no success. and EPROM is exactly the same as vvdiprog shows

VVdishop.com solution:

Connection is not the problem.  You use Opel Immo menu. It is wrong. Don’t put 12v.

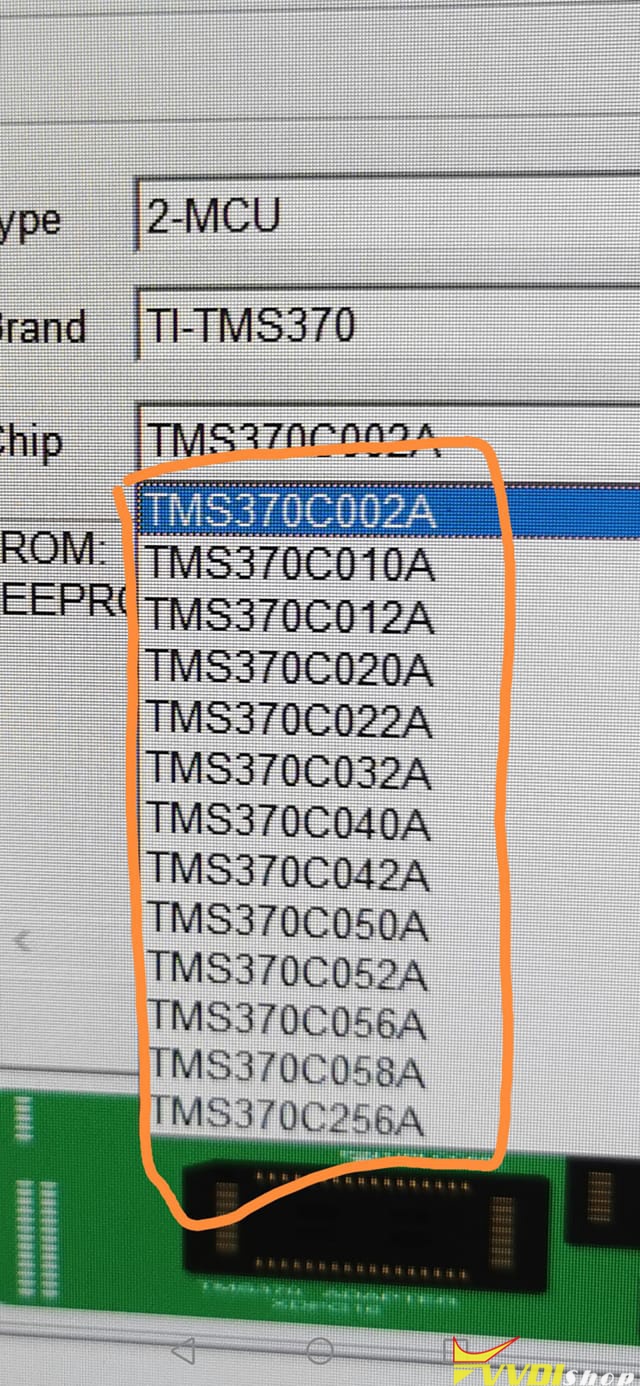

Select mcu tms370 it will work.

It work. Xhorse engineer tried it before.
