Condor XC-Mini Key Cutting Update to V4.0.2

Dear users, this is Xhorse new update Kit for online updating.
currently support update devices as follow:
VVDI KEY TOOL, VVDI PROG, VVDI2, VVDI MB TOOL
VAG Iscancar VAG MM-007   Condor XC-MINI（KM02/KM03） Condor XC-007 key cutting machine
Notes: for VVDI KEY TOOL please use new update Kit to update, don’t use old version software.

Free download Xhorse Update Kit

Update today:

Condor XC-Mini update to V4.0.2

Condor Mini (KM03) 4.0.2
+ Add universal key decode function
+ Add M2-D function
+ Add motor sensor testing function
* Modify probe/cutter detection
* Fix machine may crash error problem
* Fix HU49 key decode error
* Fix Fix HU66 cutting speed issue

Will VVDI MB renew original Mercedes NEC or BGA key?

As titled, possible to renew original keys for reuse with VVDI MB BGA Tool key programmer? and how?

Solution:

If it is nec key,  YES
if BGA key, will not.

lot of tools do it renew
vvdi mb bga,ak500, cgdi mb…

How many types of Mercedes NEC key?

v51 v57

v28 v35 v40 v51 v57

v03 v06 v07 v08 v09 v61

v28 v35 v40 v51 v57

v03 v05 v06 v07 v08 v09 v59 v61

Here’s the guide on renewing NEC 57 key with VVDI MB Tool.

Put the NEC57 key chip on VVDI NEC Key Adapter

Put NEC Key Adapter on VVDI MB

Connect VVDI MB Tool with laptop and open latest VVDI MB software.

Now you can start to virgin Mercedes NEC57!

Select mode “NEC Adapter” then choose type “V51, V57”.

“Identification key”

VVDI MB will read NEC V57 key info successfully!

Key number is 1.

“Renew” to virgin NEC V57 key.

Wait a while key erasing complete 100% and success!

“Identification key” again and read key info to check if key is successfully erased.

And you can see now key information is blank and things done!

Done!

http://blog.vvdishop.com/will-vvdi-mb-renew-original-keys-for-reuse/

VVDI key tool clone remote key for Renault Duster

Renault Duster remote cloning using Xhorse VVDI Key tool remote maker. Suitable for Renault Logan, Renault Duster etc.

What you need:

Original key

XHORSE DS Type Wireless Universal Remote Key 3 Buttons

VVDI Key Tool remote generator

Easy steps goes below:

In VVDI key tool, select Remote Clone->Special Clone

set frequency to 434.00 and select Clone

Clone success

Install battery and re-install universal remote key

Test the cloned remote key.

Working !!!

www.vvdishop.com

How to Program VW NEC+35XX All Keys Lost by VVDI2 VAG

Guide to program VAG 4th generation immobilizer Magneti Marelli engine NEC+35XX all keys lost with Xhorse VVDI2 VAG key programmer.

Tools used:

VVDI2 VAG

VVDI Prog programmer

VVDI2 Copy 48 Transponder Authorization (English version is not yet available)

VVDI2 data collector

Xhorse ID48 Chip (OEM key)

Guide:

Step 1: Read 95320 eeprom data

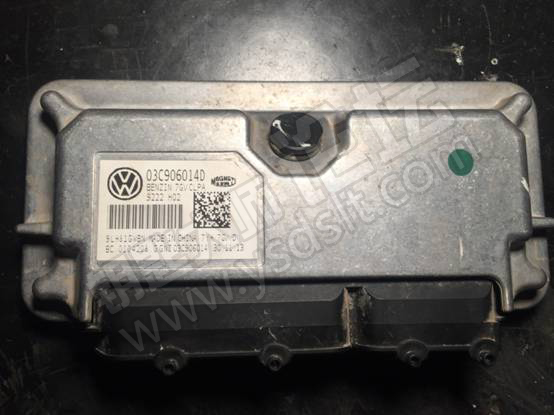

Disassemble ECU

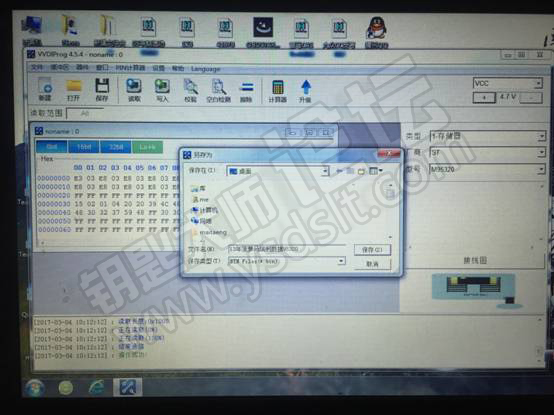

Read CPU IC 95320 eeprom data with VVDI Prog and save data

Step 2: Calculate CS and PIN

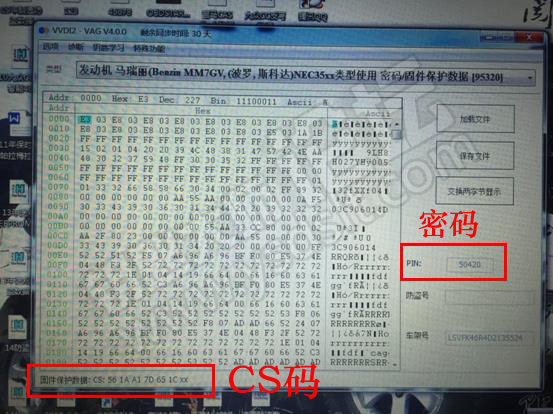

Open VVDI2 VAG software->Special Function-> EEPROM Dump Tool->Benzina MM7GV (Polo, Skoda) NEC35XX Dump 95320->Upload data

Calculate CS and PIN

Take a screenshot or write down CS and PIN

Step 3:  Program Dealer Key

Re-install ECU back to vehicle

Connect VVDI2 key programmer with vehicle

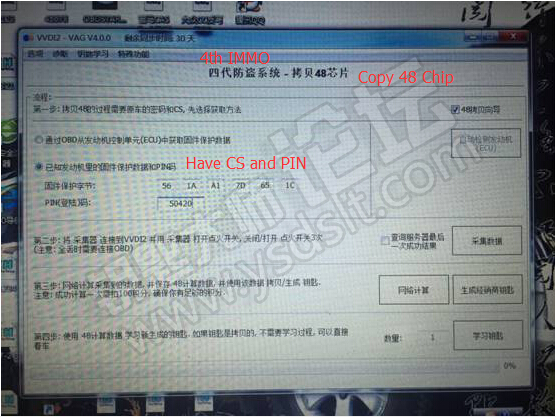

Select Key Learn->4th Immobilizer->Copy ID48 transponder

Select 2nd option: having dump CS and PIN

Manually enter CS and Pin calculated from Step 2

Select Collect data

Must connect laptop with internet to calculate key data

Then save data

Data generated can be used to copy key, generate key, generate dealer key and learn key.

Here all keys have lost, so press NO to continue

Put OEM key (ID48 chip) into VVDI2’s coil and click on YES

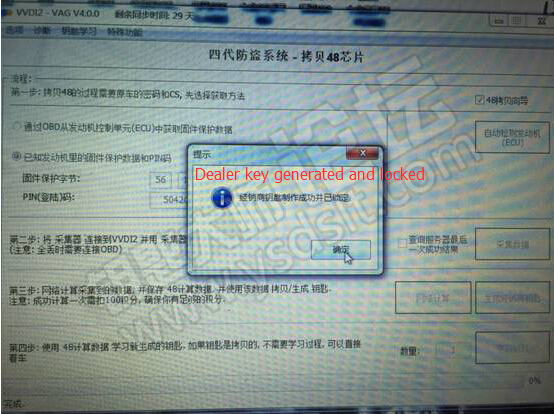

Generated dealer key completed and locked

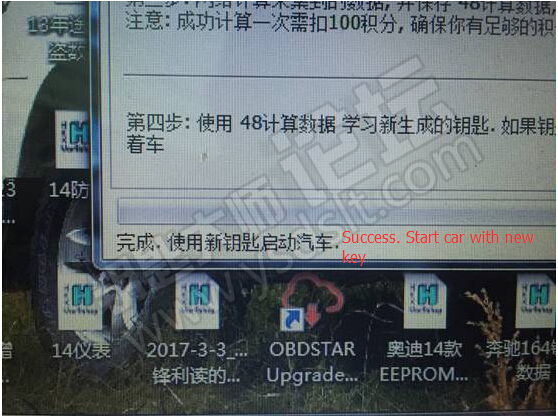

Program key success. Try to start car with the new key.

Done!

www.vvdishop.com

http://blog.vvdishop.com/program-vw-4th-immo-nec35xx-all-keys-lost-with-vvdi2-vag/

Program Porsche Cayenne 08 All Keys Lost with VVDI2

Here’s the demo guide on how to program new key for Porsche Cayenne when all keys lost.

Fold keys are divided into two frequency, 315M is the ordinary fold, and 433M smart key, both of them can use write start all key lost. Below is operation procedure in detail.

For Porsche Cayenne Key Programming:

1.Dismantle the KESSY Module

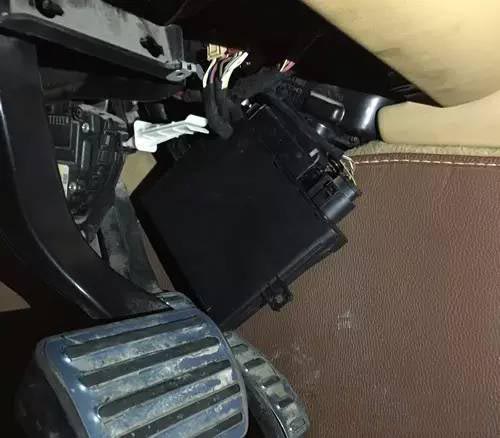

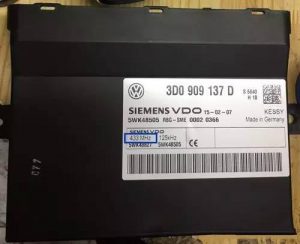

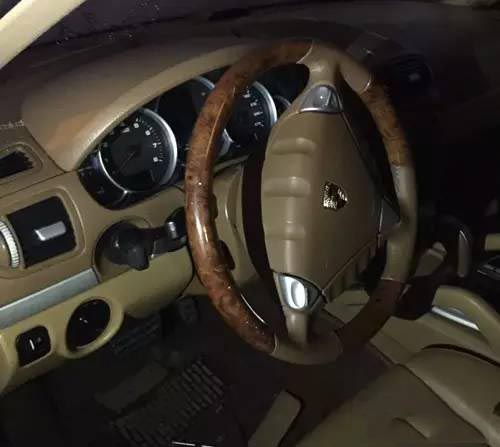

Under the steering wheel to find KESSY computer, dismantle the KESSY Module. As shown below, a black box.

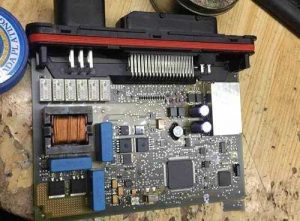

Open the shell, in the computer board near the CPU to find 8 pin chip, model num is 93C86. Use programmer, VVDI Prog, Xprog etc to read the data.

2.Write start key

Use TM100 Transponder Key Programmer, VVDI or other wirte start device to load the data that read from 93C86 chip. The following I use VVDI make a demo:

1）Open the VVDI2 Key Programmer Software,then select “Immo data processing tool”,”Porsche”, Car Model”Cayenne”,type”93C86″

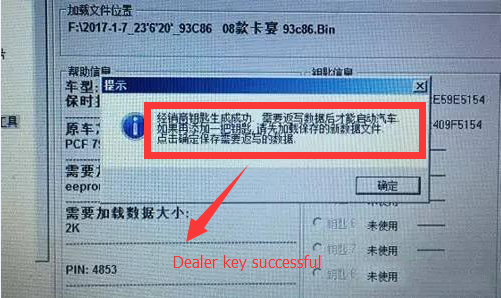

2）Then load in the data form 93C86 Chip,VVDI2 will display the key information include “ID” and “Key Number” and so on.Put a new key into the VVDI2 coil.Click to generate dealer key,the device will generate a new 93C86 file(save it),and it will remind you that”the dealer key generate successful”.

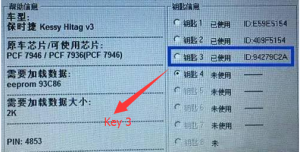

3)Load the new 93C86 file into Xhorse VVDI2 to check 3 key information in the data as shown below.

4) Use the VVD2 write the new 93C86 file back in 93C86 chip and weld it back on KESSY Computer，assemble KESSY on your car.

Done.

Reference:

How To Add New Key For Porsche Cayenne

For Porsche Cayenne made before 2004.06:

Read out immobilizer PIN,and then short circuit pin 3 to pin 7 of OBD port with 5053.

Then you can start program key

For Porsche Cayenne made from 2004.06 to 2006:

Read the immobilizer PIN by programmer,but it can not program key by common key programmer.(Only by VVDI Programmer or Original manufacturer device)

For Porsche Cayenne made from 2007 to 2010:

Some Porsche Cayenne made during this period can do key programed by VVDI device.

And for others,you need to remove the ECU,disassemble the storager chip,near CPU,typed 95160.

Read out the data file by programmer.

Open the data file.

The pin code locate at section 040 and 060,12th and 13th byte. Convert the hex system to decimalism,then you get the PIN.

Note:Before you program for next key,insert the key to ignition and turn it the “ON” position,but do not start the engine,and wait for 3 seconds,then you will sound the “beep” of unlocking.

Turn off the ignition,and then you can start programming next key.

How to Calculate Porsche Cayenne PIN Code

If you ever programmed keys for Porsche Cayenne,it needs PIN code for programming. But in some situation,you can not read out the PIN code by Key Programmer.And you must to remove the ECU,and read out the data file from a chip 95128,and then calculate data file to obtain the PIN.And here’s the guide on how to calculate PIN code for Porsche Cayenne and Tiguan 2009.

For Posche Cayenne and Tiguan made after 2009,you must remove the ECU to get the PIN code.

How to calculate PIN code:

1. Remove ECU form vehicle

2. Locate the chip 95128 near the CPU,and remove the 95128 chip from ECU PCB by soldering iron.

3. Read out the data file from 95128,and save it on the laptop.

4. Calculate the PIN code from data file.

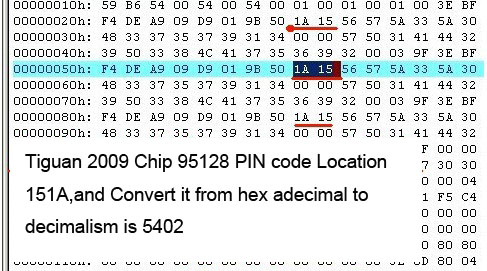

AS below show,the 1A15 is the pin code. Convert it from hex adecimal to decimalism is 5402.
