BMW FRM 2M25J 3M25J 9S12XEQ384 Pinout to VVDI Prog

Here’s the guide to restore the original eeprom from Dflash to repair BMW E-series FRM (BMW Footwell Module) module by using Xhorse VVDI Prog programmer.

Note:

VVDI Prog adds FRM-E-SERIES-XEQ384 and FRM-F-SERIES-XET512 read & write options since version 4.6.8 (check pinout connection to VVDI Prog in the end of the post).

Here takes an example on BMW E-series E71

Step 1: Read Dflash

Connect FRM module with VVDI-prog

Open VVDIprog software

Select MCU->Motorola -MC9S12->9S12XEQ384 unsecured

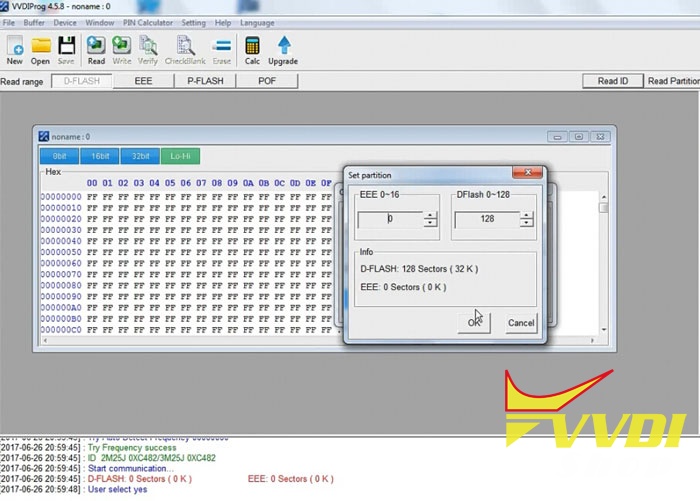

If vvdi prompts “Partition information error, please select the partition size manually”

Select the partition size EEE:0 sector, DFlash: 128 sectors (32K), press OK

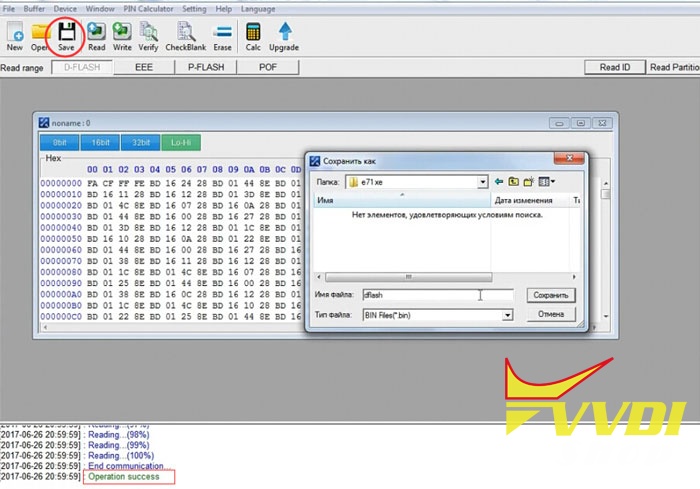

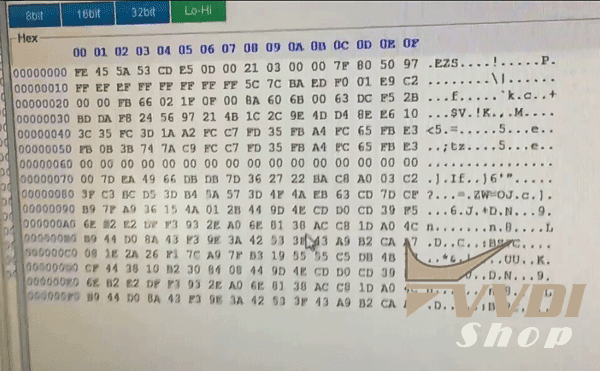

Read and then save Dflash, i.e E71 xe

Step 2: Dflash to Eeprom

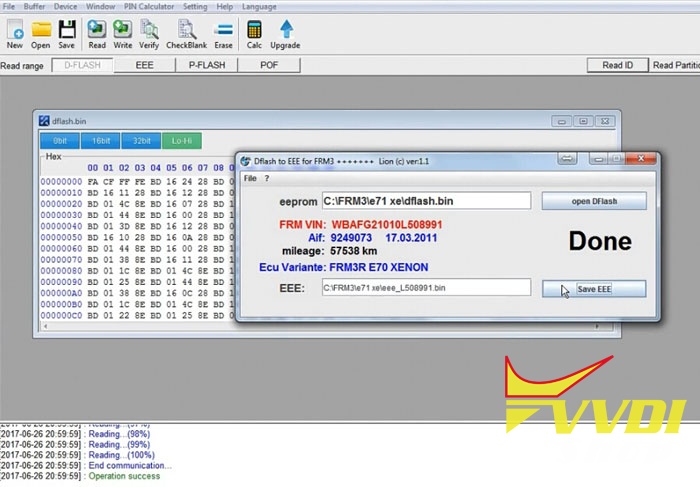

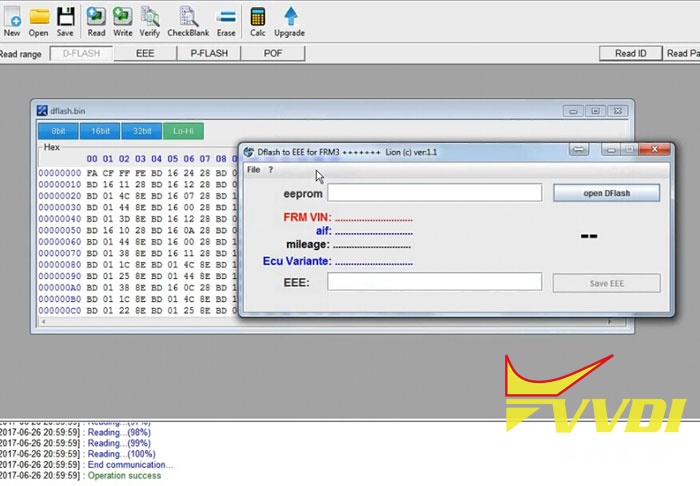

Open Dflash to EEE for FRM3 Software, upload Dflash data just read

Then convert Dflash to eeprom.

(You can use free online FRM3 D-Flash to EEPROM converter here as well: http://tlvps.tomvanleeuwen.nl/frm/)

Save eeprom, i.e: eee_L508991.bin

Step 3: Write EEPROM

Back to VVDI Prog software, select Type 8-Others->BMW->FRM E-series XEQ384

Click Write Partition (will erase Dflash and eeprom data)

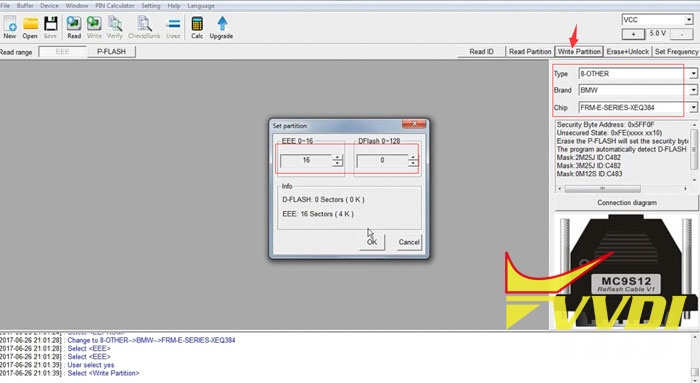

Write EEPROM partition to 16 sectors (4K), DFLASH: 0 sector

Open EEPROM data just converted from Dflash

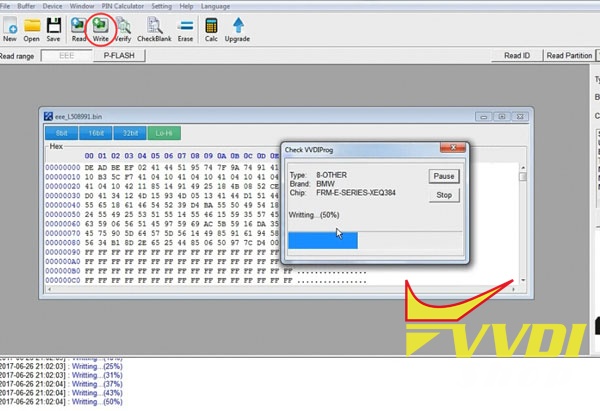

Click Write tab to write eeprom

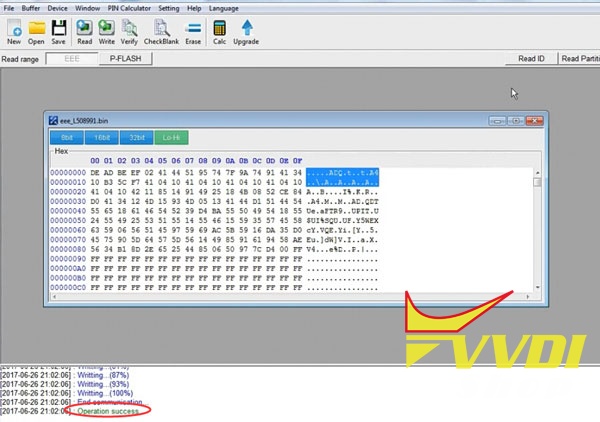

Reset FRM success.

Install FRM module back to vehicle.

BMW FRM 2M25J/3M25J(9S12XEQ384) pinout to VVDI Prog

BMW FRM F-series 2M25J (MC9S12XET512) pinout to VVDI Prog

www.vvdishop.com

http://www.vvdishop.com/service/how-to-reset-bmw-frm3-xeq384-with-xhorse-vvdi-prog-6060.html

VVDI Prog xhorse vvdi prog

Emily دوشنبه 24 اردیبهشت 1397 ساعت 13:15

0 نظر

Read BMW X6 2012 MEVD7XX ISN code with Xhorse VVDI2

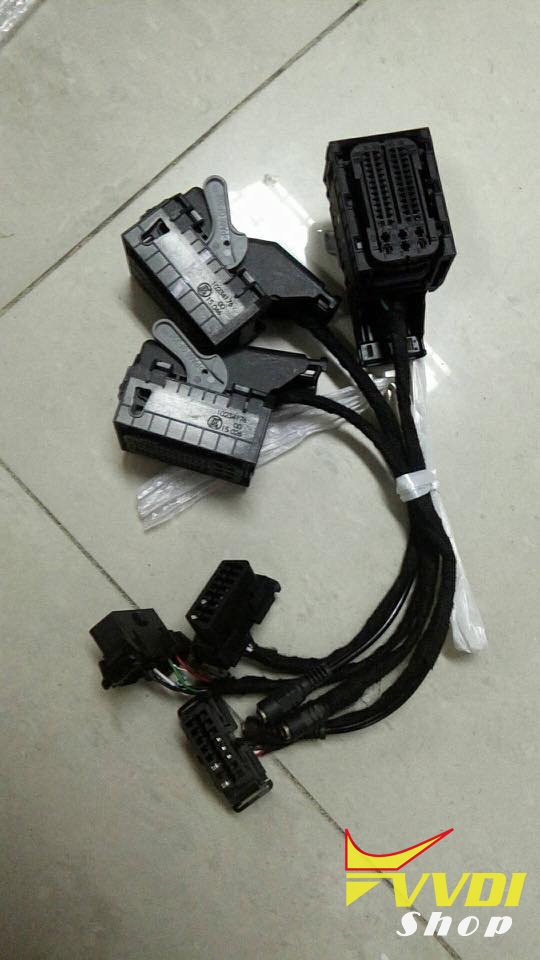

With BMW DME ISN cable set, you can read out BMW ISN code on bench without drilling hole for boot pin.

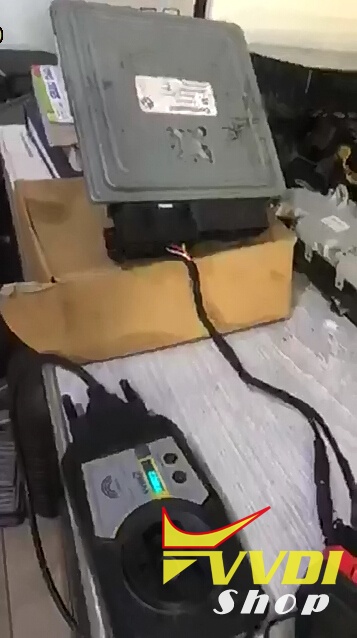

Connect DME ISN cable with engine computer ECU and Xhorse VVDI2 BMW key programmer.

Start VVDI2 BMW software
Choose Key Learn->ECU/CAS ISN
Click read, then processing.

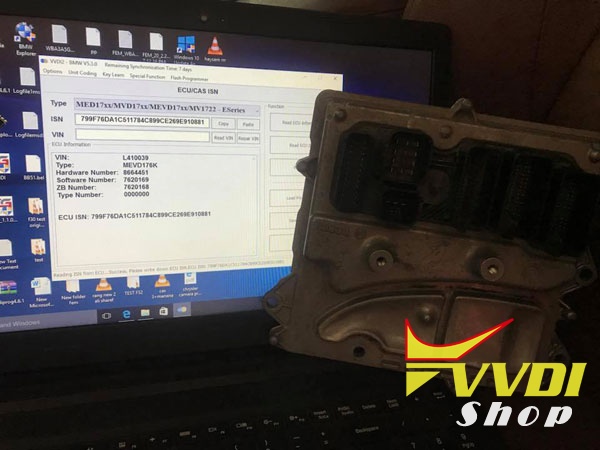

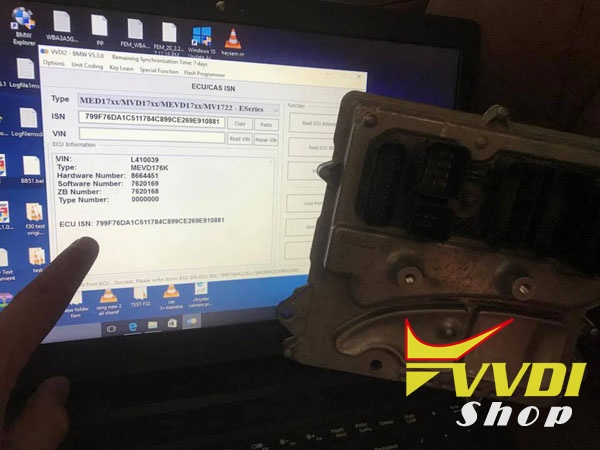

Get BMW ISN successfully

www.vvdishop.com

If you need BMW DME ISN cable, please contact:

Skype: VVDIfactory.com
Whatsapp: +86 13559259147
Email: sales@vvdishop.com

http://blog.vvdishop.com/read-mevd7xx-x6-2012-isn-code-by-vvdi2-and-dme-cable/

vvdi2 vvdi2 bmw

Emily جمعه 21 اردیبهشت 1397 ساعت 09:09

0 نظر

Condor XC-Mini Decode Lexus TOY48 and TOY40 Keys

Question:

Why condor xc-mini cannot decode lexus toy48 and toy40 keys?
i mostly cut lexus keys and i can’t decode it by condor mini..

Solution from Xhorse engineer:

Condor MINI key cutting machine usually decode/cut key as the standard thickness 3mm, if the key is single side(thickness no more than 3mm, such as 2.5mm or 2mm)
then you should add a shim(such as business card) under the key, let the key thickness more than 3mm(around 3mm).

www.vvdishop.com

http://blog.vvdishop.com/decode-lexus-toy48-and-toy40-keys-with-condor-xc-mini/

condor xc-mini

Emily پنج‌شنبه 13 اردیبهشت 1397 ساعت 12:15

0 نظر

Xhorse VVDI Prog Software Update to V4.7.0

Xhorse VVDI PROG programmer latest software version V4.7.0 released on April 27th, 2018.

VVDIProg 4.7.0 (2018-04-27)
This version DON’t need update firmware
Fix some bugs
1- Added
VVDI PROG USER MUNUAL 4.7.0 version in Doc folder

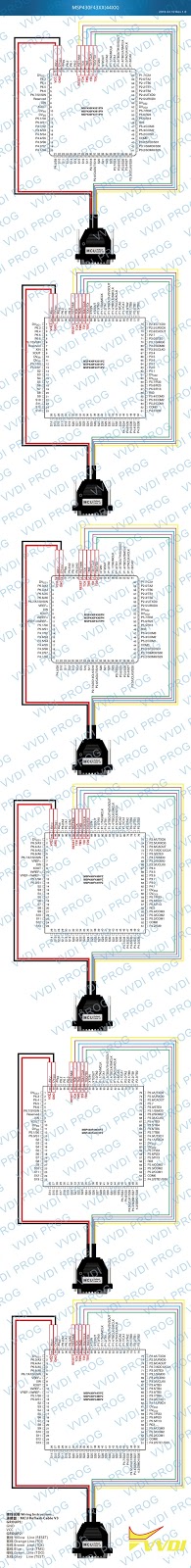

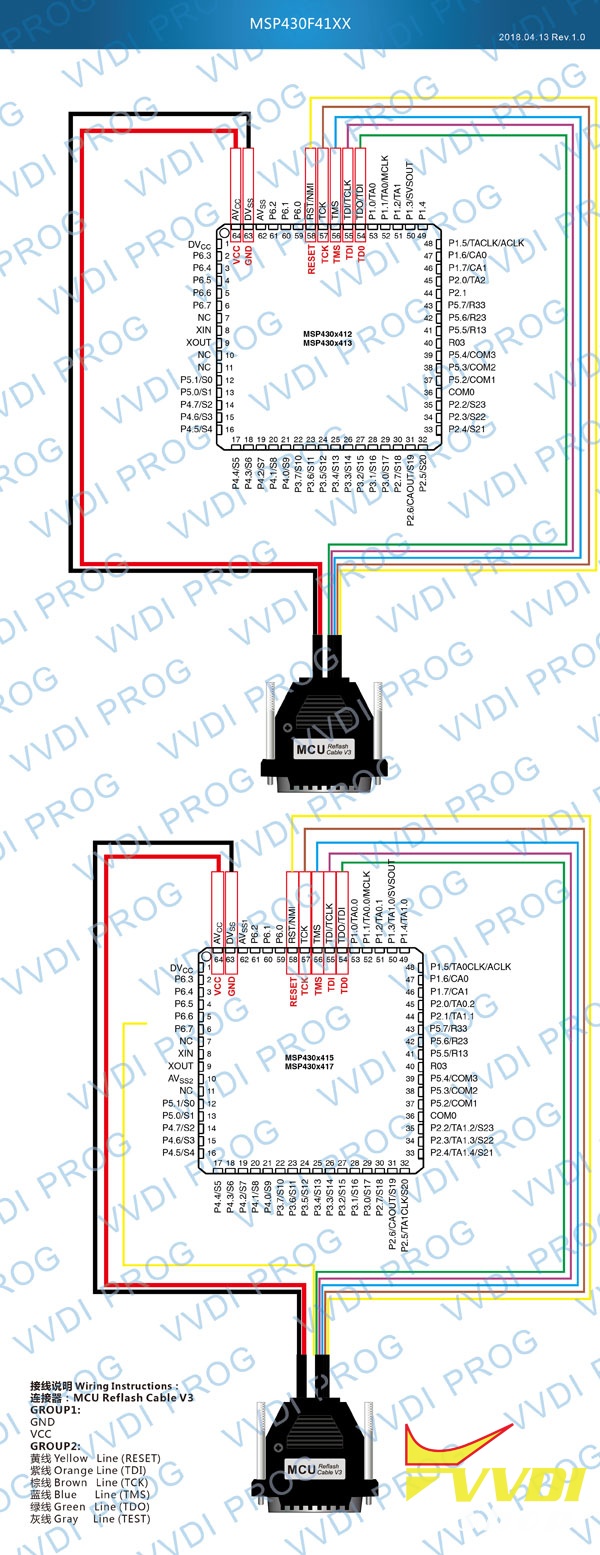

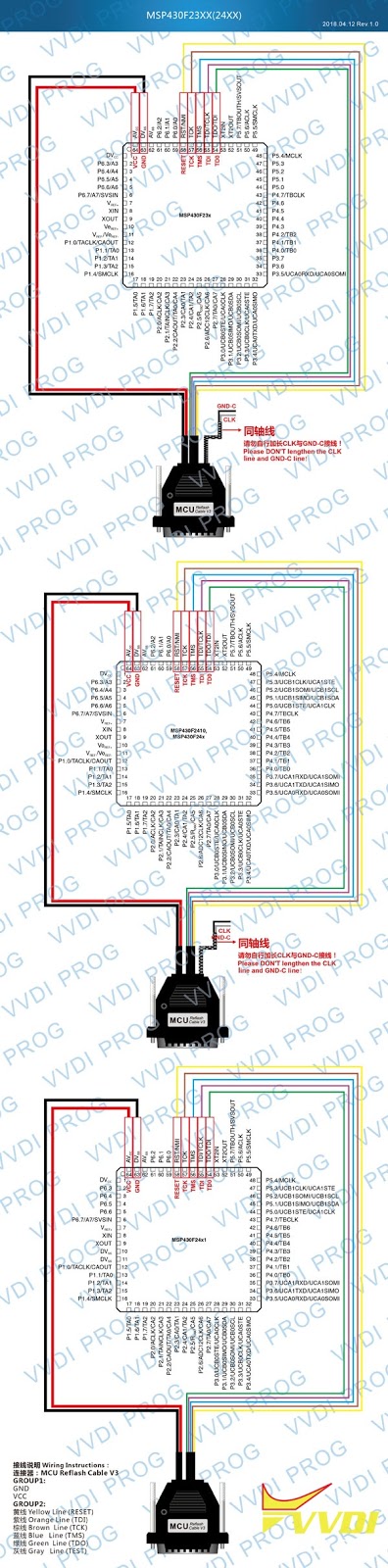

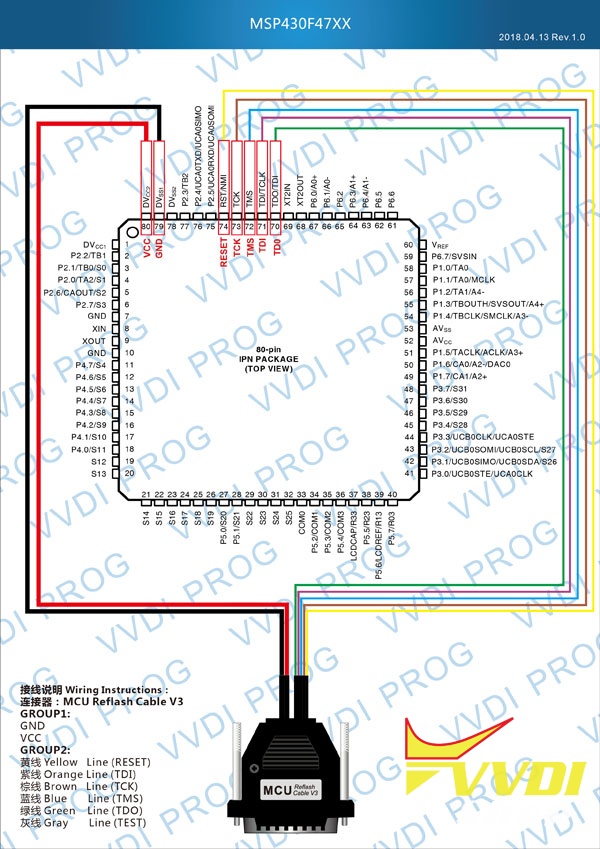

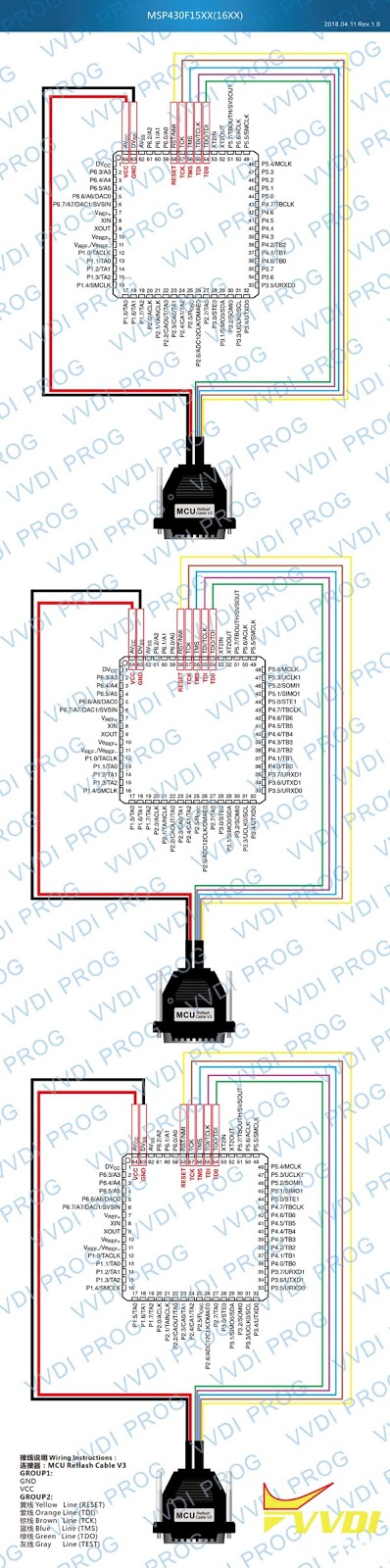

2-Added MSP series in options under 2-MCU menu TI-MSP430 series
Added in options under 2-MCU -> RENESAS-RH850 series

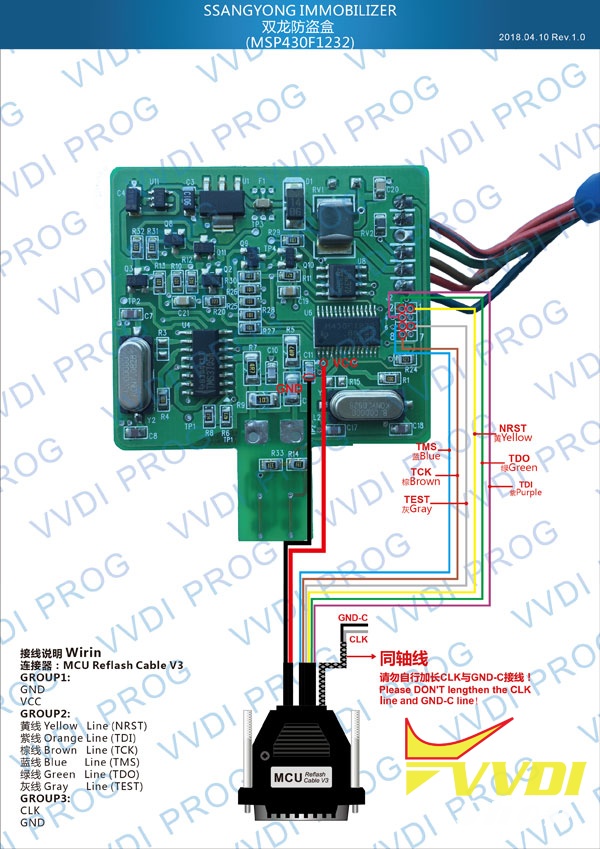

3-Added CS75-BODY-COMPUTER option in <4-IMMOBILIZER CHANGAN Added under IMMO(MSP430F1232) option 4-IMMOBILIZER SSANGYONG

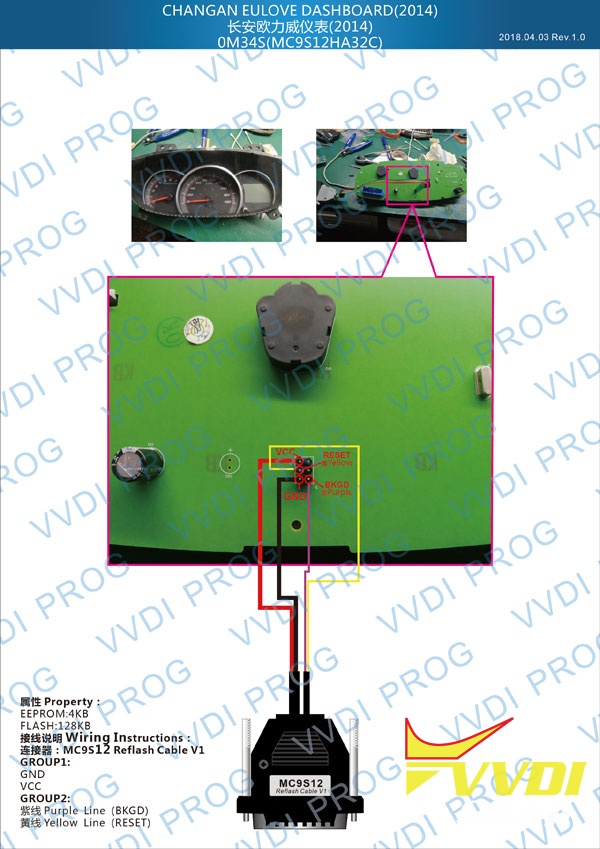

+ Add EULOVE(2014) option in 5-DASHBOARD CHANGAN

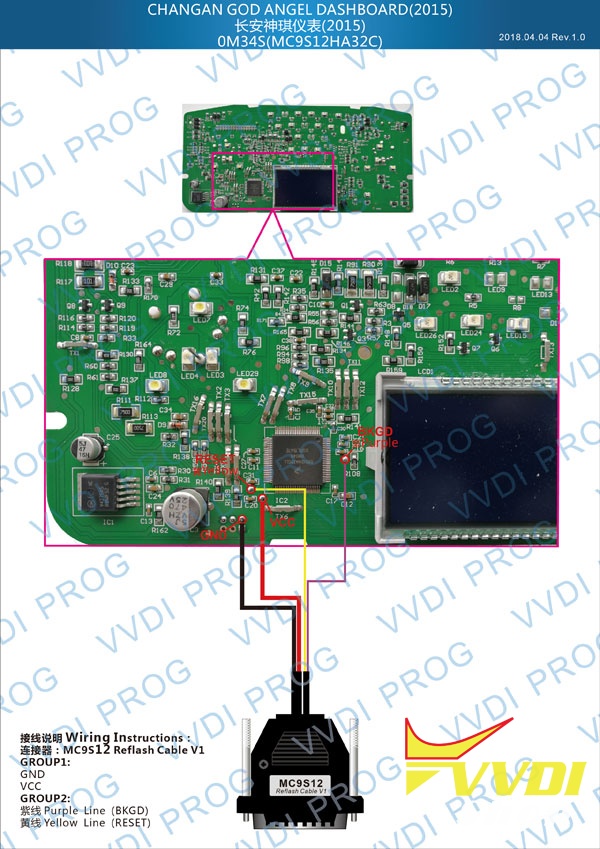

Added GOD-ANGEL(2015) option in
5-DASHBOARD CHANGAN

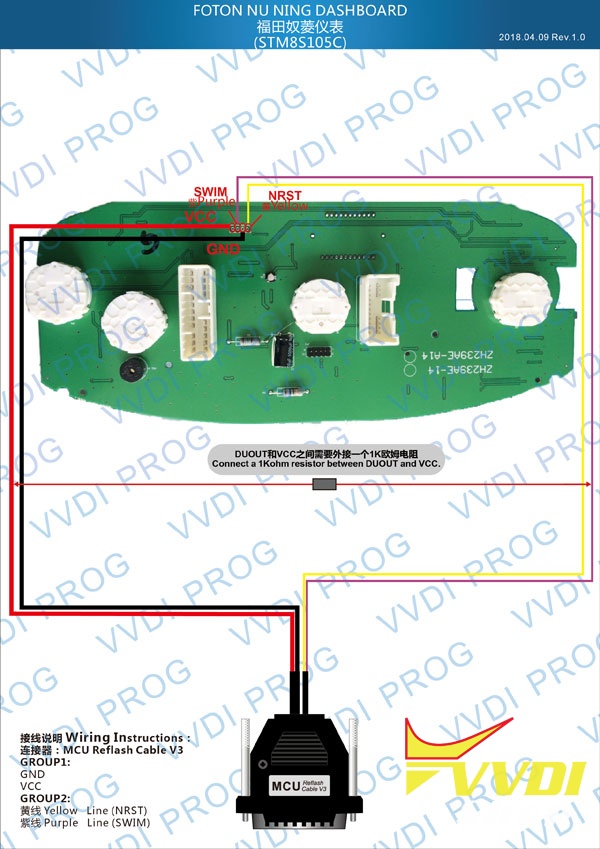

Added NU-NING(STM8S105C) option in 6-DASHBOARD FOTON>

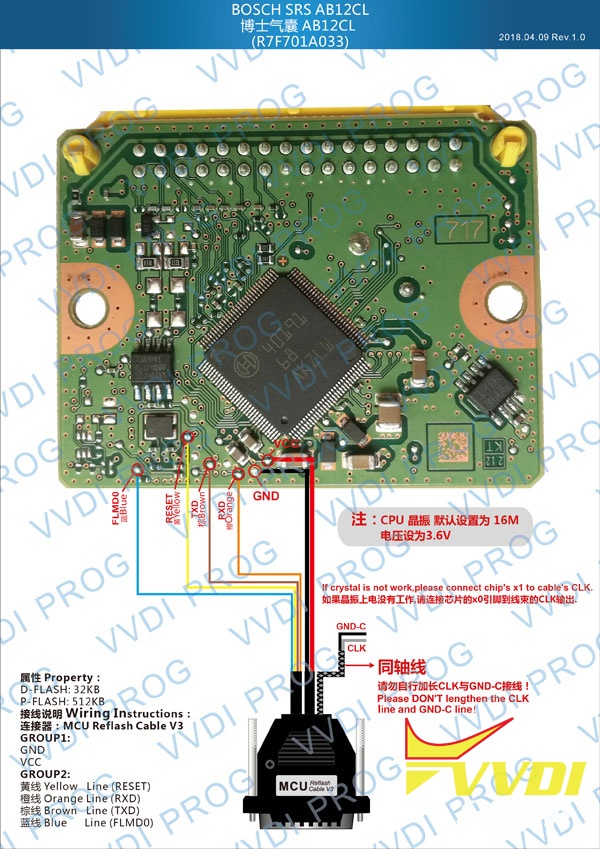

Added AB12CL(R7F701A033) option under 7-AIRBAG menu BOSCH

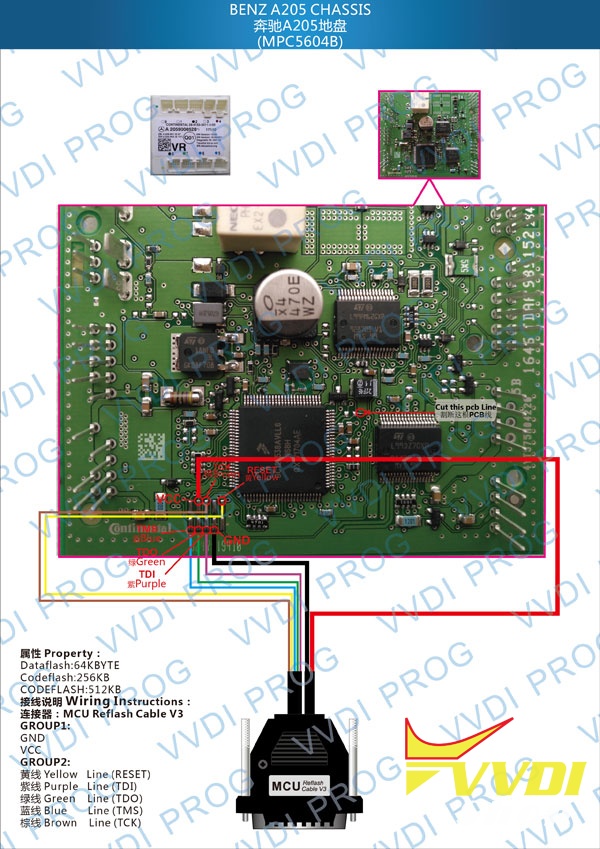

Added A205-CHASSIS option in 8-OTHER under BENZ menu

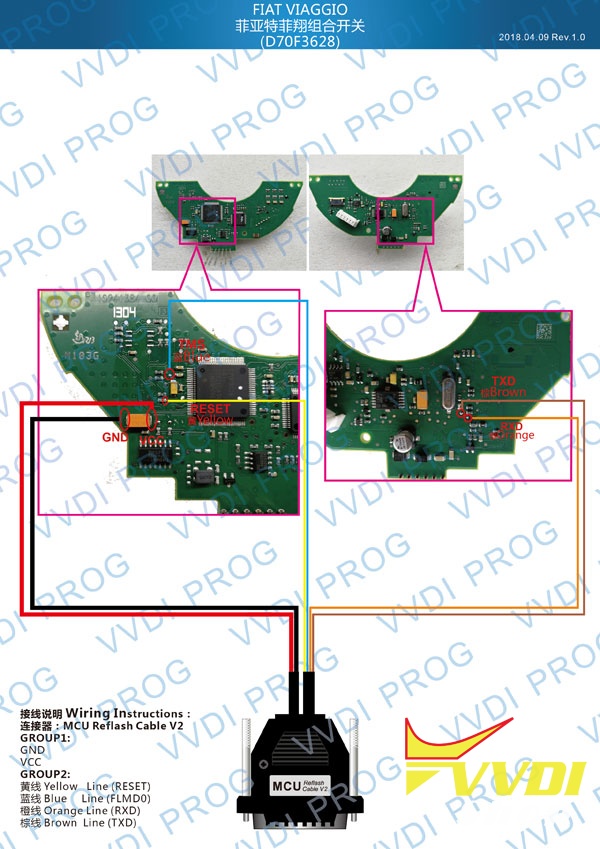

Added VIAGGIO(D70F3628) option in

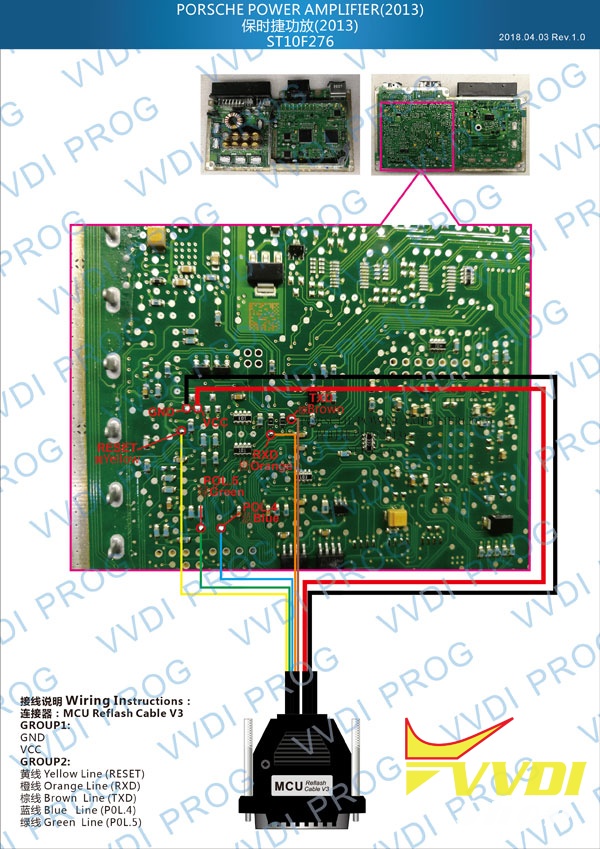

9-OTHER for FIAT + Added POWER-AMPLIFIER option in 10-OTHER for PORSCHE

Free Download VVDI Prog V4.7.0 software:

https://mega.nz/#!y0ozBSyC!I2BAD9xzyATyfzFc894vPZRlkzG4CNEXCuqpXaovYF8

password:123456

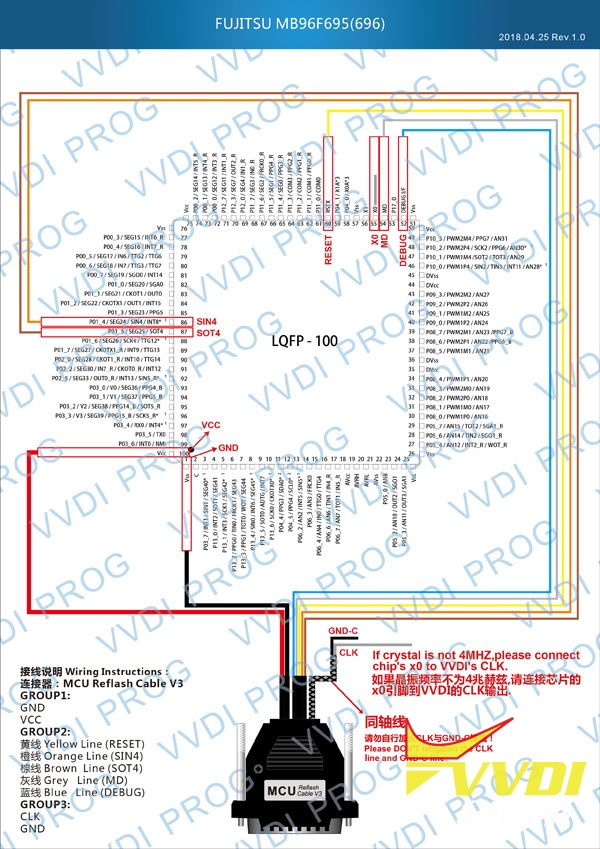

VVDI Prog 4.7.0 new added pinouts:
