Xhose VVDI نرم افزار برنامه نویس اصلی و سخت افزارHow to Add Volvo XC60 Smart Key with VVDI Key Tool Plus?
The device has paid itself after accomplishing several Volvos. Need KVM and CEM out.
Tools i have used to complete these jobs:
A xhorse vvdi key tool plus pad
Volvo solder-free adapter for both CEM and KVM
several aftermarket Volvo keys
All add key job, all original key working no problem
Just did a Volvo XC60 2013 yesterday.
Here’s a quick guide on completing this model
Take both CEM and KVM out.
1.Read CEM data
connect CEM with XNDP28 CEM1 adapter and key tool plus
key tool plus will show you wiring diagram
Select Prog- IMMO- Volvo-Other-CEM1 (R5F64525)
Press Read- IMMO DATA
Read and Save CEM data
2. Read KVM data
connect KVM with XNDP27 KVM adapter and key tool plus
Select Prog- IMMO- Volvo-Other-KVM (MC9S12DG256)- Adapter method- Read-IMMO Data
Read and save KVM data
3. Program key
in xhorse key tool plus, go to Immo Programming- Volvo- XC60- 2009-2016- Smart Key system- Add smart keys
Confirmed CEM data was read, then load CEM data
Confirmed KVM data was read, then load KVM data
Press Start button once
Identify VIN, press ok
Read current number of keys
insert new key to be programmed into card slot
Remove the smart key from key slot, click UNLOCK button once
if car does not respond, try several times
Program complete, test both keys. All working.
other models i have done
Free Download Xhorse Dolphin II Key Cutting Machine User Manual
What’s the difference between the new Xhorse Dolphin XP005L (Dolphin II) and Dolphin XP005 key cutting machine?
Similarities:
same database
same function
with built-in lithium battery
light weight
both can be controlled by Xhorse app
Differences:
- Adjustable HD Touch Screen
XP005L: Yes, operate via touch screen directly or operate via Xhorse App on mobile phone/key tool max/key tool plus. New UI interface, easy & smart to control. Supports 0-90 degrees angle adjustment, 5 inch high definition tablet screen to minimize eye fatigue.
XP005: No
- Intelligent Colorful Indicator Lights
XP005L: Yes,
The indicator light changes color according to different real-time working status.
Red light – false alarm/error warning
Blue light – normal operation
Yellow light – information notification
XP005: No
- Movable Transparent Protective Shield
XP-005L: Yes, More neater and safer. Clearly shows key cutting status all the time, prevents metal debris from spattering during processing.
XP005: No
- Upgrade Lengthen Working Space
XP005L expands cutting space to keep stable & secure, more reliable and powerful.
- Clamp
Dolphin XP-005L comes with M5 2 in 1 clamp in default. M5 clamp= M1 + M2 clamp. M5 clamp can be used with Dolphin II and Condor Mini Plus II only.
XP005L is compatible with old M1 and M2 fixture as well. But XP005 is not compatible with M5 clamp.

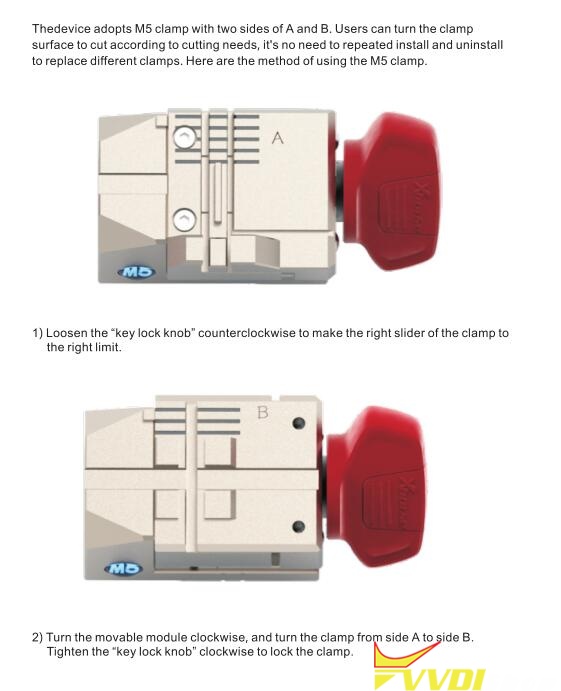

M5 Clamp instruction
What is New in Xhorse Dolphin II XP005L?

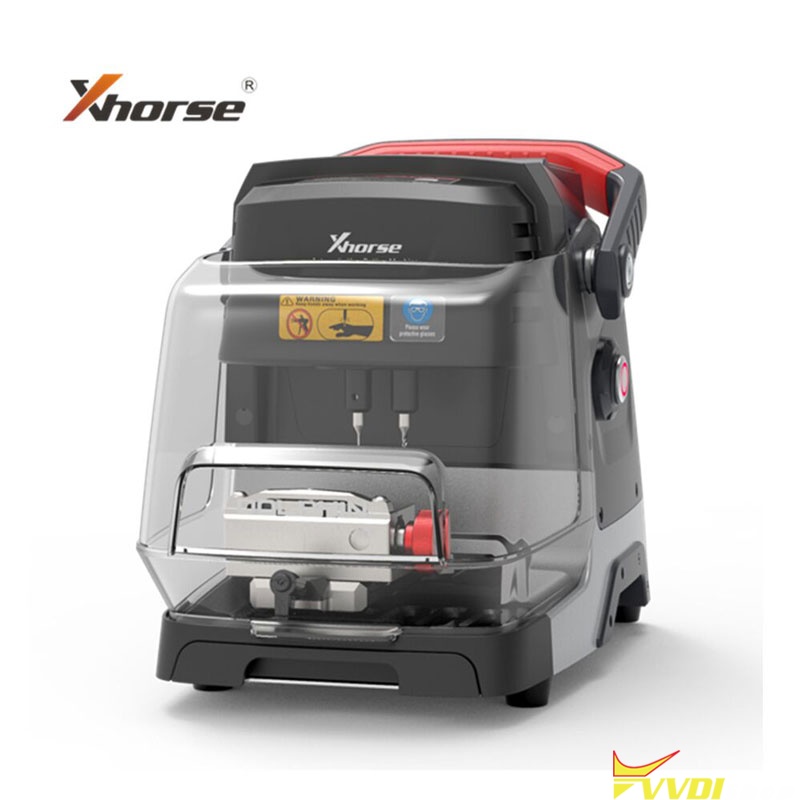

2021 new Xhorse Dolphin II XP005L key cutting machine is coming soon. As an upgrade version of Dolphin XP005, what’s new in the machine?

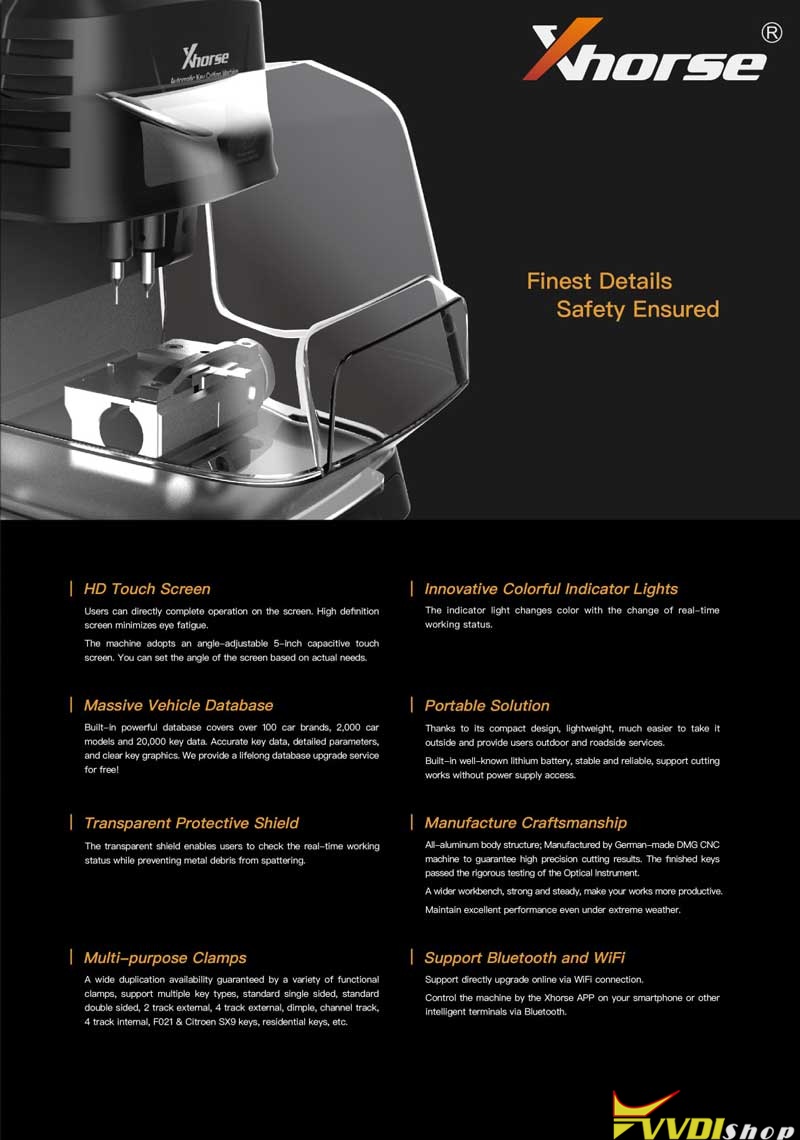

Dolphin II XP005L New Features:
- Adjustable HD Touch Screen
Easier touch to control, flexible application. Supports 0-90 degrees angle adjustment, 5 inch high definition tablet screen to minimize eye fatigue.

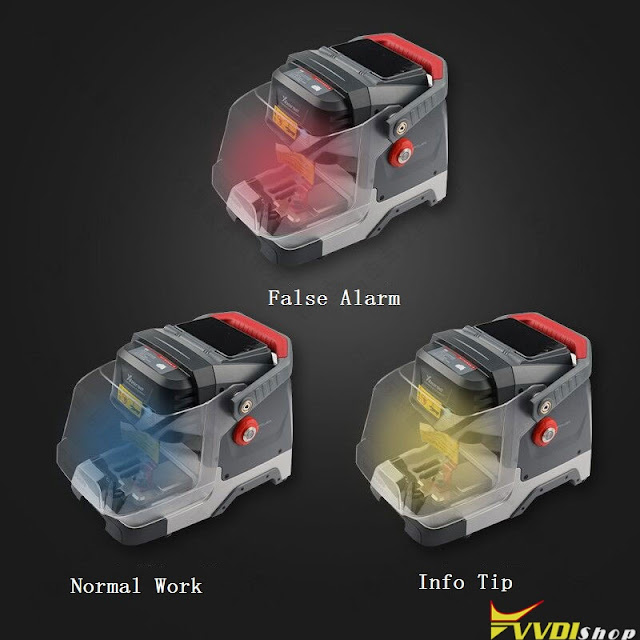

- Intelligent Colorful Indicator Lights
The indicator light changes color according to different real-time working status.
Red light – false alarm
Blue light – normal operation
Yellow light – information notification
- Movable Transparent Protective Shield
More neater and safer. Clearly shows key cutting status all the time, prevents metal debris from spattering during processing.
- Upgraded & Lengthen Working Space
Expands cutting space to keep stable & secure, more reliable and powerful.
- Multi-purpose M5 Clamp
Standard equipped M5 clamp (M1 and M2 2 in 1), optional M1/M2 Clamp, M3 Clamp, M4 Clamp. Supports to cut standard single sided, standard double sided, 2 track external, 4 track external, dimple, channel track, 4 track internal, FO21& Citroen SX9 keys, residential keys, etc.
Dolphin XP005L Highlights
- Support to cut key anywhere without a smart phone.
- Database covers 100 car brands, 2000 car models, 20000 keys.
- Built-in lithium battery, compact and lightweight design for ease carry.
- All aluminum body structure, strong & accurate.
- New UI interface, easy & smart to control.
New Xhorse Dolphin XP005L is smarter and safer, which will bring locksmiths more convenience to adapt different working environments.
Failed to Generate Xhorse RAV4 2019 Remote Solution
Some reported that they failed to generate Xhorse Toyota universal remote for 2019-2021 RAV4 US/JP model with vvdi mini key tool and were unable to learn to vehicle. Here’re working experience and suggestions.
Suggestion:
Working experience:

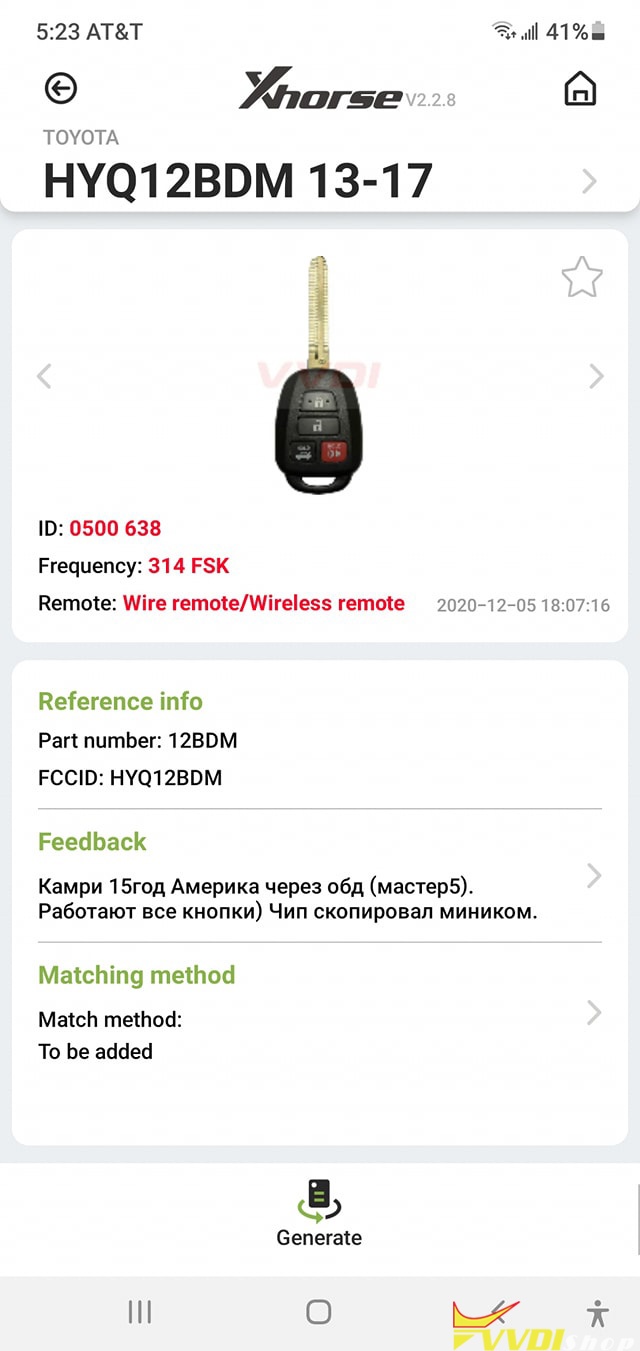

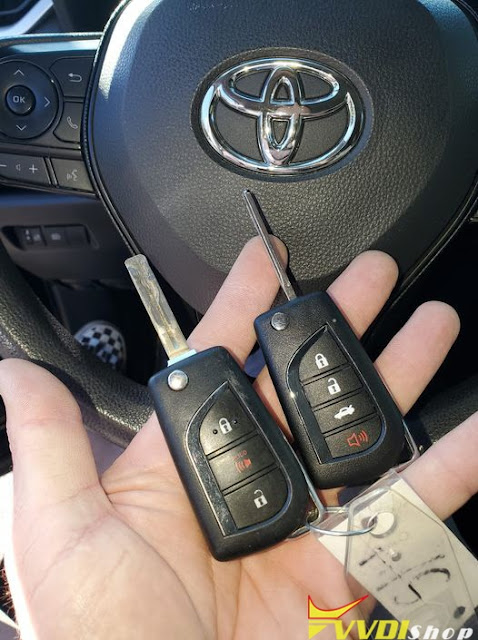

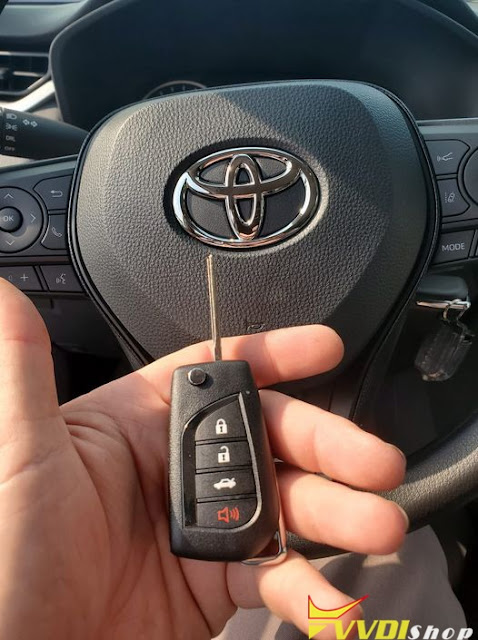

Making progress. 2019 Toyota RAV4 built in Japan for US market. We have made multiple attempts at using Xhorse Universal remotes on 2019 and up RAV4 with no luck. I was out of stock on OEM keys and decided to once again try a universal. Following the advice above I made about these vehicles I flashed it for HYQ12BDM and it learned to the car, this FCC is neither a match for this rav or the previous ones and I have attempted with universal, but this one worked.
Why Xhorse Key Tool Plus Screen is darker other other pad?
Question
My Xhorse VVDI Key Tool Plus screen is always darker than other pad in same light. How to adjust its brightness? I can’t find it, please help me!
Answer
Where to adjust VVDI Key Tool Plus brightness, please find the Set button on top right corner of Home page,
Set >> System setting >> Brightness control
Follow the path above, you’re allowed to adjust brightness as required.
Thanks to www.vvdishop.com engineer helped me a lot.
