VVDI Key Tool Max adds 2013 Corolla G Key

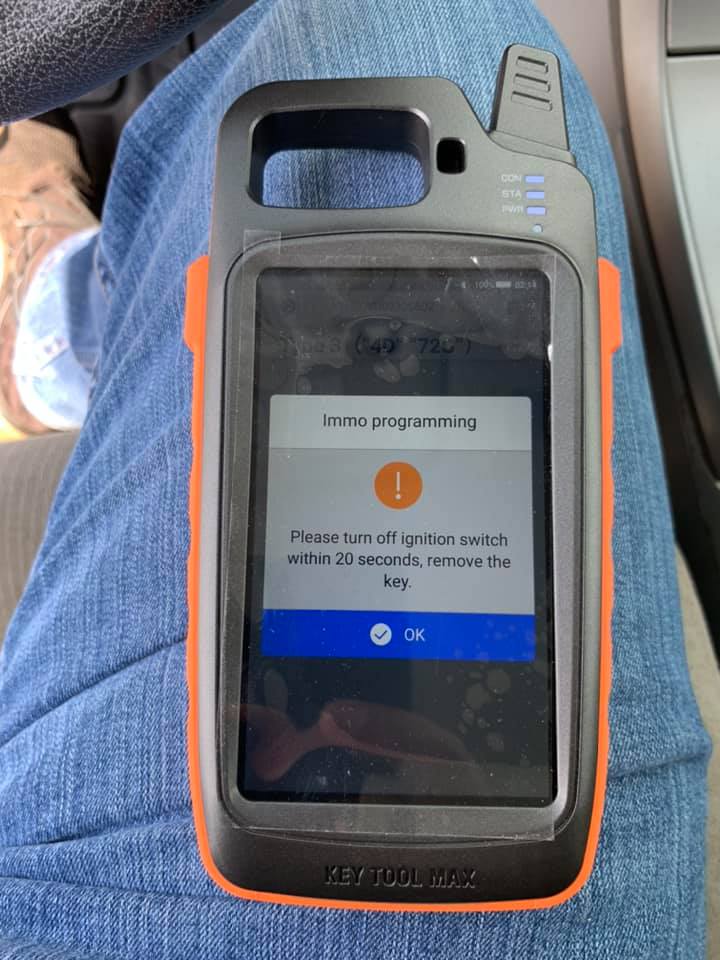

Test report: 2013 Toyota Corolla add G chip key successfully using Xhorse vvdi key tool max remote maker.
Generated a super chip and programmed key no issue.

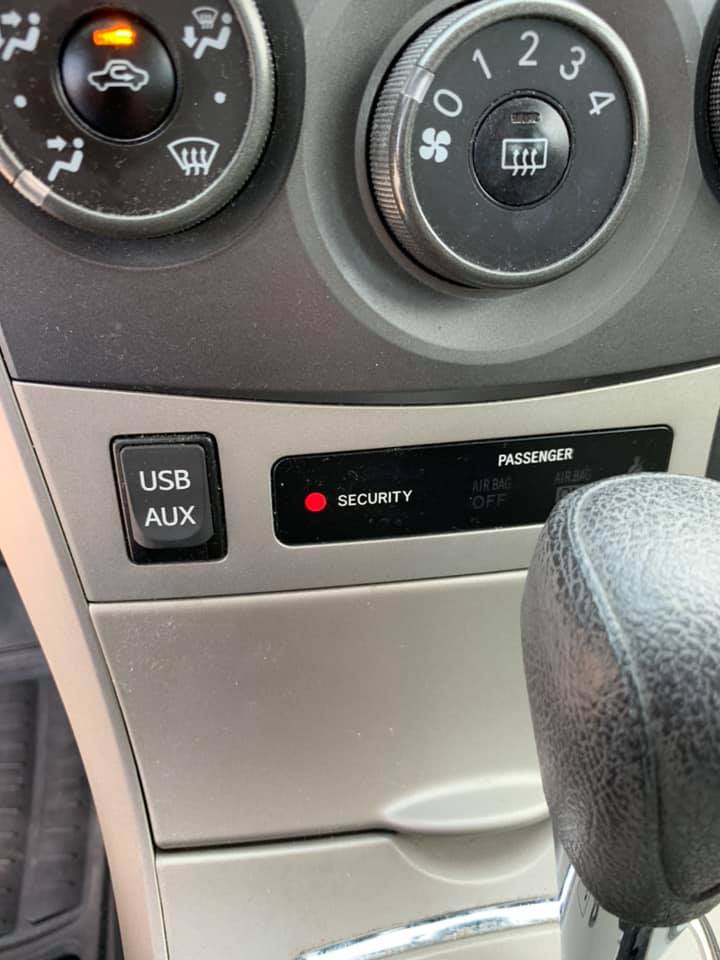

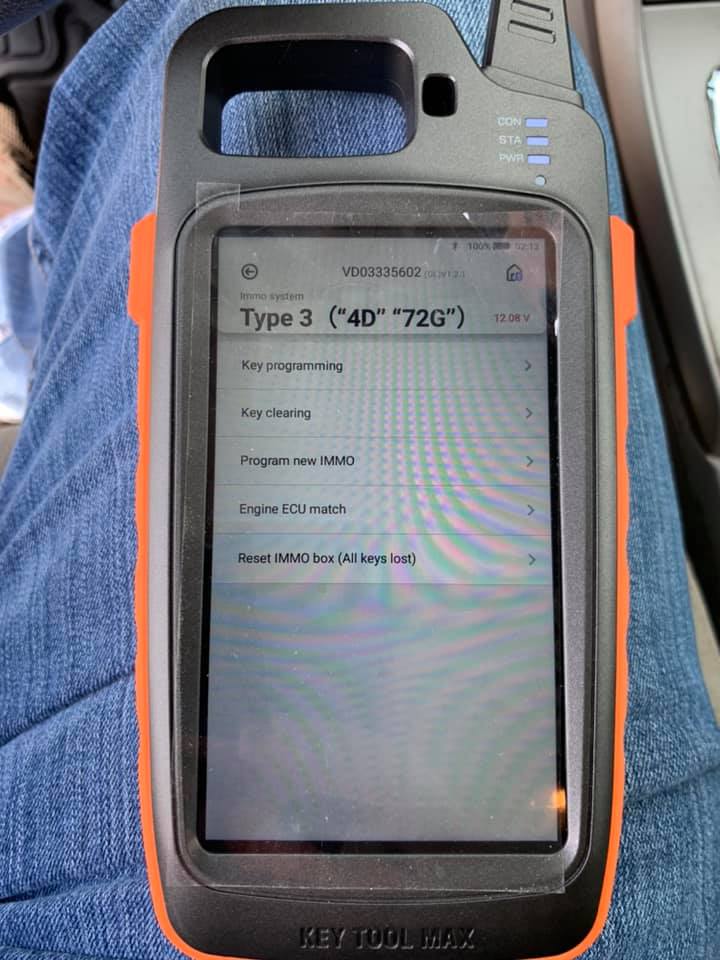

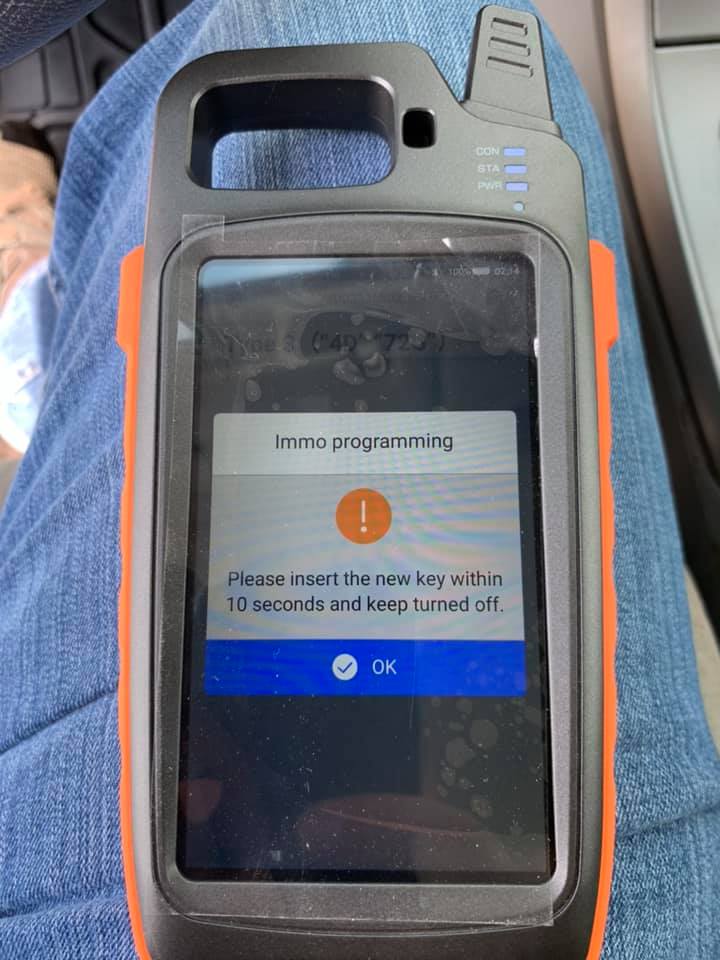

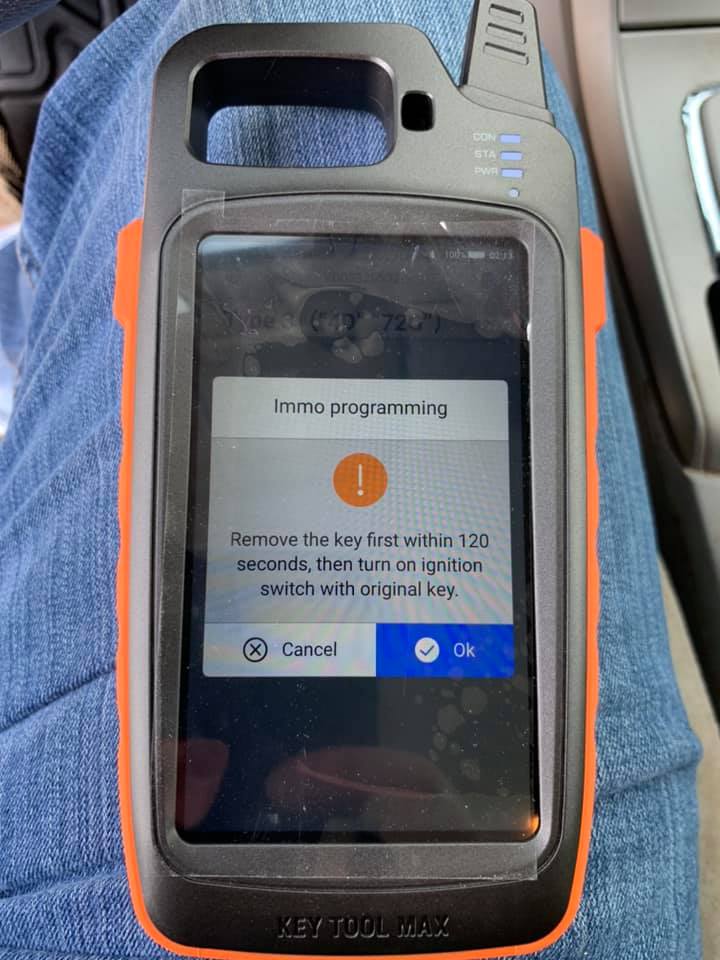

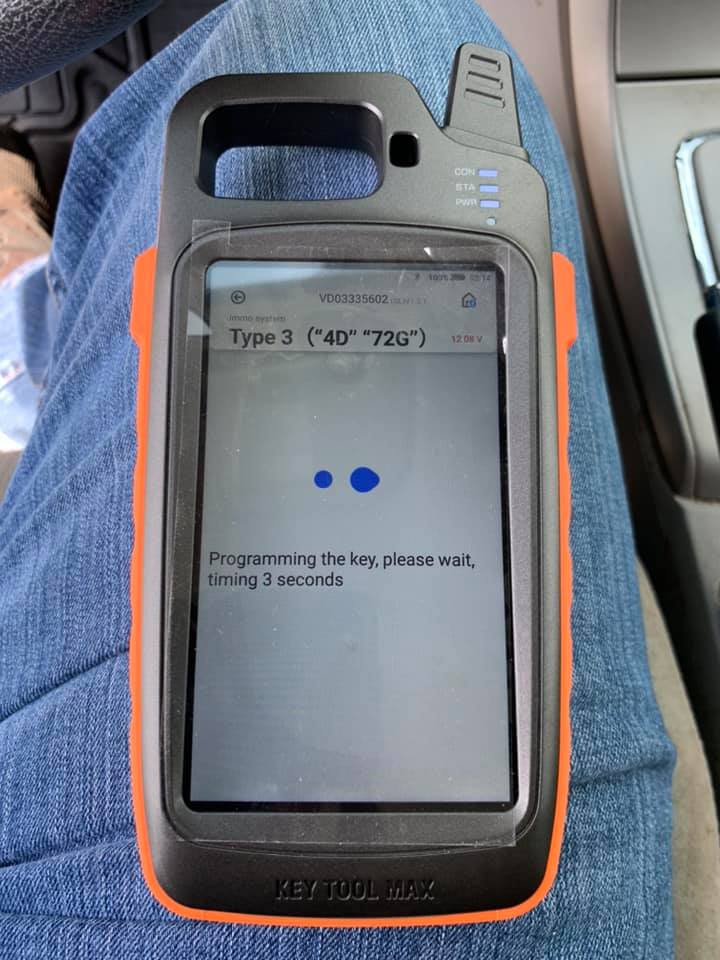

Check picture guide step by step:

Credit to Mr. Arend

Done.

www.vvdishop.com

Xhorse XEMQB1EN vs. XSMQB1EN MQB Remote

Difference Between this Two key MQB.

1. XSMQB1EN MQB Smart Proximity Remote Key

XSMQB1- Smart key, mostly for MQB (regular and kessy) new 48 AES , also older cars with 48 KESSY (tiguan ,golf 6 etc)

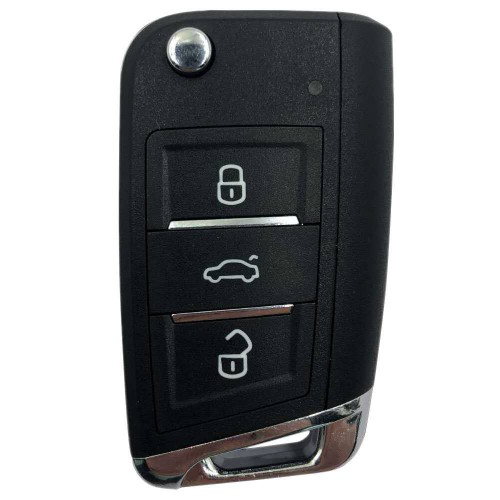

2. XEMQB1EN MQB Super Remote Key

XEMQB1 – Super Key , Support ID 48, 48, 4D etc … is a new version of old NXP wireless key but supporting more transponder due to built in Xt27 Super chip.

www.vvdishop.com

Some Important VVDI Prog Airbag SRS pinouts

Here are some airbag pinouts to some important vehicles (European vehicles mainly) that don’t show in Xhorse vvdi prog programmer.  Thanks to @ s qubiak for sharing.

Renault / Dacia SPC560

Pinout xprog edit for vvdi
Test ok

Opel SPC 56AP54x
Pinout CPT edit for vvdi prog

Fiat 500 L
SRS MPC/SPC
CPT edit for vvdi prog

Dacia / Renault SPC560P50L3 V2
pinout CPT edit for VVDI-prog

Dacia /Renault v3 (SPC560P50L3_V3)
pinout CPT edit for vvdiprog

Skoda SPC5604-114pin
pinout CPT edit for VVDI prog

Kia NEC D70F3628
pinout CPT edit for VVDI prog

VW renesas v850 SRS 70F3466(70F3424)
pinout CPT edit for VVDI prog



Keep updating…

www.vvdishop.com

How to Remove Audi A6 09 Component Protection with VVDI2?

Question:

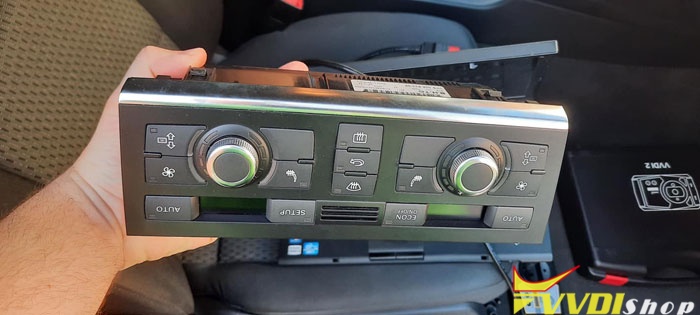

Trying to remove component protection from new climatronic unit Audi A6 2009 . Can you confirm if this is the correct module to adapt ? I use Xhorse VVDI2.

Yes, VVDI2 can remove component protection for Audi A6 09.

This functions allows customer to adapt used parts on other cars.
Generally requires 2 steps:
1.Reset the module to virgin state
2. Adapte the module to other car.

Vehicle compatible:

Generation 1: Audi A8 (2003-2010) modules, Audi A6/Q7/Allroad (2004-2008) part modules

Generation 2: All other models of A6/Q7/Allroad and A4/A5/Q5 modules.

You need dump from both gateway module from the car you work on and car you get clima unit.
More easy, open your old clima, and change the eeprom.
Read eeprom 95320 in Gateway, and load dump eeprom dump and reset CP. Easy

www.vvdishop.com

Can VVDI2 Replace a used BMW FEM Module?

Question:
I have BMW FEM with water ingress.

Old Fem is damaged
How can I replace with used one?
Possible to replace it using vvdi2?

Solution:

Yes, it is possible to replace with a used one.

Unlock fem old and save backup file fem. unlock fem new and write file backup (write vin/isn ecu)

The ISN from ECU, you need isn save from old and write to new. Try the new vvdi prog bosch ecu cableto not have to opening ECU .

eeprom 95128 or 95256 need read and write.

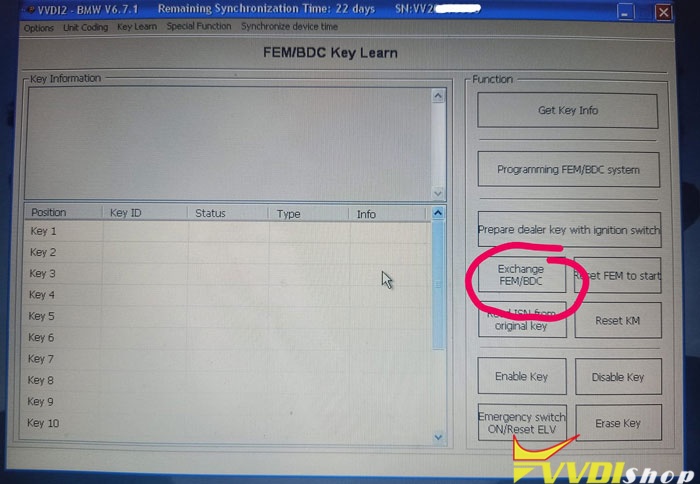

Xhorse VVDI2  it okey. You can replace fem to other fem (both new and used FEM. This is confirmed by Xhorse engineer). Its 15 min.

if not connect you must have new fem ordered or used fem write new key and DME ISN and 8HP reset ISN ! change VIN IN FEM !

with vvdi bmw, autohex or BMW Explorer.
