Xhorse VVDI2 Key Programmer Update to V5.6.0

Xhorse VVDI2 key programmer software Update V5.6.0 on  20th June 2018.

No Firmware Upgrade required

Update Online via Upgrade Tool Now

What’s New Highlights

Finally 1st in the world
all working Remote / Proximity for all JLR – Jaguer & LandRover via RFA/KVM dump, starting + all functionality will work instantly no extra Security Learning OBD programming required.Land rover 2015 all keys lost via transponder prog

VVDI2 V5.6.0 Update Feature:

*** 2018-06-20
*** Requires firmware V5.5.0

===== VW V5.6.0 =====
1. Improve the automatic diagnosis of the public security system
2. Refresh the original firmware (frf, odx, sgo): Supports fast, medium, and slow 3 refresh modes
3. Other bug fixes

===== BMW V5.6.0 =====
1. Repair BMW FEM/BDC backup and recovery code, support to version ISTAP64.2
2. Other bug fixes

===== Porsche V5.6.0 =====
1. Other bug fixes

===== Peugeot Citroen V5.6.0 =====
1. Other bug fixes

===== Key Programmer V5.6.0 =====
1. Fix remote copy instability
2. Fix the issue of smart card generation
3. Add write startup: Europe -> Land Rover -> New Land Rover/Jaguar (2015-) MC9S12EXT256/MC9S12EXQ384
a. Need to load KVM/RFA DFLASH and EEPROM data
b. Support emergency start function, need to write back BCM DFLASH data
c. After the key is generated, write new data back to the KVM/RFA module. The new key is started directly. The remote control is intelligent and effective. No additional matching is required.
d. support to erase the lost key
4. Other bug fixes

===== 96-bit 48-copy V5.6.0 =====
1. Other bug fixes

===== J2534 V5.6.0 =====
1. Other bug fixes

===== Online Upgrade V5.6.0 =====
1. Other bug fixes

===== Quick Start V5.6.0 =====
1. Other bug fixes

Free download Xhorse VVDI2 V5.6.0 software

http://www.vvdishop.com/info/vvdi2-software-update-to-v560-on-june-20th-2018-21242.html

Read Hyundai ix35 2011 Pin Code with VVDI Key Tool

New test feedback: Hyundai ix35 2011 Pincode from Vvdi key tool vs. lonsdor k518 vs. xtool ps90.

In my case,   Xhorse VVDI Key tool succeed, Lonsdor and Xtool failed.

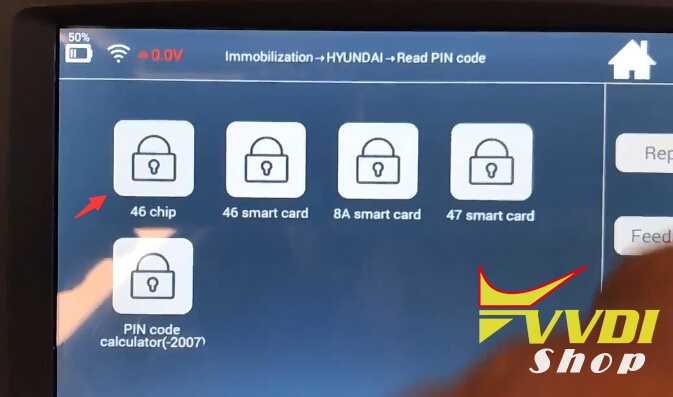

First try Lonsdor K518, failed to read pin

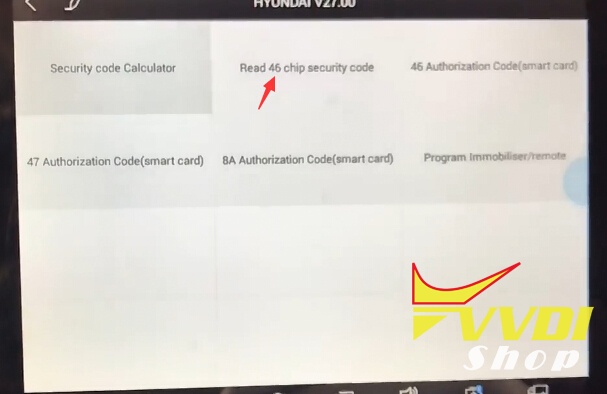

Then try Xtool PS90/X100 Pad2, failed  to communicate either

Try VVDI Key Tool, read security pin code no issues

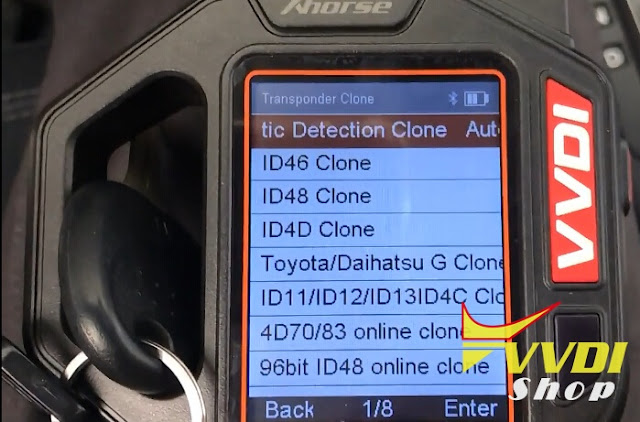

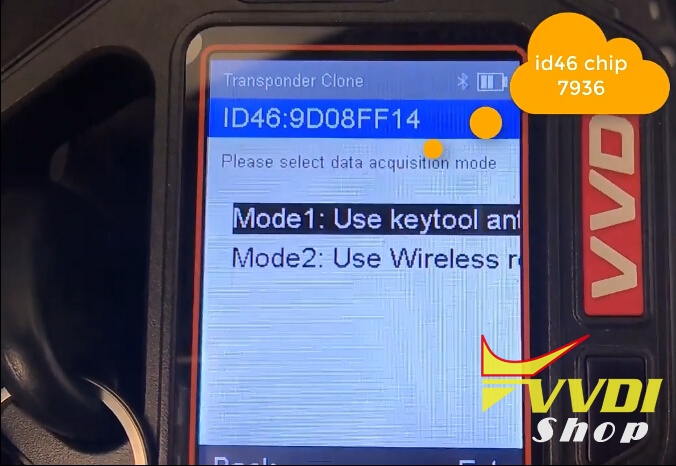

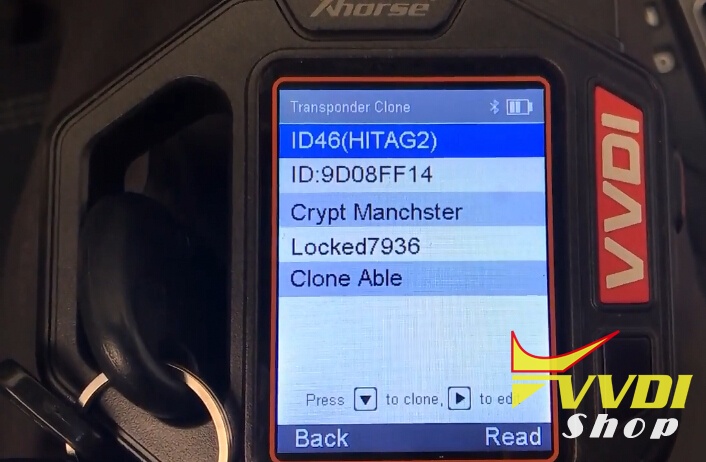

Automatic Detection Clone->Identify ID46 PCF7936 chip->Select Mode 1 data acquisition

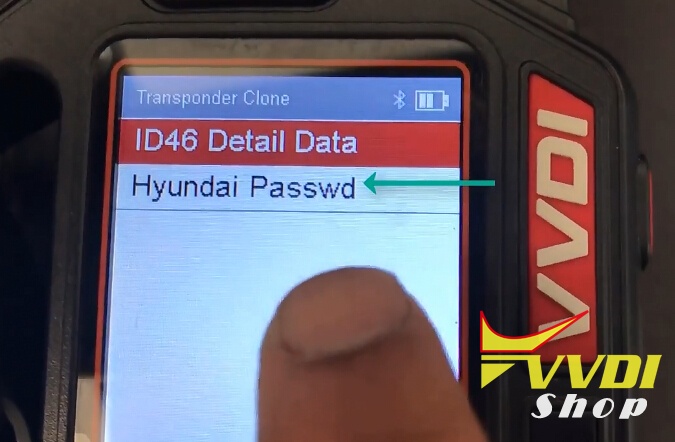

Get More->Hyundai Password

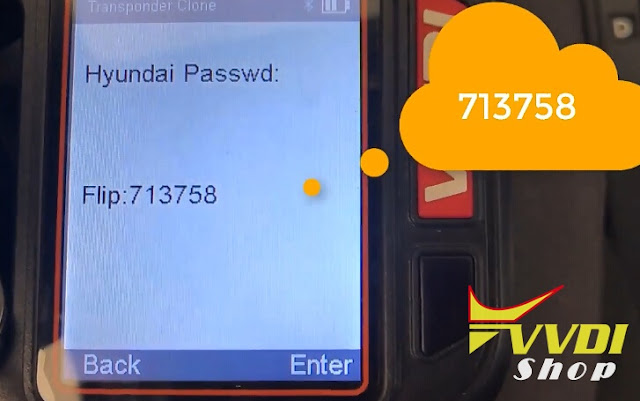

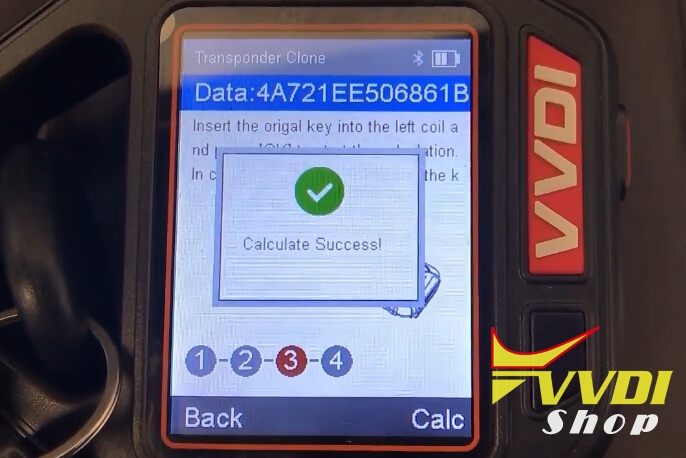

VVDI key tool successfully calculated Hyundai password.

www.vvdishop.com

http://www.vvdishop.com/service/read-hyundai-ix35-id46-pin-code-with-vvdi-key-tool-7063.html

How to solve Xhorse VVDI BE KEY Pro problem

Hi, if you met any problem with old version of Xhorse VVDI BE key just exchange these 2 resistors.

Or no need replace only resolder it will work fine.

Xhorse VVDI BE Key Pro + Benz Smart Key Shell 3 Button

Xhorse VVDI2 Golf 5 K-line upload data failed solution

Problem:

Hi, I have with Xhorse vvdi2 vag v5.5.0 problems with edc16u1 ecu and dashboard.
It can’t read golf 5 2005 year. Something not ok with it
It looks like K line not working.

picture attached:

Error “Can’t connect to device. Switch ignition OFF/ON and retry”

Error “Non-standard upload data failed”

Solved!!!

Here’s the customer solution:

I test it this morning and all works fine now.
I removed soldering ball and i reinstall drivers and all working fine.

It reads now over kline it detects edc16 ecus and it read immo data eeprom and also dashboard it can read now.
I check k line from vvdi2 db25 connector on PCB to the optocupler (relay) omron, and from it to the ADG1606B multiplexer then from multiplexer to the L9637 interface. Then from it to the mcu Rx and TX line. All is ok. Even replace from vvdi 1 L9637 ISO 9141 interface. Didn’t work. Then I measured supply to the omron optocoupler relay it has 1.2 v when activate Kline communication. Check also 120ohm pull down resistors, check supply to the multiplexer ADG1606B it is ok 3.3v ako also on iso 9141(L9637) interface, and also I have on oscilloscope TX and TX signals from mcu to the L9637 it send data when It activate Kline. And in the end I found one solder ball between legs of multiplexer. You can see it on picture that I send you before. First time i open it. That was the main problem and USB drivers.
this is all i tested on this interface. Now all is fine and i can work now  vvdi2 vvdi2 vag

VVDI Prog Read Ford Fiesta 2015 Dashboard 1M12S

Test feedback: Read Fiesta 2015 Dashboard 1M12S
Chip dst 80 bit

Success with Xhorse VVDI Prog programmer
Ready only with the board

http://www.vvdishop.com/

http://blog.vvdishop.com/vvdi-prog-read-ford-fiesta-2015-dashboard-1m12s/
