Pinout BCM2 AUDI A5 70F3380 for vvdi prog

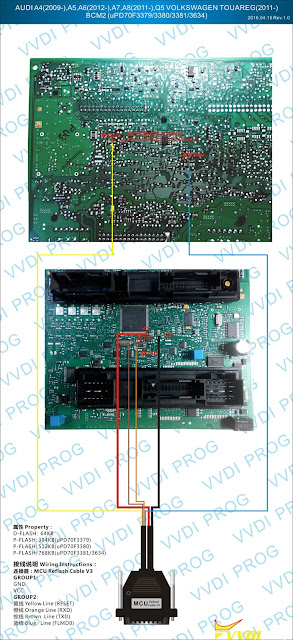

Here the pinout to read this bcm2 of Audi A5 70F3380 in xhorse vvdi prog programmer.

Make sure you choose correct MCU. (click to enlarge images)

I read one of these a few days ago. Don’t remove any components from the board and the connection is same as picture. The board does look slightly different from vvdi picture. I think all useful data will be inside the 95320.

Vvdi prog not have SPI, only UART, other programmers have.

Good luck!

www.vvdishop.com

How to Update Xhorse VAG MM-007 Firmware Online?

How-to: update original Xhorse Iscancar VAG MM-007 (SuperVAG 3+) Diagnostic and Maintenance Tool.

Latest version:

Firmware version: 2.3.2
Software version: V2.3.0 (released 26/07/2018)

Turn on VAG-007

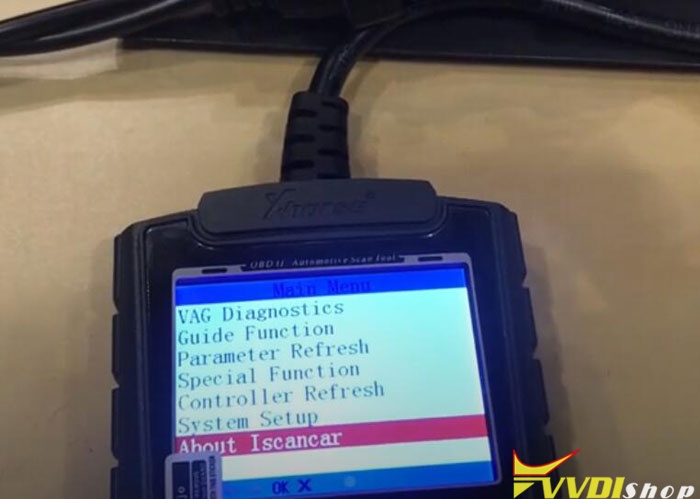

Select About Iscanner to check device information: SW, FW version and S/N

Go to System Setup->Firmware Update

Check available firmware update and confirm

Connect VAG MM-007 with laptop via test cable

Run update tool or Xhorse upgrade Kit

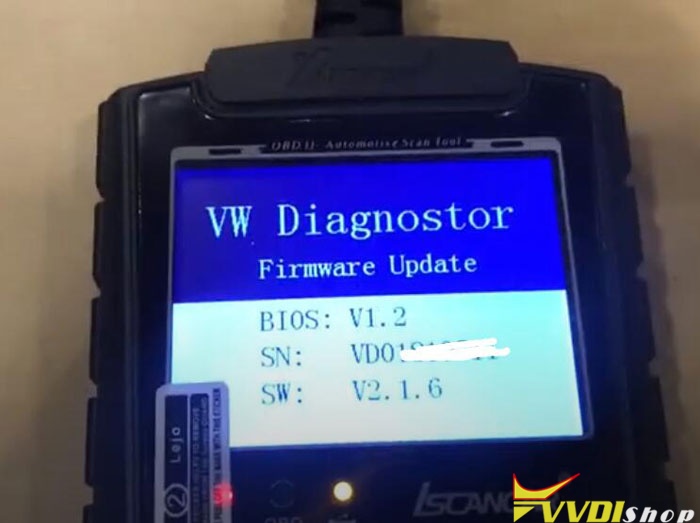

Check device info and press Update Online

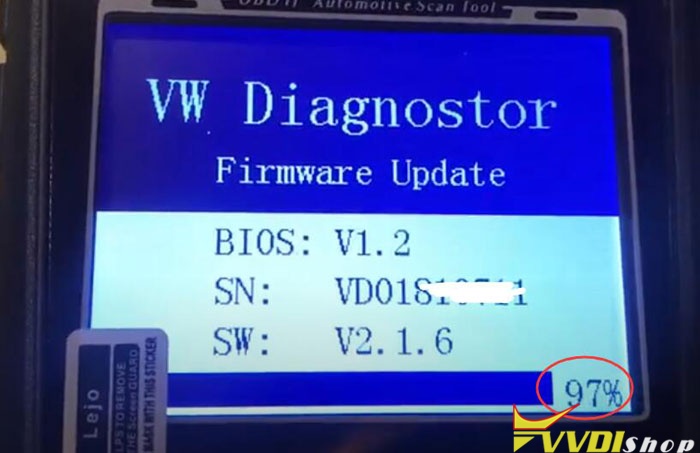

Check update status on mm-007 or laptop

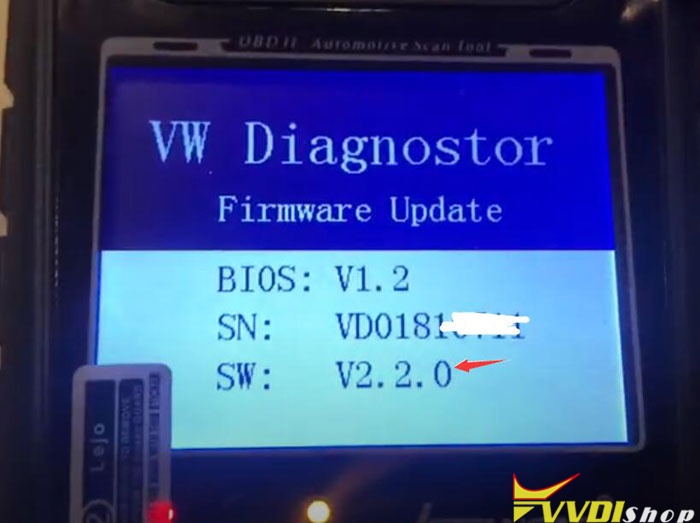

Firmware completed.

www.vvdishop.com

http://www.vvdishop.com/service/update-iscanner-vag-mm007-firmware.html

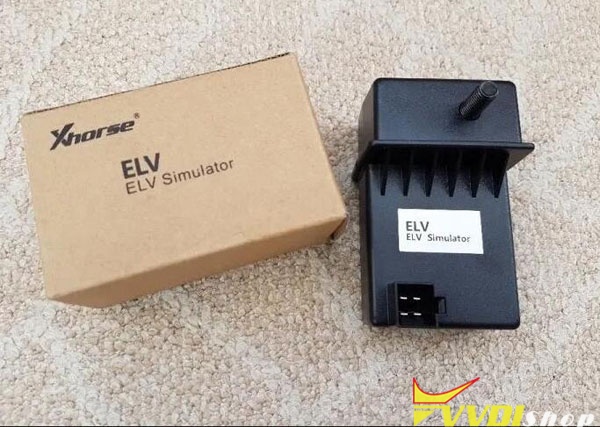

Xhorse ELV Emulator vs. Mini ELV Emulator

Q: What is this and what does it do?

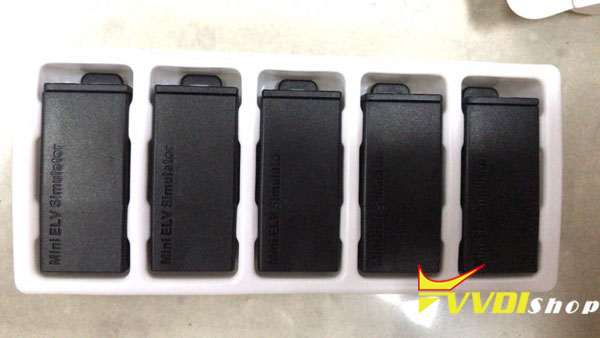

A: It is the new style Xhorse Mini ELV emulator for Mercedes Benz w204 w207 w212.

Q: What’s the difference between the mini one and normal ELV emulator?

A:   The new mini emulator is smaller and cheaper.  They have same functions.

Q: Works with VVDI MB?

A: Yes.

Q: How much does it cost?

A: The mini emulator takes $139 for 5 pcs/lot, deliver via standard shipping.

http://www.vvdishop.com/wholesale/xhorse-mini-elv-emulator.html

VVDI Prog ,, Xprog and Hextag User Feedback

Let’s have a look at why most prefer Xhorse VVDI Prog to Xprog 5.55 / Hextag.

@ user0086

Xprog 5.55 has trouble reading many chips and will break CAS.

@ brutten87

I only have experience with FRM repairs. First tried XPROG clone. I think it was 5.50 version. What a nightmare. Wouldn’t work. Tried a lot of things to get it working. After a while I decided to go and buy a Orange5 clone. Works like a charm. Did +- 20 FRM repairs at this point. All of them repaired with success…

@ mik325tds

I have a cloned Xprog and did work on FRM and cluster EEPROM. I can confirm that it has many troubles with reading EEproms correctly. Always need several reads until you get finally matching files. I flashed the firmware between v5.55 v5.51 and a 6.x version. The CAS eeprom reads were much more stable than the FRM reads for some reason. The good news is that the writes are almost always good.
But yes, you are in for a lot of pain with a cloned Xprog. Do the invest now for a better option to save you time and headaches in the future. Good tools are worth their money.

@ Matthew53:

VVDI prog is expensive for you? I suppose it’s the best balance between quality and price. Unless, you take 10$ for a standard job, then yes, it’s expensive.

@ Lpapp

Just buy VVDI Pro and enjoy it.
P.S. Take software from server, run it and see what is supported.

I bought from here: http://www.vvdishop.com

@ MichFuentes

I’m looking for VVDI PROG from xHorse and I like this tool, I think this tool is more better than XPROG and the original XPROG is around 850€ and original xHorse is around 430€

A friend of mine have used UPA and don’t like it because it is very limited comparated with XPROG.
I can repair FRM file I have specific software for this.

What about Hextag?

@ bmwbmw said: if you are lazy ( but is little expensive) buy hextag and not need to do anything to repair frm just click repair button and thats all,not need to find dump lose alot of time to repair…..

@ willisodhiambo said:  Hextag is the real deal but expensive.

Conclusion:

VVDI prog is the best balance between quality and price, compare Xprog and Hextag.

VVDI Toyota 8A All Keys Lost Operation Manuals

Here vvdishop.com provides opearyoion manual to the new released Xhorse VVDI 8A adapter for non-smart key all keys lost without disassembling immo box.

Manual including:

Toyota Camry 2015 2016/2017 Years 8A All Keys Lost
Toyota Corolla 8A All Keys Lost
Toyota High Lander 8A All Keys Lost
Toyota Hilux 8A All Keys Lost
Toyota Levin 8A All Keys Lost
Toyota Prado 2017 2018 8A All Keys Lost
Toyota RAV4 8A All Keys Lost

• can be used with vvdi2, key tool max + mini obd tool
• Toyota 8A Non-smart key car models:
  Levin, Corolla, Rav4, Prado, Land Cruiser,Camry, Highlander, Reiz, Sienna
• NOT ON BENCH: not on bench on car no need to dismantle the dash anymore vvdi2 new software + keytool max u can read immo data and make keys directly to immo or other option is baraccuda and tango on bench

(Click to enlarge manual images)

Camry 2015, 2016/2017  8A AKL

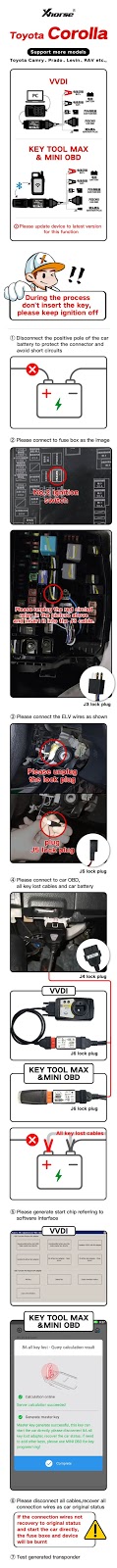

Corolla 8A AKL

Highlander 8A AKL

Hilux 8A AKL

Levin 8A AKL

Prado 8A AKL

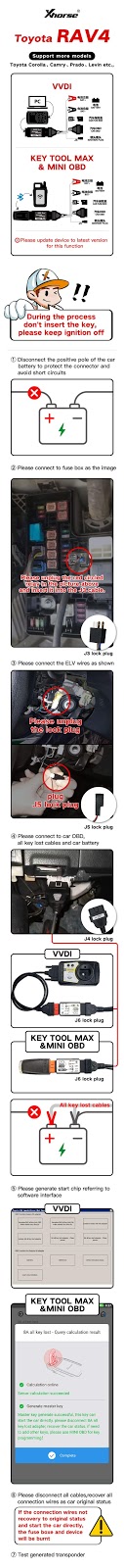

Rav4  8A AKL

http://www.vvdishop.com/service/xhorse-vvdi-8a-adapter-user-manuals.html
