Condor Dolphin cut Ford tibbe All Keys Lost

Demonstration:  Ford tibbe key All keys lost key cutting by Xhorse Condor Dolphin XP-005  key cutting machine and M3 Clamp.

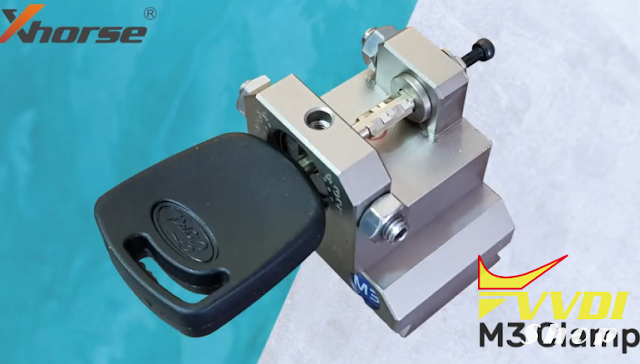

M3 clamp for Ford TIBBE Key Blade

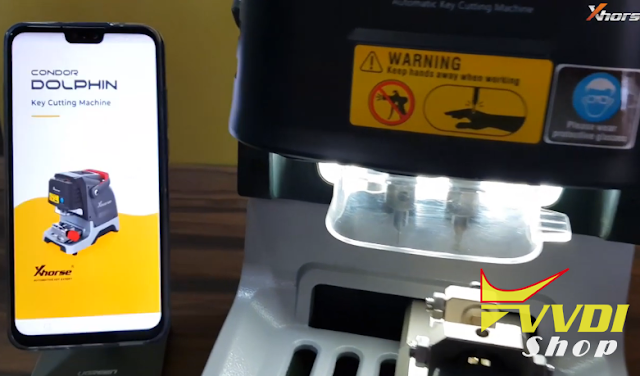

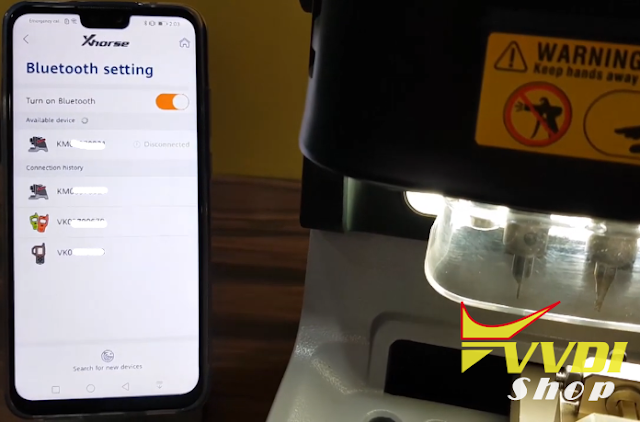

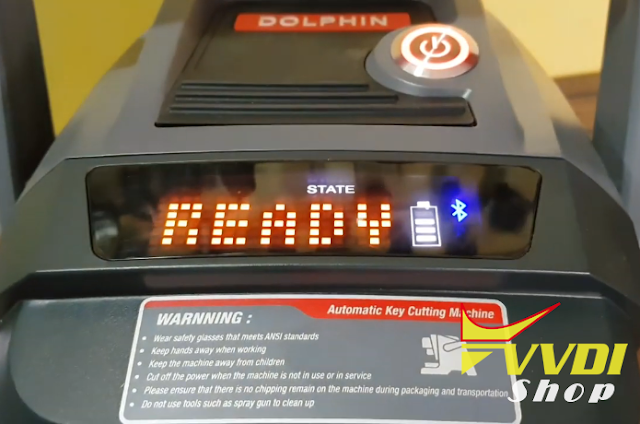

Download Condor Dolphin App and connect mobile phone via Bluetooth

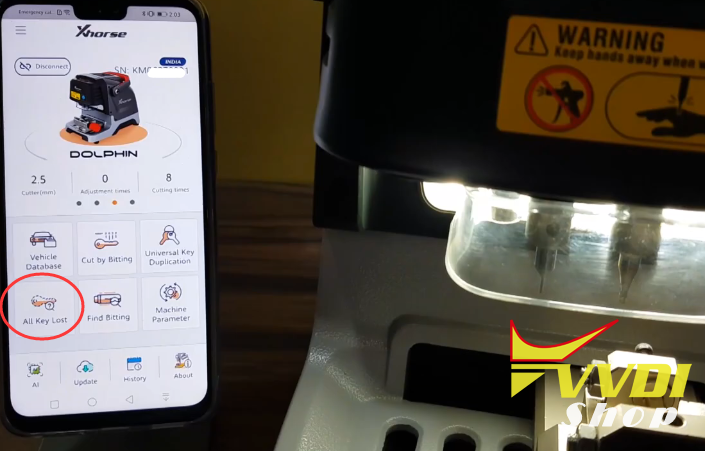

In App, select All Key Lost->Ford

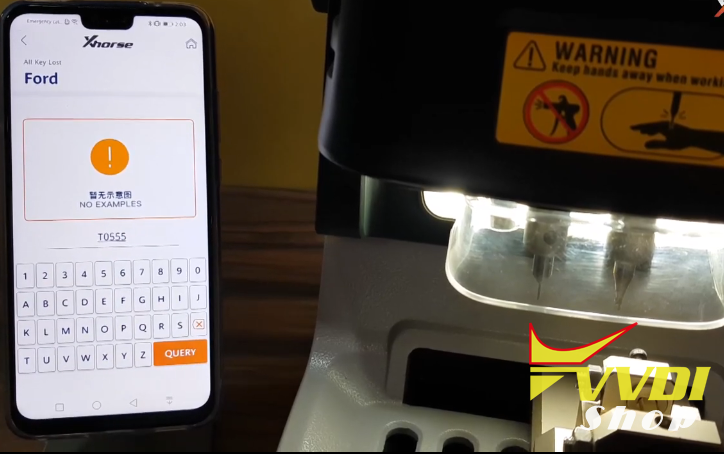

Enter key code to continue

Condor Dolphin XP005 prompts to use Clamp M3

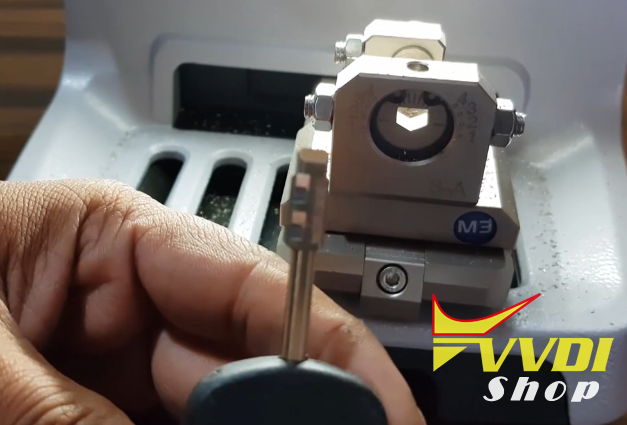

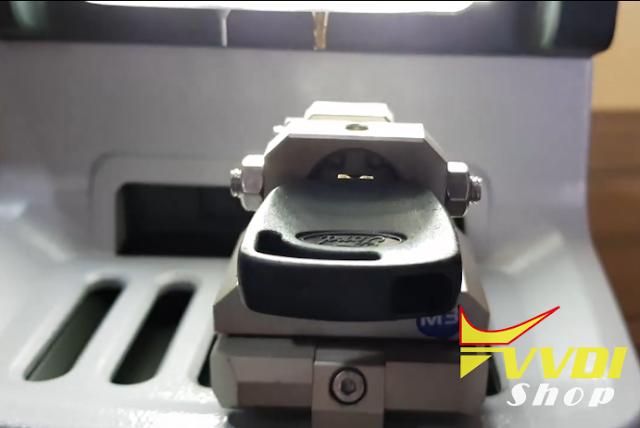

Align the clamp

Press Cutting Key and Continue

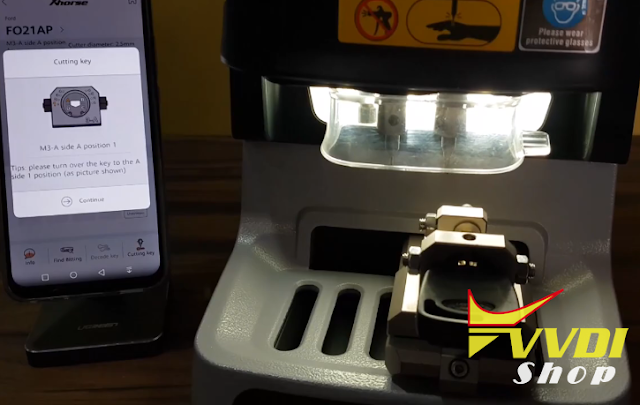

Turn over the key to the A side 1 position

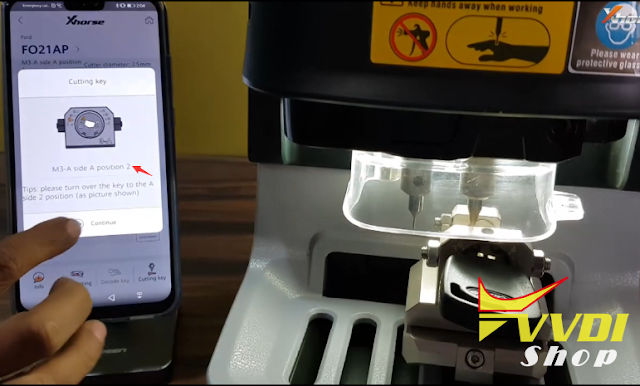

Turn over the key to the A side 2 position

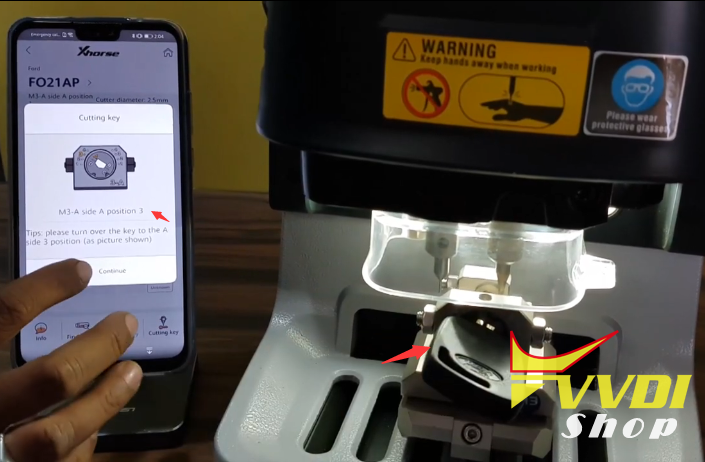

Turn over the key to the A side 3 position

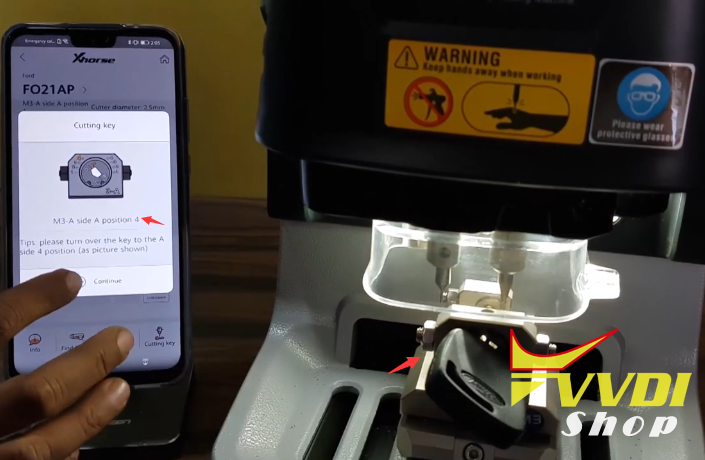

Turn over the key to the A side 4 position

Turn over the key to the B side 2 position

Turn over the key to the B side 4 position

Turn over the key to the C side 1 position

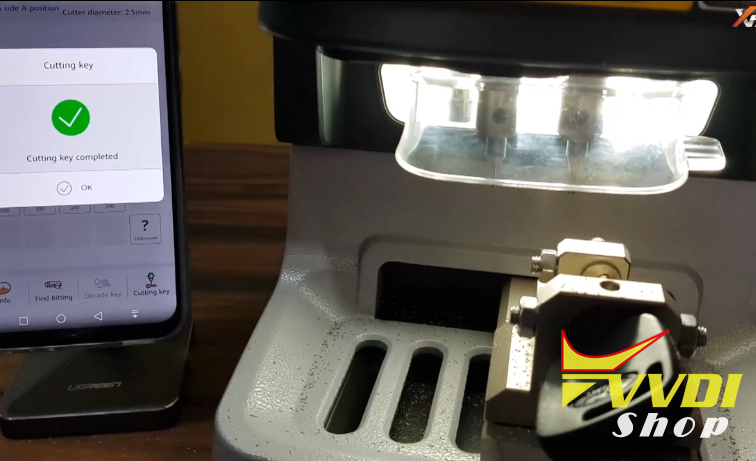

Condor Dolphin cut key completed

Done.

www.vvdishop.com

http://blog.vvdishop.com/cut-ford-tibbe-all-keys-lost-with-condor-dolphin-xp-005/

Cut Honda HON66 All Keys Lost with Condor Dolphin

Xhorse Condor Dolphin XP-005 key cutting machine cut Honda HON66 by key code.

Open Condor App

Connect cutter with mobile phone via Bluetooth

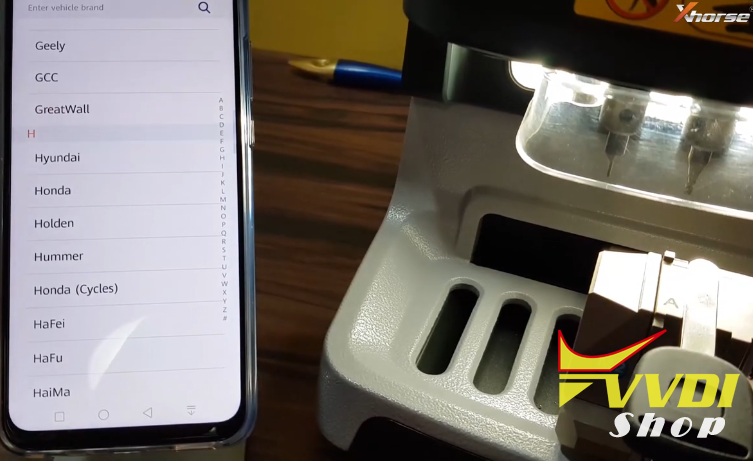

Select All Key Lost->Honda

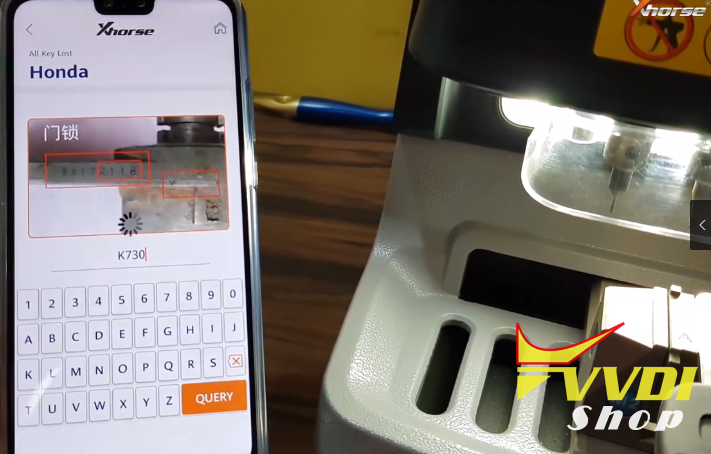

Enter key code and continue

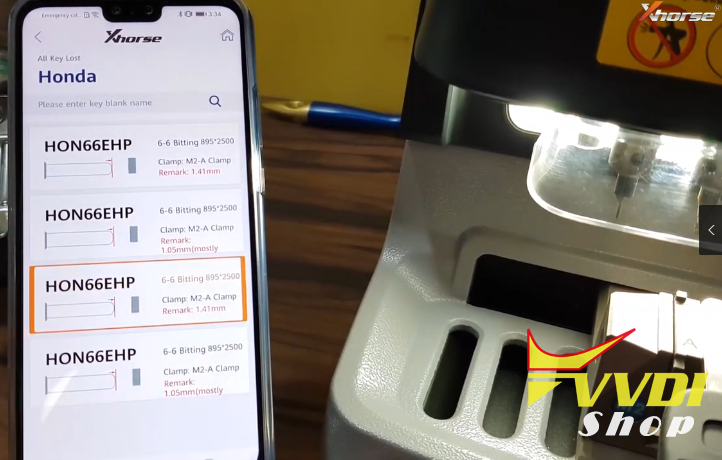

Select correct bitting HON66EHP Clamp M2 1.41mm

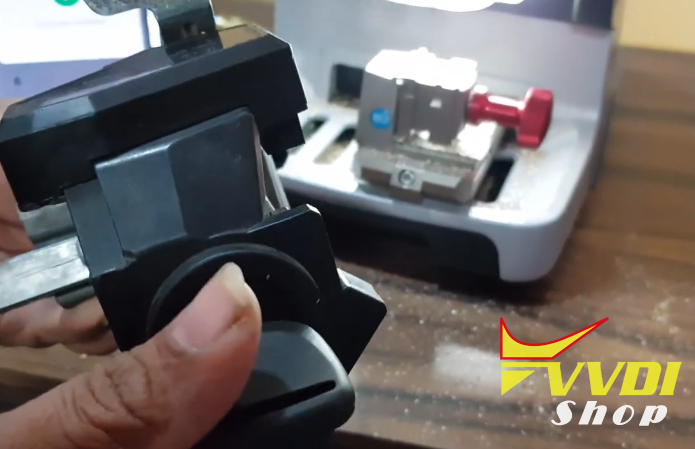

Align clamp M2

Select Cutting Key and Continue

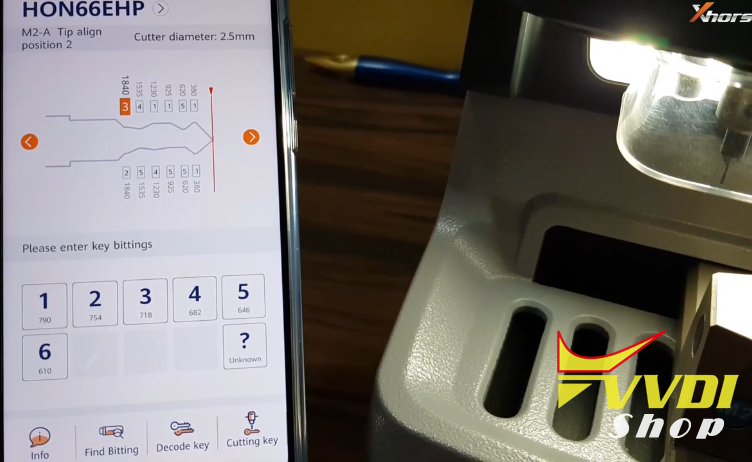

Cutting key in progress

Condor Dolphin cut HON66 key success

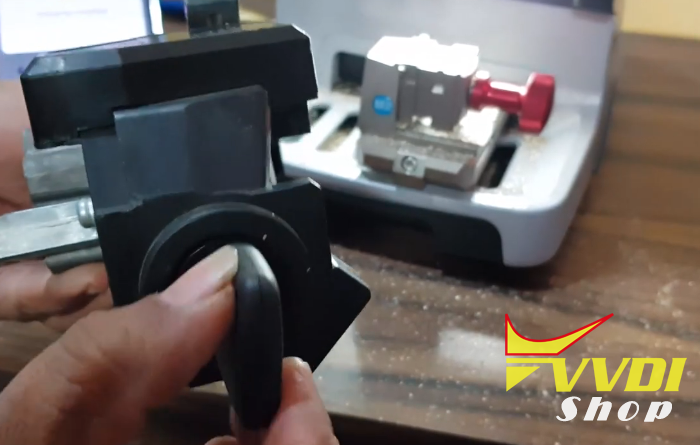

Test the new key

Success.

www.vvdishop.com

http://blog.vvdishop.com/xhorse-condor-dolphin-cut-honda-hon66-all-keys-lost/

How to share ID48 96bit license to VVDI2 and Keytool

If you have Xhorse VVDI2 with COPY 48 96 bit licence , you can share this service to vvdi key tool

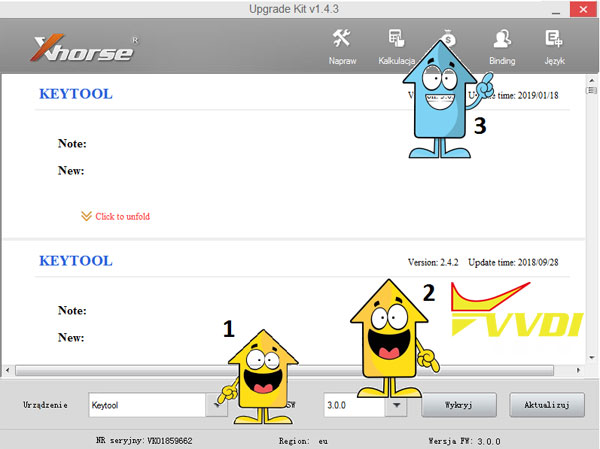

Open Xhorse Upgrade Kit , select device you connect to PC, click DETECT and after detected click BIDING

New window will be open in website browser

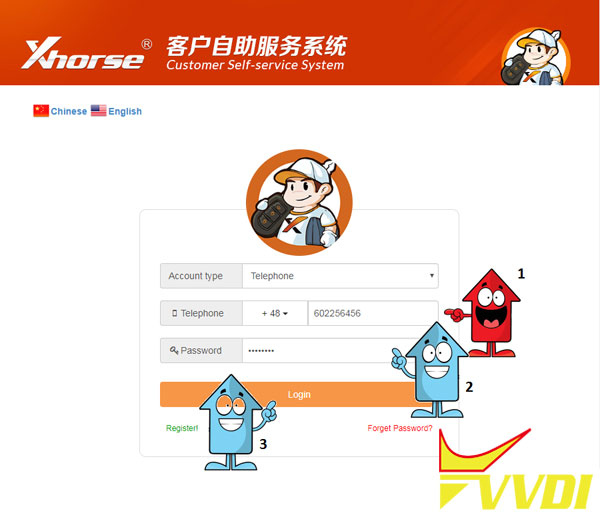

Please login via Phone number or mail (use this same what you use when you register)
if you not register, please register your device

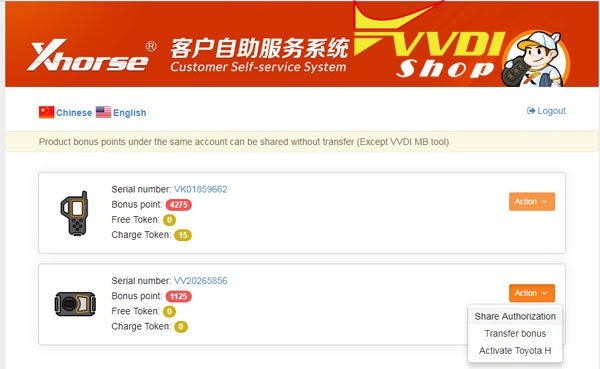

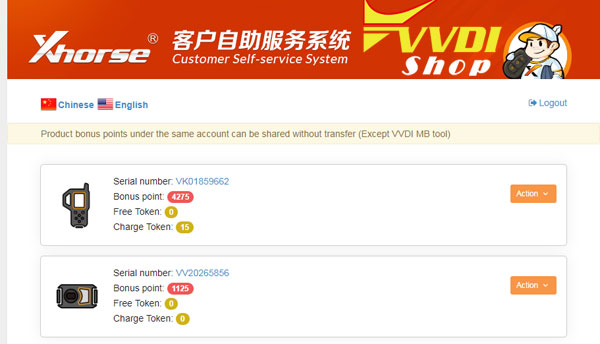

after proper login, you can see your devices registered

select VVDI2

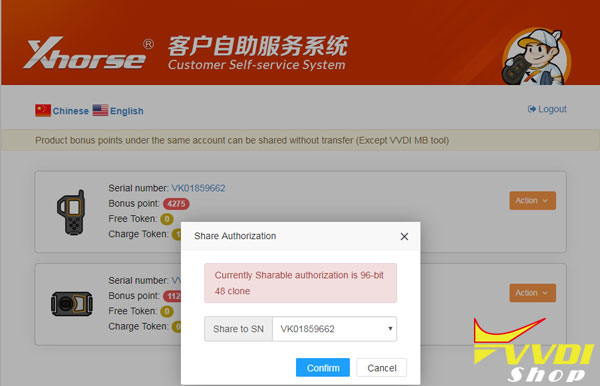

and select SHARE authorization

If you have more Keytool for example, check if you share licence to proper serial number

CONFIRM

(Please know, not all authorization can be shared)

http://www.vvdishop.com/service/how-to-share-id48-96bit-licence-between-vvdi-key-tool-and-vvdi2-9087.html

VVDI MB Adds W215, W220, W230 All Keys Lost

Xhorse VVDI MB BGA Tool key programmer software released to V4.8.0 adding Mercedes W215, W220, W230 password calculation when all keys have lost.

VVDI MB TOOL latest software version V4.8.0 update

************************************************** **********************
*** 2019-01-27
*** Require firmware V4.5.0
************************************************** **********************
===== BENZ V4.8.0 =====
1. This update no need update the firmware

2. Support W215, W220, W230 calculate password while all key lost:
a. No more need MCU’s de/soldering, very safe and quickly
b. Support W215, W220 get key password with slow method (All KEY LOST, 2-3hours)
c. Support W230 get key password with slow method (All KEY LOST, 2-3hours)
VVDI MB support all the FBS3 EIS while all key lost:
W166, W197, W212, W218, W246
W172, W204, W207
W216
W164, W251 (-2009)
W164, W251 (2009-)
W169, W209, W211
W202, W208, W210
W215, W220
W230
W203, W463, W639
W639(2009-)
W906
W221

3. Bugfix

download link:
Link 1
https://mega.nz/#!6gB1AA7Z!q7uCyEjetGtuSsOZuMp-P9qIspl07fRPh-tMFhnqJHIpassword:123456

Link 2
https://s3-ap-southeast-1.amazonaws.com/public-1251058331/download/product/vvdi-mb/software/VVDI-MBTOOLV4.8.0_password123456.rar

Until now Xhorse VVDI MB Tool all key lost EIS type

Until now (V6.1.0) Xhorse VVDI MB Tool supports all key lost EIS type(FBS3):

W166, W197, W212, W218, W246
W172, W204, W207
W216
W164, W251 (-2009)
W164, W251 (2009-)
W169, W209, W211
W202, W208, W210
W203, W463, W639
W639(2009-)
W906
W221

Some youtube guides:

VVDI MB Program Benz W211 All Keys Lost

VVDI MB bga tool calculate W204 W207 all key lost key pass

VVDI MB BGA Tool Program Mercedes W207 All Keys Lost and Change EIS

VVDI MB Program w212 w166 all keys lost

program Mercedes W202,208,210 when all key lost via OBD with Vvdi MB Tool

How To Make Key For Old W203 EIS All Key Lost By VVDI MB
