How to Distinguish Xhorse Universal Remotes Quickly?

 There are mainly 4 types in Xhorse VVDI Remotes: wired remote, wireless remote, super remote and smart remote. Following we’re going to talk about how to distinguish them quickly.

Wired Remote

Wired Remote corresponds to VVDI XK series. There are more than 60 exquisite appearance to choose from. When generating, we need to connect it to the device with a programming cable. Please do not install battery when generating, otherwise it will fail.

Wireless Remote & Super Remote

Wireless Remote corresponds to VVDI XN series, Super Remote corresponds to VVDI XE series. From the appearance, we can see that super remote has 2 triodes while wireless remote does not. Both remotes have an inductor on the back.

When they are generated, the battery needs to be installed. Otherwise, they cannot be detected by the device and cannot be generated.

Wireless remote supports electric 46, 47 and other models as well as some 13 transponder models. Note that Honda 46 and 47 need to be generated with wireless remote.

Super remote supports 8A(Toyota H/Hyundai 8A, cloneable), 8C(Haima), 8E(Honda), 4C(Corolla), 4D(60, 63, 70, 80, 83, 72G, 67, 69), 4E(64), 48(VW, Honda, etc.), 7935(33, 40, 41, 42, 43, 44), 7936(46), 11/12/13 models.

Smart Remote

Smart Remote corresponds to VVDI XS series. It can be mainly divided into NXP smart key and XM38 smart key.

The transponder in NXP smart key is 2953 or 29A1. NXP smart key has a wide range of styles, including KING Card, SW-007, etc. It doesn’t support 4D and 8A types. But other types such as 46, 47, MQB48, MQB49, 47 and 4A can all be supported.

XM38 smart key has an XM38 transponder inside. And it can be divided into 2 types: XM38 TOY.T Smart Key and XM38 universal smart key. They all have a 3D inductor on the back.

XM38 Toyota smart key can generate all prox options including 4D, 8A and all types supported by NXP smart key such as 46, 47, MQB48, MQB49, 4A, etc. XM38 universal smart key can generate all prox options expect for Toyota, including 4D, 8A and all types supported by NXP smart key.

www.vvdishop.com

Here is a table comparison among different vvdi remotes as well

Xhorse Wired Remote vs. Wireless Remote vs. Smart Remote vs. Super Remote

How to Tell Xhorse Wired, Wireless, Super and Smart Remote?

How to tell the differences among the Xhorse wired remote, wireless remote, keyless go remote, super remote in 4 methods.

All vvdi remotes are available here:  http://www.vvdishop.com/producttags/vvdi-remote.html

Method 1: Xhorse remote differences in outlook

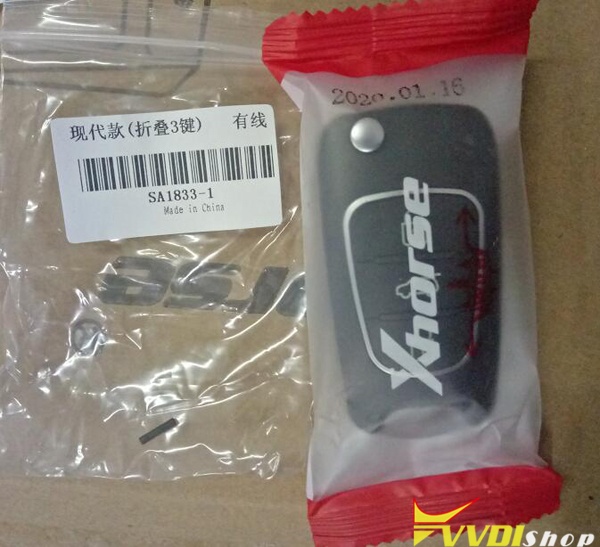

Xhorse wired remote: packed in red color, XK series

Xhorse wireless remote: packed in blue color, XN series

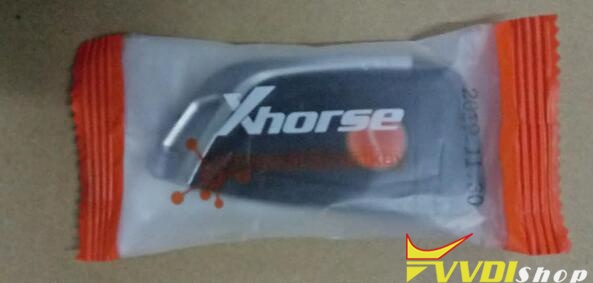

Xhorse smart remote: packed in orange color, XS series

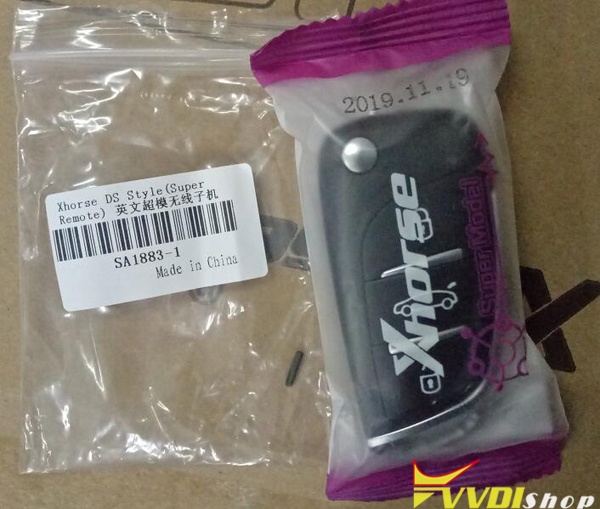

Xhorse super remote: in packed purple color, XE series.

Method 2: Xhorse remote differences in PCB

After tearing the pcb board, you will find they are the same in the shell, one question:

How to tell the difference among Xhorse wired remote, wireless remote, keyless go remote, super remote, the method is to use a screwdriver to open the shell and plwe know their differences.

Note: It is easy to have static electricity in winter. You need to find a metal to discharge the static electricity on your hand before opening.

1). Wired remote PCB

Comes with socket for cable connection programming remote. No Chip.

You need to add a immo chip (like 46 chip) into the wired key before starting the car normally.

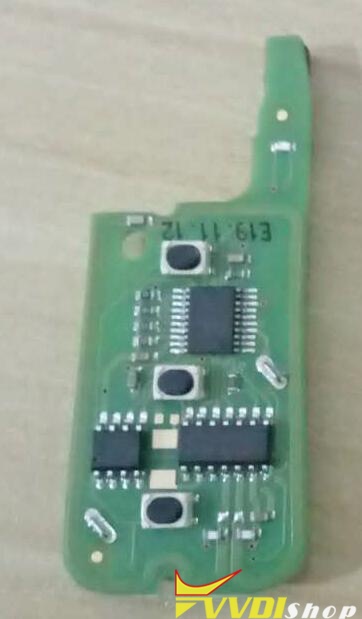

2). Wireless remote PCB

No socket (support generation or cloning directly without cables, no need to disassemble remote shell).

With NXP chip (supports the Hitag series, i.e ID46 and ID47), it generates chip in the method of wireless induction.

Wireless remote comes with nxp immo chip and can generate new key directly.

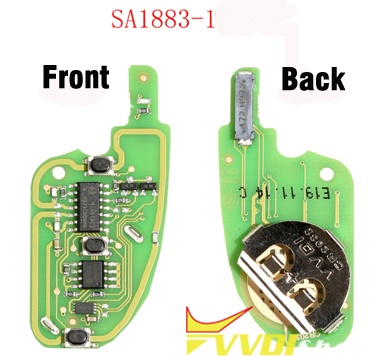

3). Super remote PCB

Built-in with Super Chip XT27A66, support more chip types the wired & wireless remote.

This image is from http://www.vvdishop.com/wholesale/xhorse-super-remote-key.html

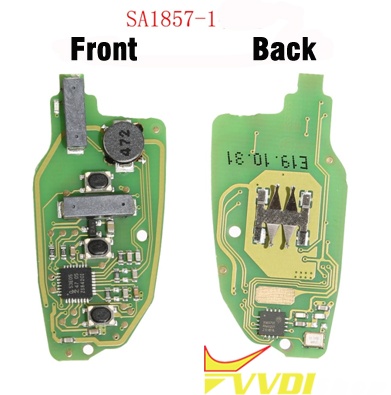

4). Smart/keyless go remote PCB

With 3 inductances.

Folding key.

Support newest cars.

FYI, the buttons of wireless / keyless go / super remote is much better.

Method 3: Xhorse remote differences in price

Single Wired remote price: less than 5 dollars

Single Wireless/Super remote price: 5 dollars to 7 dollars

Single smart remote price: 9 dollars to 10 dollars.

All Xhorse remote price list here: http://www.vvdishop.com/producttags/vvdi-remote.html

Method 4: obtain different bonus points

When generate Xhorse remote for the first time, you will get bonus points.

Wired remote = 25 bonus points

Xhorse wireless remote =40 bonus points

Xhorse super remote =30 bonus points

Xhorse smart remote =60 bonus points

With the bonus points, you can exchange some free Xhorse products i.e mini key tool, tokens, vvdi mb adapters etc.

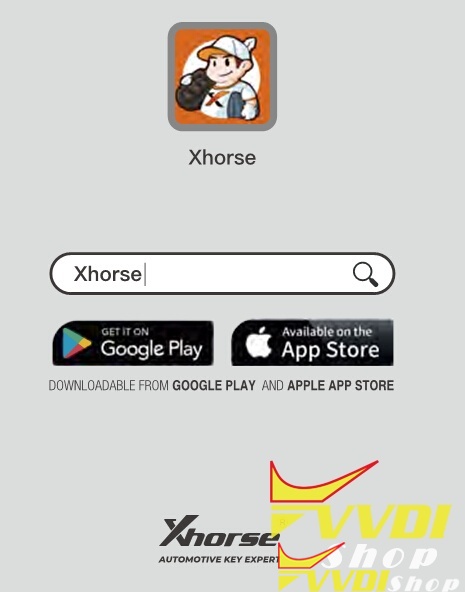

On the first page of Xhorse APP, click on “Shop”, then “Bonus points”, then “Function”, scroll down and select what you want with your bonus points.

To be upgrading…

www.vvdishop.com

http://www.vvdishop.com/service/vvdi-wired-vs-wireless-vs-smart-vs-super-remote.html

Xhorse universal remote smart key list with points

Xhorse wired remote = 25 bonus points (Type: XK…)

Xhorse electronic remote = 40 bonus points (Type: XN…)

Xhorse smart remote = 60 bonus points (Type: XS…)

Type XS… remote = 30 bonus points

In details…

Brand	ProductID	Product name	Model	Bonus points
XHORSE	SA1500-B	A6L Black, independent package	XKA600EN	25
XHORSE	SA1670-1	DS wireless remote	XNDS00EN	40
XHORSE	SA1671-B	Hyundai universal remote,black, independent package	XKHY00EN	25
XHORSE	SA1673-B1	Ferrari wireless remote,red	XKFE00EN	25
XHORSE	SA1684-B1	Ferrari wireless remote,white	XNFE01EN	40
XHORSE	SA1883-1	Xhorse DS Style(Super Remote)	XEDS01EN	30
XHORSE	SA1884-1	Xhorse Colorful Crystal Style(Smartkey)	XSCS00EN	60
XHORSE	SA1895-1	XKMQB1EN MQB common remote	XKMQB1EN	25
XHORSE	SA1896-1	XSMQB1EN MQB smart remote	XSMQB1EN	60
XHORSE	SA1499-1	B5 remote in black	XKB501EN	25
XHORSE	SA1499-B	B5 remote in black, independent package	XKB501EN	25
XHORSE	SA1499-D	B5 remote, 10 pcs/lot, blue	XKB503EN	25
XHORSE	SA1499-D2	B5 remote, blue	XKB503EN	25
XHORSE	SA1499-G	B5 remote, 10 pcs/lot, green	XKB504EN	25
XHORSE	SA1499-L2	B5 remote, orange	XKB505EN	25
XHORSE	SA1499-R2	B5 remote, red	XKB502EN	25
XHORSE	SA1500-1	A6L black	XKA600EN	25
XHORSE	SA1669-1	DS remote, black	XKDS00EN	25
XHORSE	SA1669-B	DS remote, black, independent package	XKDS00EN	25
XHORSE	SA1670-B	DS wireless remote, black, independent package	XNDS00EN	40
XHORSE	SA1671-1	Hyundai Style Universal Remote Key	XKHY00EN	25
XHORSE	SA1672-B	786 B5, dedicated remote, black, independent package	XKB507EN	25
XHORSE	SA1673-1	Ferrari remote	XKFE00EN	25
XHORSE	SA1674-1	Toyota remote	XKTO00EN	25
XHORSE	SA1679-1	Honda wireless remote	XNHO00EN	40
XHORSE	SA1682-1	Toyota electronic remote	XNTO00EN	40
XHORSE	SA1683-1	Honda electronic remote	XKHO00EN	25
XHORSE	SA1684-1	Ferrari type (white) wired Remote (with key slot)	XNFE01EN	40
XHORSE	SA1770-1	B5 type (folding 2 buttons)	XKB508EN	25
XHORSE	SA1783-1	VVDI BE key Pro improved version	XNBZ01EN	40
XHORSE	SA1833-1	Hyundai type (folding 3 buttons)	XKHY02EN	25
XHORSE	SA1862-1	Audi  type (4 buttons – with panic)	XNAU02EN	40
XHORSE	SA1863-1	XHORSE universal remote key sets	XKRSB1EN	25

New arrival:

Xhorse remote Hyundai type (folding 3-button)

Xhorse remote keys are available at: www.vvdishop.com

How to obtain bonus points from VVDI remote keys?

How to get bonus points from VVDI Remote?

Bonus points comes only from remotes, cannot be purchased. you can only buy tokens.
You can get

25 points from remote with cable ,

40 points from wireless remote

and 60 points from universal smart key, the point will be record in your device once you use it at the first time.
Remotes can be coded, decode /prepare many times but points you can take from remote only once.

If you use VVDI BE Key pro, you will get 200 points for free. But the token can be used to exchange to token for VVDI MB online password calculation only.

How to check the Xhorse Points?

The bonus points can be stored on the Xhorse points server by using Xhorse Upgrade Kit software.

The bonus points can be easily checked from the Xhorse Customer self-service system .

FAQ VVDI Bonus Points System:

Q1: Can anyone explain what the Bonus Points Reward System is please?

Are there any further expenses to be paid to Xhorse after the initial purchase of the vvdi key tool (other than extra remotes and chips)?

For example is there an annual fee for the latest software updates?

A1:
The bonus point system is meant to reward you with points each time you use the Xhorse remotes.

Once you accumulate enough points they can be exchanged for freebies or money of software authorizations for other Xhorse programmers etc.

Q2: Does the Remote have region limitation?
A2: One thing to be aware of though regards these remotes.
All English version remotes can be used for all overseas device (Except India(in) Malaysia(ma)/China(cn)version), such as Europe(eu)North American(na) they can use the same version remotes.

Q3: Update for free except the extra remotes and chips?
A3: As it stand at the moment, there is no fees associated with using the tool, and all updates are free.

Q4: VVDI Key tool Clone 48 96bit authorization
A4: The only thing that you will need to pay for (if you want this function once released for key tool) is the 96bit ID48 cloning.

Keytool user can buy a Clone 48 96bit since 1.04.2018

1500 free points for calculations , this same as VVDI2

since 1.04.2018 all users who have 48 96 bit activations in VVDI2 can combinate Keytool + VVDI2 and use Keytool to clone 48 as well.

Q5: How much points does VVDI Remote function give you?
A5: From Xh remote with cable you get 25 bonus points, from Xh-wireless remote you get 40 bonus points.

Q6:How to collect the point? Mine Is always collecting 0 points.
maybe somebody use your remote before you get it ?
A6: once you generate points from remote – you can not get it again simple check points via Upgrate Kit.

Related manual:

How to exchange Xhorse VVDI 200 Points to 1 Token?

How to Download Points from Xhorse VVDI MB BE KEYS

How to check Points in Xhorse VVDI2 Key Programmer?

http://www.vvdishop.com/service/how-to-get-bonus-points-from-xhorse-vvdi-remotes-8083.html

Read 2014 Kia Sportage pin code with VVDI Key Tool

As titled, here’s the step-by-step guide on 2014 Kia Sportage keyless entry remote fob programming using Xhorse VVDI Key Tool remote generator.

Device used:

VVDI Key Tool

VVDI universal remote for VVDI Key Tool

Xtool X100 Pad2 Pro

Step 1: Read PIN Code

Insert original remote into left coil of Keytool
Select Automatic Detection Clone

Detect remote type: ID46 HITAGS PCF7936

Connect vvdi remote pcb with VVDI Keytool
Select Remote Program->Asia->Kia->Sportage->NYODD4TX1306-TFL 14-16

Remote frequency 433MHZ
Writing data

Write data success.

Now start to read the pin code via the key

Select Mode1 data acquisition mode
Put the KEYTOOL head antenna near the ignition coil, press OK to sniff data

Insert the original key into the left coil and press OK to start the calculation.
In calculate progress, don’t move the key.

Calculate success.

Move to get More Function

Select Hyundai Password

VVDI Key tool read password success.

Step 2: Program remote

Now we will do remote programming with Xtool X100 PAD2

Select Immobilizer->Kia->Program Immobilizer/Remote->Select from type->Program remote->16 PIN->Type 1->Program remotes

Switch on ignition and turn off, then remove key

Program remote: press LOCK or UNLOCK for more than 1 sec.

Remote programming complete, click YES to program next remote.

Press LOCK or UNLOCK button of vvdi remote key for more than 1 sec

Program complete

Step 3:  Make key programming

Now we make key programming process

Select Type4 (CAN)->Program keys

Insert a key to be programmed, turn ignition on.
Xtool X100 PAD2 will ask pin code to access.

Enter pin code read by VVDI Key Tool
1st key program success

Press YES to program next key.
Insert next key to be programmed. Turn ignition on.
2nd key program success

Turn ignition off, wait for 10 seconds, then turn ignition on
Programming is completed.

Test the new vvdi remote, works no issue.
