Xhorse Condor Cut BMW 320 E46 EWS Key

 How to duplicate a BMW 320 E46 1999-2006 key by Xhorse Condor XC-Mini Plus key cutting machine?

Fix the original BMW key on clamp, press

Key duplication >> BMW >> 320 >> E46(1998-2006) >> Confirm >> Key decode

Condor XC-Mini machine will start decoding…

Press “Cut”.

Condor Mini Plus machine will start cutting…

Wait until one side cutting finished, then turn over the key to cut other side.

Done!

Using Xhorse Condor XC-Mini Plus Automatic Machine to copy a 320 E46 BMW key is successful.

https://www.vvdishop.com/

Condor Mini Plus and Condor Dolphin XP005 which is better?

2019 new Xhorse key cutting machines Condor XC-Mini II vs. Dolphin XP005.

Key Cutting Machines	Condor XC-Mini Plus	Condor Dolphin XP-005

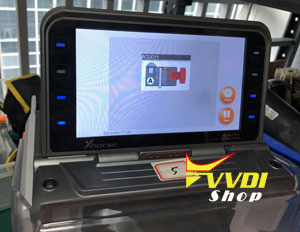

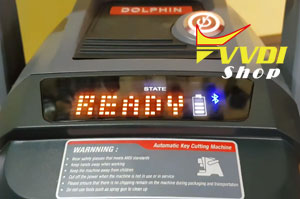

Screen	LED Display 1024×600 Adjustable Touch-Screen	Small screen showing battery and Bluetooth status
Spindle	Electric spindle brushless 300, built-in angular contact bearing	Mechanical shaft +60W DC motor (with a foreign model)” “Electric spindle brushless 300W, built-in angular contact bearing
Transmission mechanism	Ball screw	T-shaped screw + anti-backlash nut
Guide	Cross-track	Roller guide
Shell	Plastic outer casing body is formed by body alloying die casting	Base aluminum alloy die-casting, the upper body is made of plastic shell and the body is made of integrated aluminum alloy die-casting.
Operating system	Stand-alone/ mobile phone APP	mobile phone APP only
Battery	Without built-in battery. Power supply adapter(optional)	With built-in battery. 3 hours to fully charge. Full battery cut up to 30 keys
Built-in Database	Yes	No
All Keys Lost	Yes, offline operation	Yes, must enable network connection.*
Accuracy	more accurate	Less accurate
Offline operation	Standby	No
Service life/ mechanical endurance	Longer	Shorter
Weight	Net Weight: 18kg Gross Weight: 22.9kg	Net Weight: 15kg Gross Weight: 18kg
Motor Rotation Speed	9000rpm	10000-13000RPM
Cutting power:	200W	100W
Protection cover	Comprehensive protection	Simple protective cover. . Smaller, better wear goggles
VVD binding	Yes	Yes
Clamp	M1 clamp (included) M2 clamp (included) M3 clamp (optional) M4 clamp (optional)	M1 clamp (included) M2 clamp (included) M3 clamp (optional) M4 clamp (optional)
Warranty	3 Years	1 Year
Update	Update online via Xhorse Update Kit	Update online via Xhorse Update Kit
Price	US$3,099 Free Shipping	US$1,950 Free Shipping

*Once enable network connection in Condor Dolphin Xp005, the all keys lost database is the same as Condor Mini Plus offline mode.

In Conclusion:

Condor XC-Mini Plus is powerful and faster than Condor Dolphin. With built-in database can do all keys lost offline.  More accurate than dolphin.

Condor Dolphin is based on mobile app, it is smaller, lighter and much cheaper.

It depends your budget. Condor Mini Plus is a good buy in a long run.

Condor XC-Mini Volvo HU56R Thickness problem solution

Q:

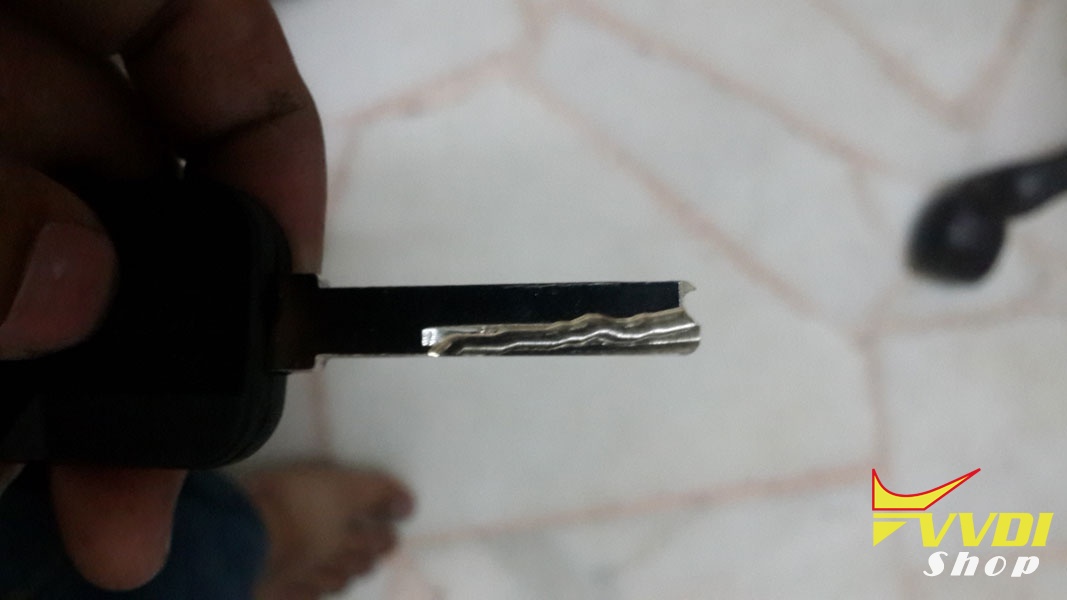

I just bought condor mini key cutter for one month, and already update to latest firmware, v2.1.1. Volvo HU56 thickness setting wrongly, it should be 2.5mm, and cutting thickness should be 1mm. volvo v40 key eats like 0.6 or more mm deeper than it should. it ate the clamp!!! and not very accurate.

A:

About Volvo HU56R condor machine database the key thickness is 3mm and cutting depth is 1.25mm
but if fact,users key is different, thickness is 2.5mm and cutting depth is 1mm.
so users can use define key data first ,named ‘HU56R-1_U’,later Xhorse will find a better solution.
1.connect PC to Condor machine
2.use attached software, sync’HU56R-1_U’ to condor xc-mini key cutting machine
3.select ‘cut by bitting’—enter ‘HU56R’ you will find HU56R-1_U,then cutting.

Note: Contact Xhorse engineer to get the define key data, skype: Xhorse-Support2.

Xhorse Condor Mini Series Number KM03 vs. KM02

This is for your information. It’s different between Xhorse Condor XC-Mini key cutting machine KM02xx and KM03xx series

What is the difference between KM02xx and KM03xx series ?

The difference is:
motherboard, driver board, touch screen and add a fan near power.
KM03xx supports Bluetooth function.

Btw, you can activate Bluetooth on Laptop/Tablet or Smartphone and press the “search for machine” button in Instacode and it will pair with Condor Mini.

How do you know your machine is KM02 or KM03?

Mate,turn on the machine you will find machine SN and software version in main-interface.

Where to get KM03 with Bluetooth?

Here you go. http://www.vvdishop.com/wholesale/xhorse-condor-xc-mini-plus-key-cutting-machine.html

Condor Mini KM03 test report:

Today tried to cut HU55P, cutter started to the other direction and cut into the jaw

I cut some HU64 and never had a problem with it.

100% hu64 is ok with condor xc007 and condor mini km03 tested by me many times…

I used it to cut HU100. Worked like a charm!!!

HU66, HU49, HU83 cutting OK.

Recently got the Condor Mini.

Seems good. However if the dust cover could have been designed a bit away from key it would’ve been nice.

I haven’t no any problems with Condor XC-Mini

cut keys blade HU64-3 without any problems

Just got a new km03 from vvdishop.com. So very new to this. Been very successful up till now. Tried to decode a Renault megane emergency key Card type. Renault-megane-2003- Condor checks the clamp position ok then goes looking for the tip of the key but misses the tip with the prob going down the middle of the cut for 5mm then backs off as it thinks no key is in the clamp. Is it operator error or a bug. Look like the probe is not low enough to bump into the key tip. Other than this I’m very happy.

Condor KM02 feedback:

I have machine with SN starting with KM02.

To cut keys HU92 BMW need to be in 1.00MM, when you select HU92 the device will ask you to chose between Land ravor and BMW, Land Rover came with 1.00mm and BMW with 1.25mm, if you try to cut with 1.25mm the key will not turn.

I have proved with 4 different machines and 3 different cars.

http://www.vvdishop.com/service/xhorse-condor-xc-mini-series-km03-vs-km02-9085.html

How to connect Condor XC-mini with laptop?

Question:

i have medium cutting speed, 2 passes on, maybe i should changed.

i tried today to use bluetooth with laptop instacode and condor xc-mini, but i cannot PAIR the device, i cannot find any bluetooth setting on xhorse condor, how do i connect? no info in user manual.

Solution from Xhorse expert:

You don’t need to do anything on condor mini. Activate Bluetooth on Laptop/Tablet or Smartphone and press the “search for machine” button in Insta-code and it will pair with Condor Mini.
