How to Reset Xhore VVDI Key Tool Plus System?

 We had a customer whose xhorse key tool plus pad every function selected was not responding. The problem was settled after a factory reset and update via Hotspot.

How to Reset Xhorse VVDI Key Tool Plus Network , App and tablet?

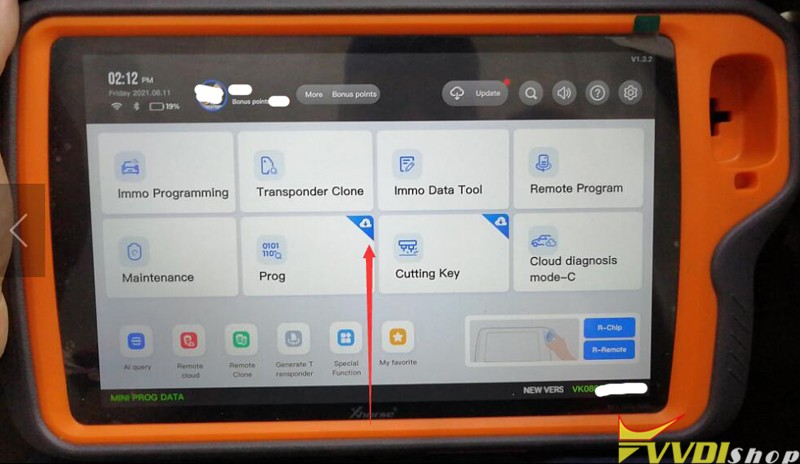

Select the “cloud” icon on the right top of the function you desired

Home menu

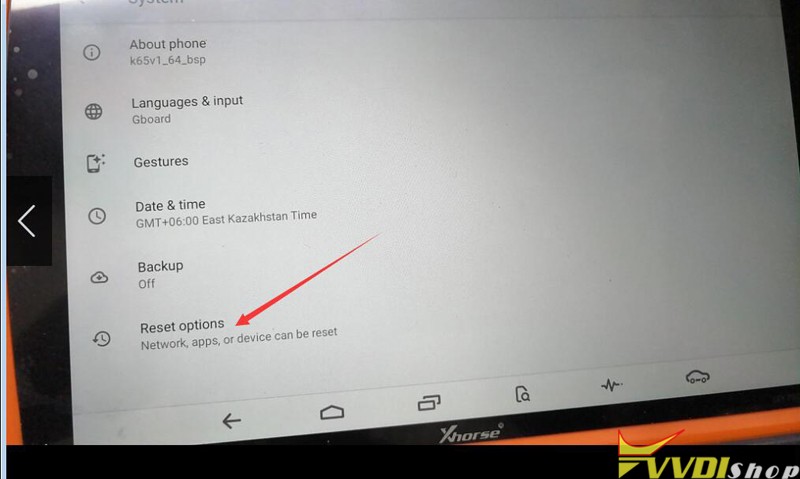

Reset options

System

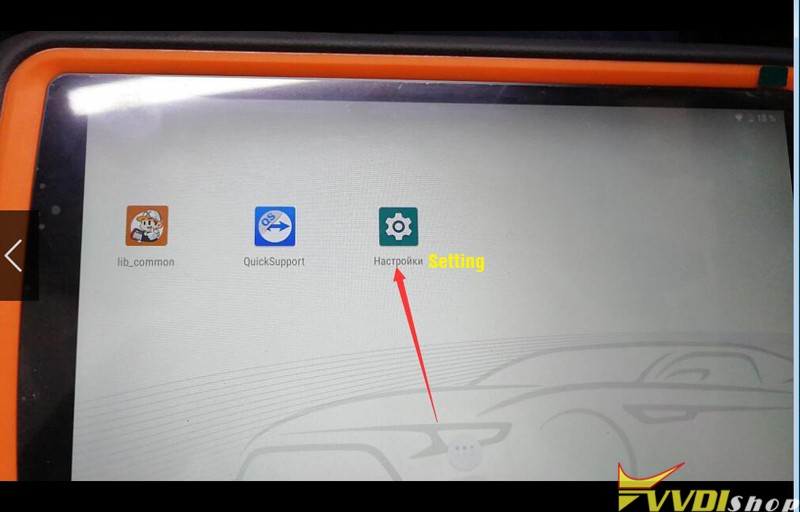

Choose Setting.

Then run an upgrade via Hotspot.

https://www.vvdishop.com/service/reset-vvdi-key-tool-plus-to-factory-setting.html

How to Cut Hon66 Laser Key by Xhorse Dolphin XP-005?

 Today I’m gonna show how to use Xhorse Dolphin XP005 + VVDI Key Tool Max to copy a HON66 laser key.

Prepare a Honda original key & a new key blank.

Connect Key Tool Max with Dolphin XP005 via Bluetooth to smart control.

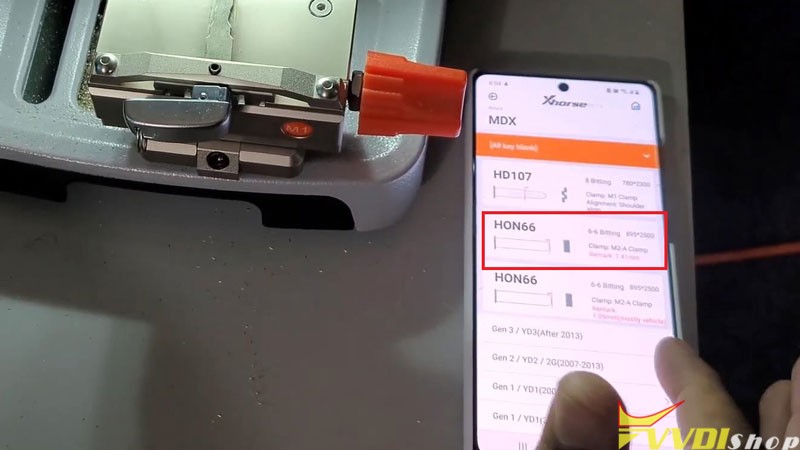

Vehicle database >> Acura >> MDX >> HON66 >> OK

Install M2 clamp, and fix the original key on it as prompts.

Decode key >> Continue

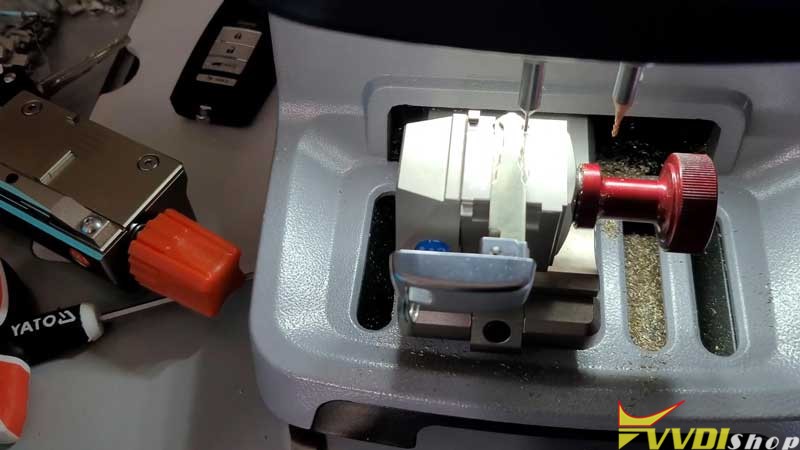

The Dolphin XP005 Machine starts coding key…

Wait until coding completed.

Take out the key to replace a key blank to fixed it on.

Go to Key Tool Max,

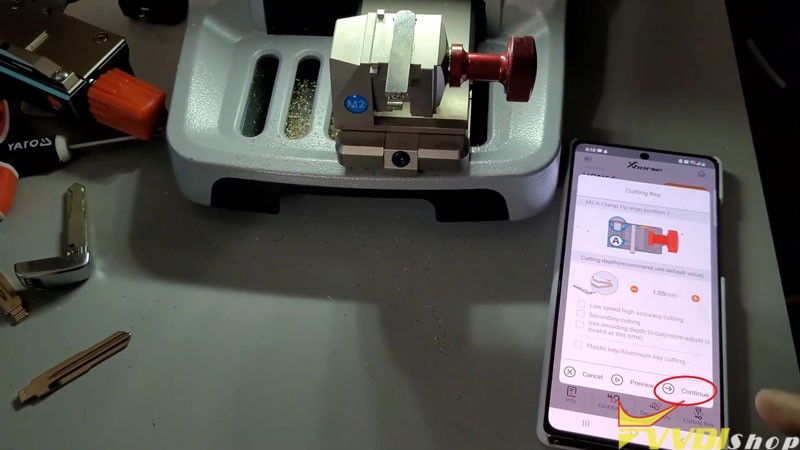

Cutting key >> Continue

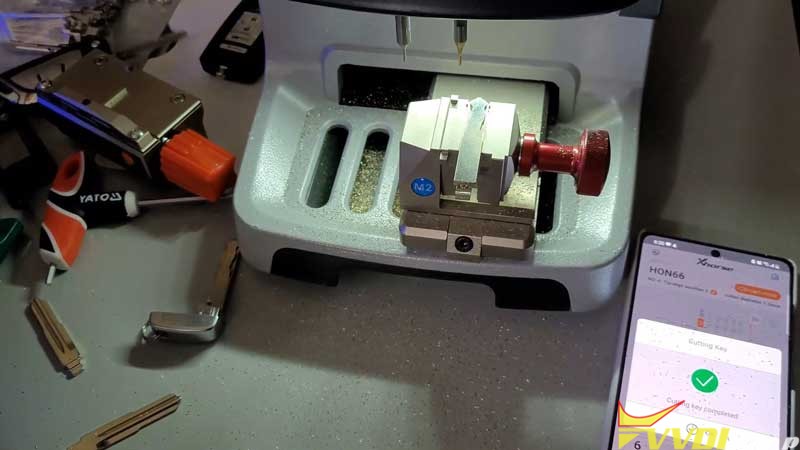

Dolphin XP005 machine starts to cut the key…

One side cutting is finished.

Turn over the key blank to cut the other side.

Just repeat operations as before.

…

Okay, finally key cutting is done.

Look at that new key, it matches perfectly, same as the original one.

It can open the car door.

Completed!

This is a quick tutorial on using Dolphin XP005 key cutting machine to cut a HON66 key.

https://www.vvdishop.com/

Xhorse Key Tool Plus Program Key to Honda CRV 2020

 Xhorse VVDI Key Tool Plus can add a smart key for Honda CR-V 2020 by OBD successfully. Following is a quick demonstration.

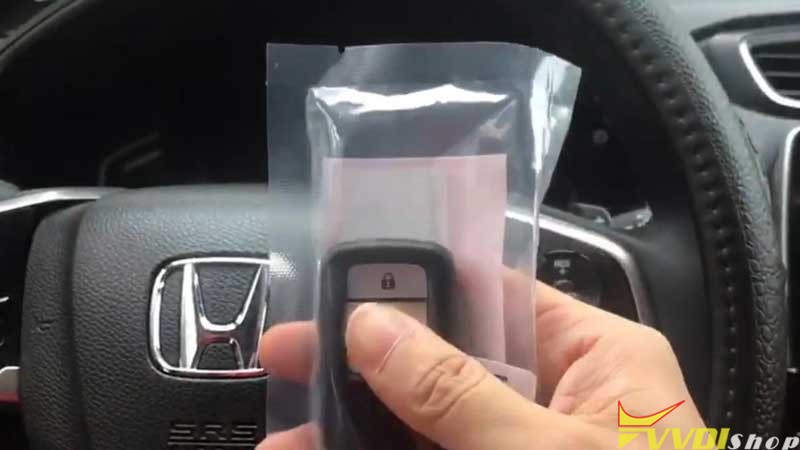

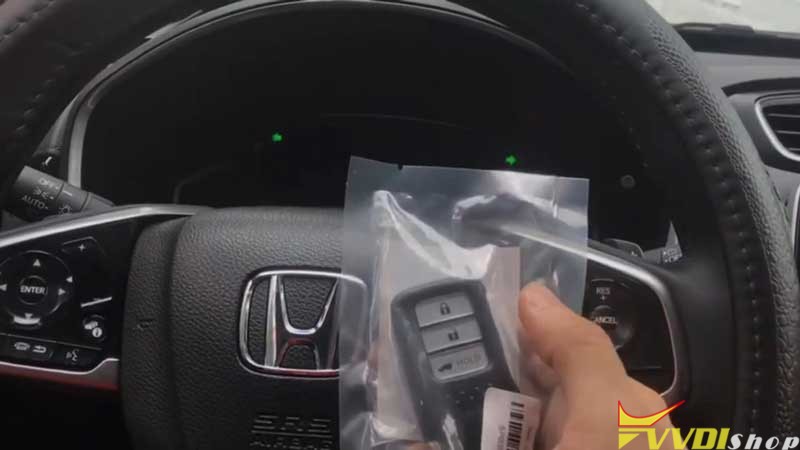

Using a Honda working key and a new Remote Key, ID47- 433 Mhz.

Connect VVDI Key Tool Plus Pad with OBD, press

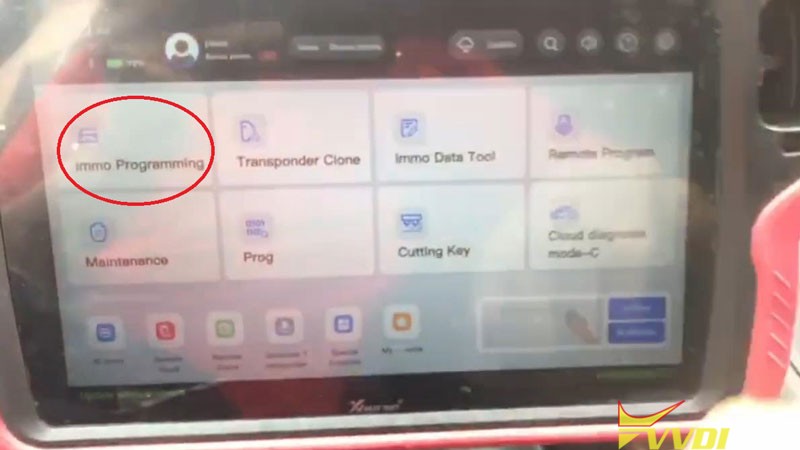

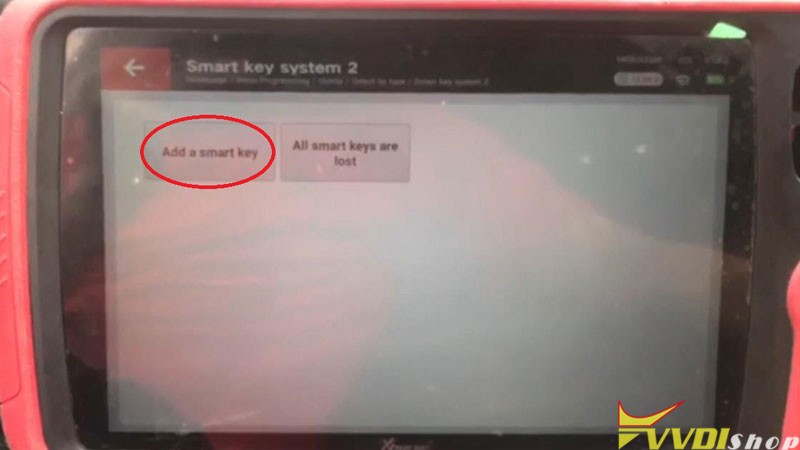

Immo programming >> Honda >> Select by type >> Smart key system 2 >> Start programming >> Add a smart key

Simply follow the instructions to operate:

Turn off ignition switch.

Switch ignition on.

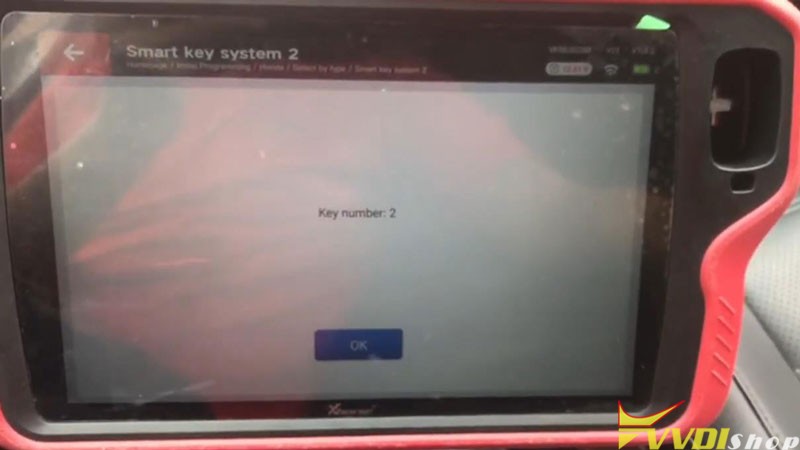

Confirm key number:2 , press “OK”.

Take all smart keys out of the car.

Put a programmed smart key inside the car.

Take all smart key out of the car.

Put the new smart keys in the car.

Turn off ignition switch.

Switch ignition on.

Turn off ignition switch.

Switch ignition on.

Whether indicator light is out? Yes

Turn off ignition switch.

Switch ignition on.

Turn off ignition switch.

Switch ignition on.

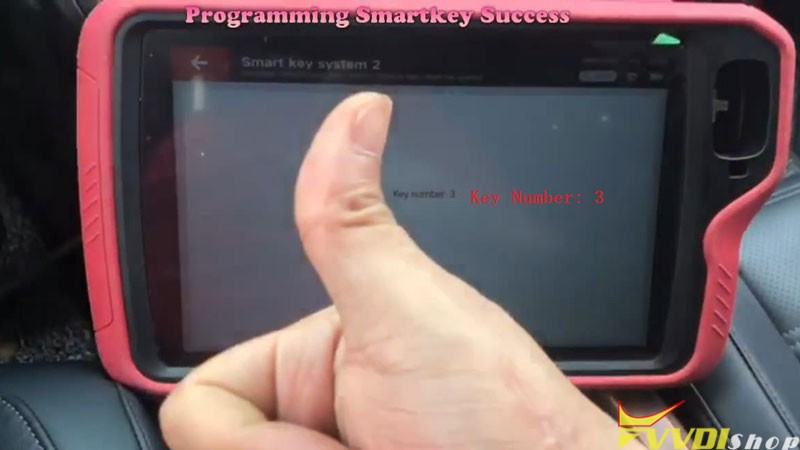

Key number is 3 now, press “OK”.

Smart keys registration completed!

Test the new key, it can work normally.

Add key has done!

This is how to use VVDI Key Tool Plus to program a smart key for Honda CR-V 2020 successfully.

https://www.vvdishop.com/

Xhorse VVDI Prog Read and Write Opel Insignia 2M42E

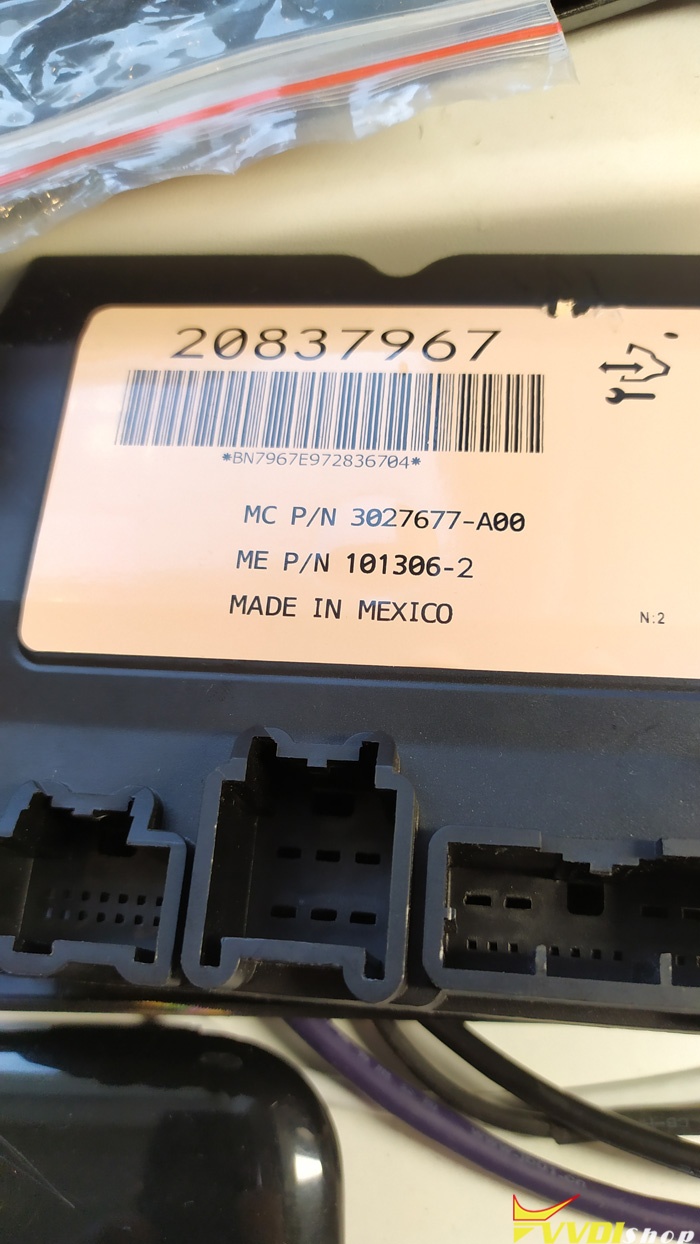

 Confirmed! Xhorse vvdi prog read and write Opel Insignia 2011 year body control module (BCM) mask 2M42E no issue.

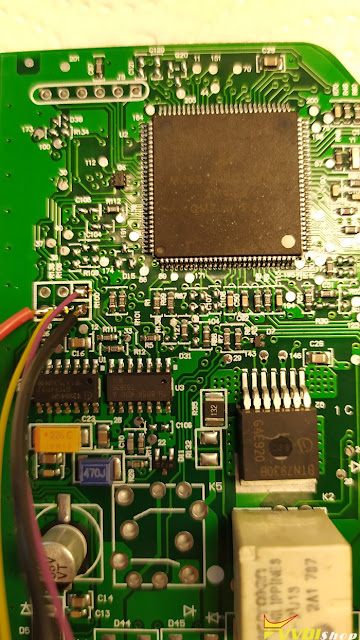

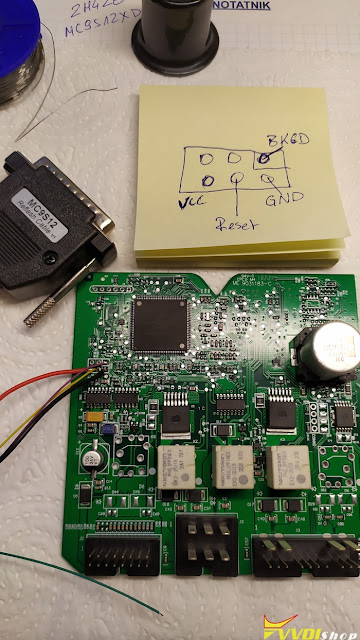

vvdi prog software does not give wiring diagram. Here’s pinout provided by DK Veteran. Hope it helps.

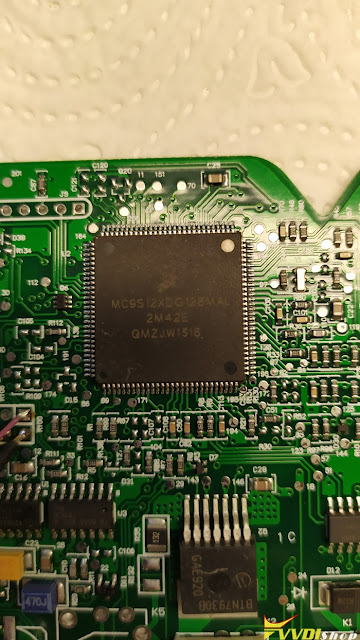

Mask 2M42E
MC9S12XDG128MAL

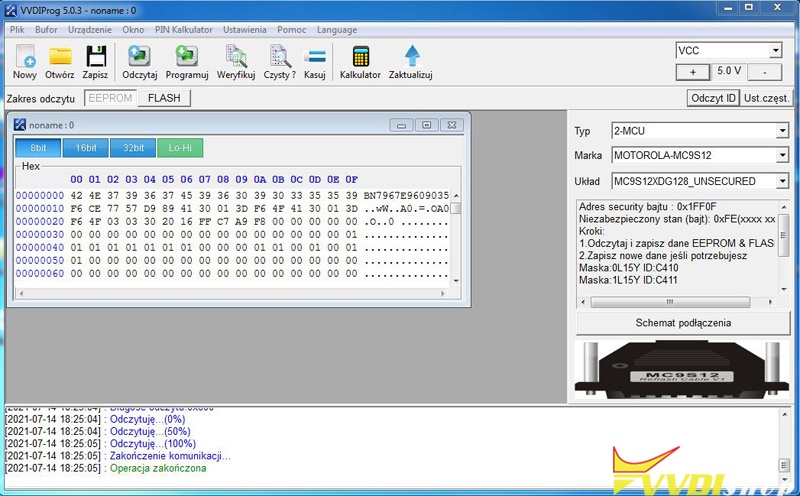

in VVDI Prog software, you select MCU – MC9S12 – MC9S12XDG128_unnsecured

www.vvdishop.com

Xhorse Dolphin XP007 vs. Condor XC-002 Comparison

 Lots of customers want to know what are the differences between Xhorse manual Key Cutting Machines: Dolphin XP007 & Condor XC-002. Many of them do not know how to choose. Go ahead to the comparison below to find your answer.

Dolphin XP007 vs. Condor XC-002 Comparison

Item	Dolphin XP007	Condor XC-002
Price(may vary according to marketing sale)	$689	$1199
Dimension	282×246.5x355mm	298x445x525mm
Weight	14kg	28kg
Battery	Built-in lithium battery	×
Material	All aluminum body structure	Precision-machined high-strength aluminum die-casting chassis
Clamp	End milling machine with 3-in-1 clamp.	Horizontal milling machine with 4-in-1 clamp.
Cutting Speed	2 switches for adjustment speed, switch1: 7000rpm, switch2: 10000rpm.	8000-10000rpm, supports setting speed by manual.
Key types supported	2 track external, 4 track external, channel track, 4 track internal, dimple.	2 track external, 4 track external, channel track, 4 track internal, dimple.
Warranty	1 year	3 years
Benefit	1 free token per day for VVDI MB and Key Tool Plus	1 free token per day for VVDI MB and Key Tool Plus

What are the differences?

Xhorse Dolphin XP007 is with built-lithium battery, much lighter & smaller for carrying. It is an end milling machine, only to switch 7000rpm/10000rpm for cutting speed. It is cheaper than XC-002, providing 1 year warranty.

Condor XC-002 is a horizontal milling machine without built-lithium battery, supports to set cutting speed from 8000-10000rpm by manual. It features with high-strength die-casting chassis which makes it stronger and heavier. It provides 3 years warranty.

What are the similarities?

Both Dolphin XP007 and Condor XC-002 support to cut same key types. Both can support cutting speed up to 10000 rpm, both should operated by manual.

Both can be combined with vvdi mb or key tool plus to get 1 free MB online calculation token per day.

Recommendation

Dolphin XP-007 is suitable for locksmiths who requires a smaller and lighter manual machine. It is convenient for carry out or door to door service.

Xhorse Condor XC-002 is suitable to play its role in a workshop. It is much stable and stronger to have a longer warranty for use. It should be a all-right investment for locksmith.
