How to use VVDI MB to calculate W204 key password from EIS

Here’s the step-by-step guide to calculate MB W204 EIS all keys lost key password using VVDI MB BGA Tool and power adapter in 20 minutes.

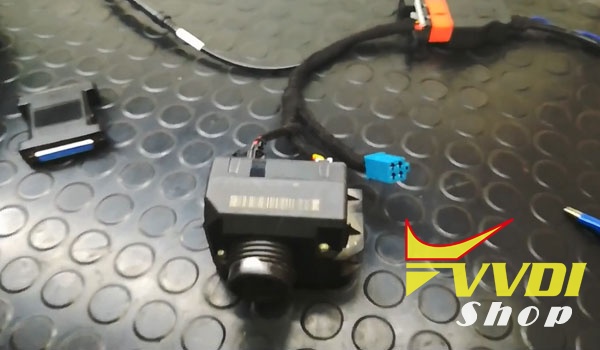

Connect W204 EIS using VVDI MB EIS cables

now follow the steps
Open VVDI MB software

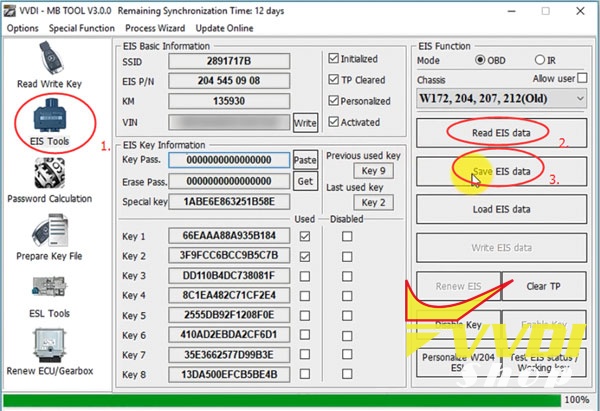

Select EIS Tools->Read EIS data->Save EIS data

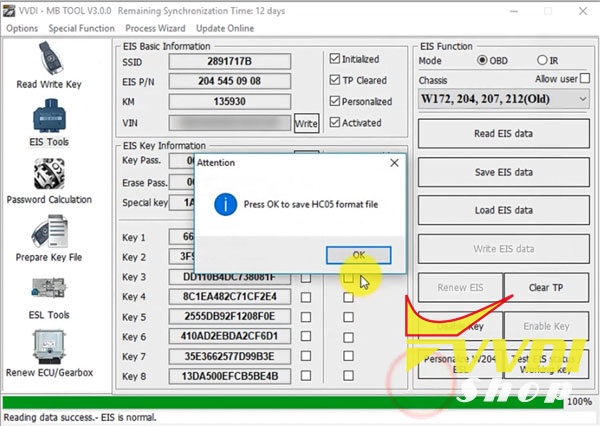

Save eeprom bin file and HC05 format file

Select Password Calculation

Tick lost all working key

Select chassis W204

Click on Data Acquisition

1. This opeation need about 18 minutes. DON’T perform this opeartion on the car!!!
2. Connect EIS with correct able before continue
3. Don’t connect ESL to cable.

Now we connect the adapter

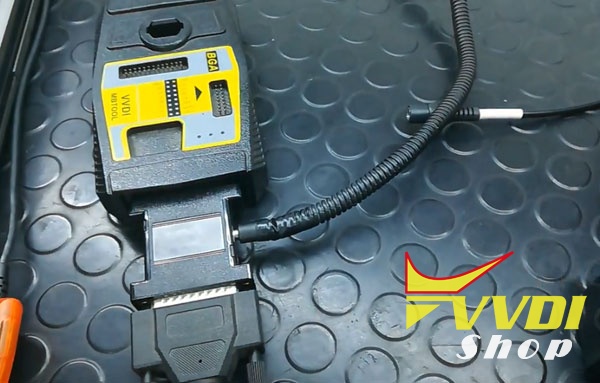

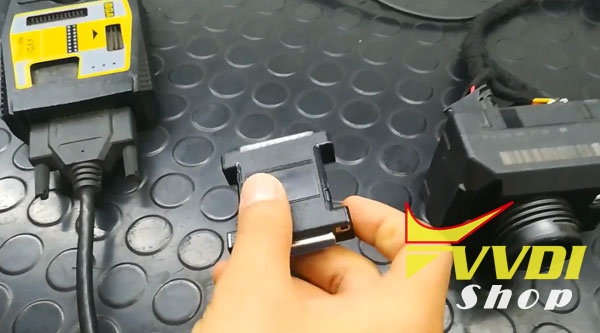

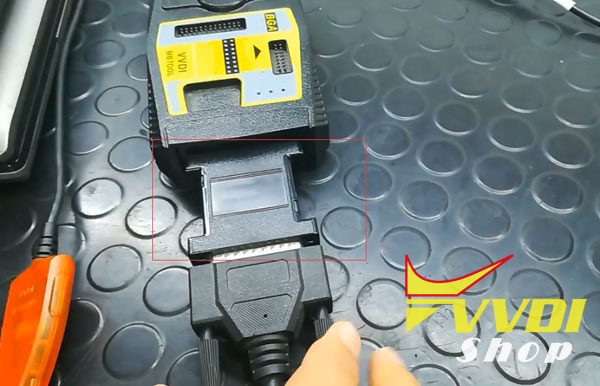

Connect MB power adapter (VVDI MB speed adapter) with VVDI MB

Click YES to continue

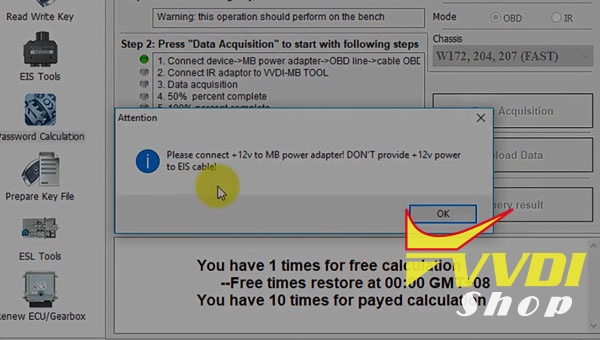

Please connect 12V to MB power adapter! DON’T provide 12V power to EIS

Remove 12V power adapter from EIS cable and connect it to MB power adapter

Click YES

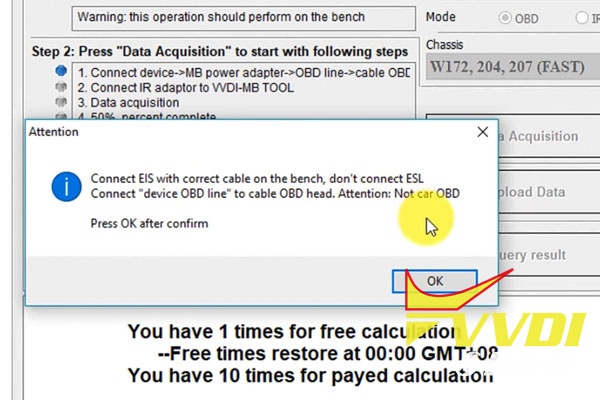

Connect EIS with correct cable on the bench, don’t connect ESL.

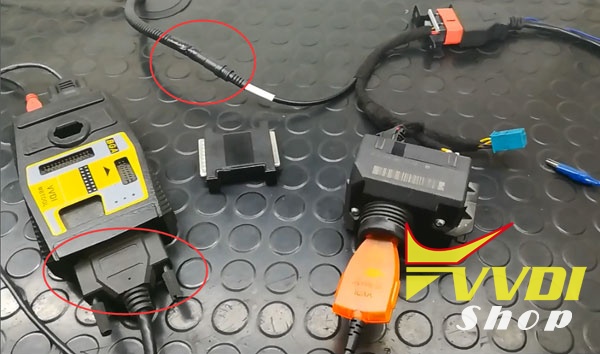

Connect “device OBD line” to cable OBD head. Attention: No car OBD

Press OK after confirm

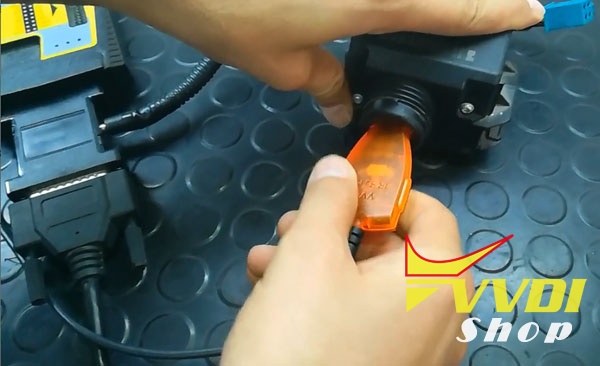

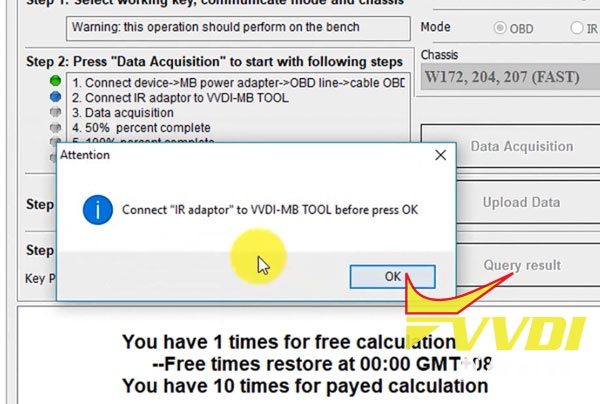

Connect “IR adapter” to VVDI MB tool before press OK

Press OK
Now you have to wait 18-25 minutes

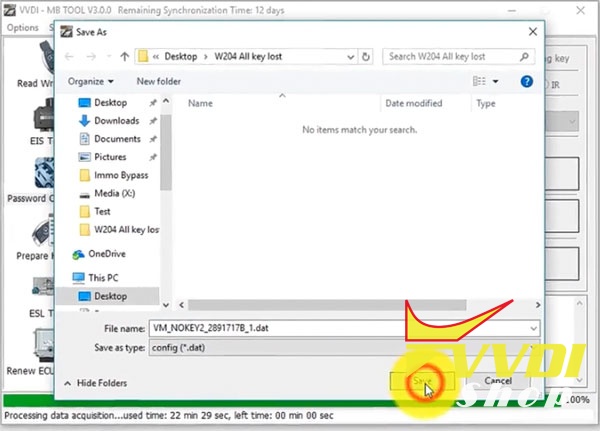

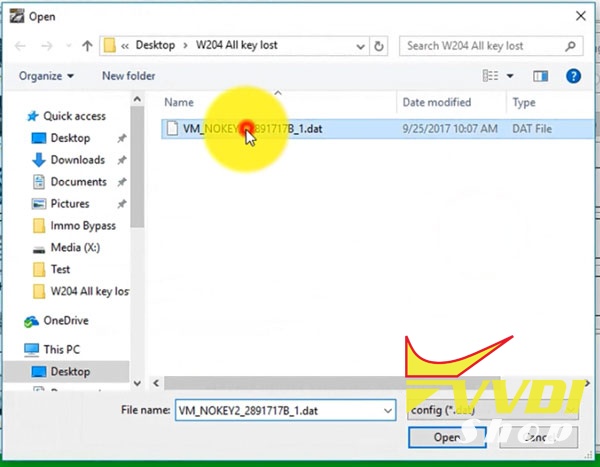

Save pass dat. file

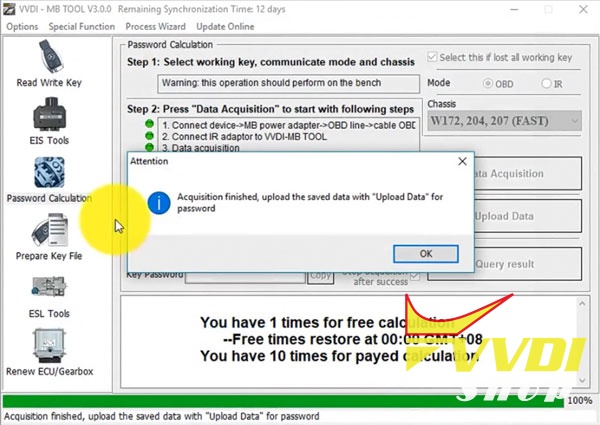

Acquisition finished, update the saved data with “Upload data” for password

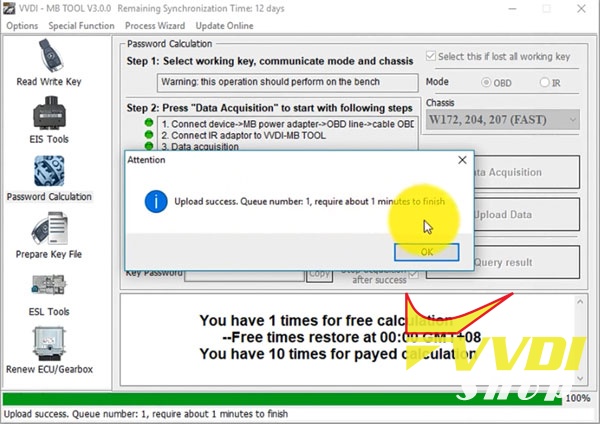

Upload success. Quene number 1. require about 1 minute to finish

Wait about 2 minutes and then press Query Result

Calculate password success. Paste the pass

Remove the adapter and then connect 12V cable to EIS cable

Select EIS Tools->Read EIS data

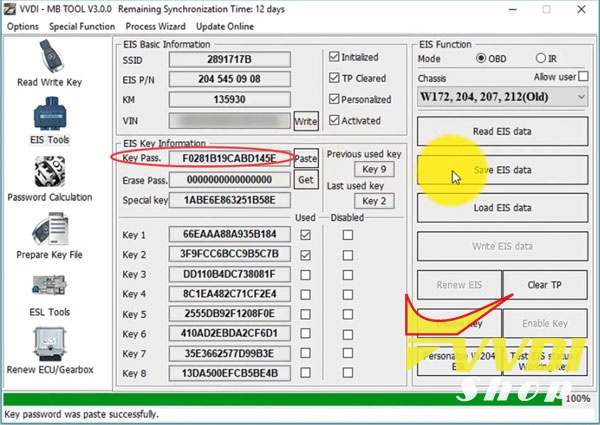

Paste key pass

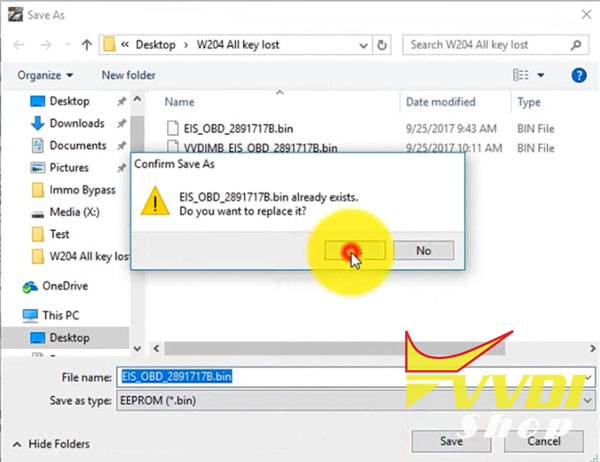

Save and replaced EIS data

Success.

www.vvdishop.com

http://blog.vvdishop.com/calculate-w204-eis-password-with-vvdi-mb-and-power-adapter/

Xhrose VVDI2 V5.2.0 Enbales MQB Immo Function

Xhorse VVDI2 key programmer software released to V5.2.0 on Jan, 19th, 2018. If you have ID48 96bit license, you can use MQB KM and Immo function.

VVDI2 V5.2.0 Update Feature

************************************************* *********************
*** 2018-01-19
*** Require firmware V5.2.0
************************************************* *********************
===== VAG V5.2.0 =====
1. Improvement MQB NEC35xx immobilizer/KM function, support following cars:
Audi A3/S3 2014+
Audi Q2
VW Golf7
VW Polo(MQB)
VW Tiguan II
VW Touran II
VW crafter 2017+
VW Passat B8 without virtual cockpit
Skoda Octavia III 2014.07+
Skoda Rapid 2015.06+
Skoda Kodiaq
Skoda Superb III
Seat Ibiza/Ateca/Toledo 2015.06+Attention 1: This type only support cars with cluster Continental/VDO. JCI type and virtual cockpit was not include
Attention 2: Improvement for prepare dealer key: support original blank key and MQB key made by VVDI
Attention 3: MQB Immobilizer function require extra license. Customer who have copy 48 (96 bit) license will get MQB license for free
Attention 4: Improvement for key learn function
Attention 5: Bugfix for access some MQB instrument
2. Improvement for autodetct in IMMO4 system
3. Add spanish language
4. Bugfix

===== BMW V5.2.0 =====
1. Improvement for read ISN from MSx8x ECU, require VVDI2 database file verison V1.0.0
2. Improvement for load MEV17xx EEPROM dump
3. Support change second hand FEM/BDC ISN and make original key working
4. Add spanish language
5. Bugfix

===== Porsche V5.2.0 =====
1. Add spanish language
2. Bugfix

===== PSA V5.2.0 =====
1. Add spanish language
2. Bugfix

===== Transponder Programmer V5.2.0 =====
1. Bugfix for update remote database
2. Bugfix for save points
3. Immobilizer data tool: bugfix for Fiat Ducato 93C56
4. Add spanish language
5. Bugfix

===== J2534 V5.2.0 =====
1. Add spanish language
2. Bugfix

===== Online Upate Tool V5.2.0 =====
1. Add spanish language
2. Bugfix

===== Quick Start V5.2.0 =====
1. Bugfix

Free download VVDI2 V5.2.0 software

https://mega.nz/#!u5xBhTSZ!m93DbBh0ZudhcGavQv5o70olqE55jZxzAfieolBDKzI

Xhorse VVDI2 V5.1.0 Adds VAG MQB Immo License

Xhorse VVDI2 key programmer software released to V5.1.0 on 18/01/2010.

*** 2018-01-18
*** Require firmware V5.1.0
************************************************* *********************
===== VAG V5.1.0 =====
1. Improvement MQB NEC35xx immoblizer/KM function, support following cars:
Audi A3/S3 2014+
Audi Q2
VW Golf7
VW Polo(MQB)
VW Tiguan II
VW Touran II
VW crafter 2017+
VW Passat B8 without virtual cockpit
Skoda Octavia III 2014.07+
Skoda Rapid 2015.06+
Skoda Kodiaq
Skoda Superb III
Seat Ibiza/Ateca/Toledo 2015.06+Attention 1: This type only support cars with cluster Continental/VDO. JCI type and virtual cockpit was not includ
Attention 2: MQB Immobilizer function support original blank key and MQB key made by VVDI2
Attention 3: part of original blank key not support write data
Attention 4: MQB Immobilizer function require extra license. Customer who have copy 48 (96 bit) license will get MQB license for free
2. Improvement for autodetct in IMMO4 system
3. Add Spanish language
4. Bugfix

===== BMW V5.1.0 =====
1. Improvement for read ISN from MSx8x ECU, require VVDI2 database file verison V1.0.0
2. Improvement for load MEV17xx EEPROM dump
3. Support change second hand FEM/BDC ISN and make original key working
4. Add spanish language
5. Bugfix

===== Porsche V5.1.0 =====
1. Add spanish language
2. Bugfix

===== PSA V5.1.0 =====
1. Add spanish language
2. Bugfix

===== Transponder Programmer V5.1.0 =====
1. Bugfix for update remote database
2. Bugfix for save points
3. Immobilizer data tool: bugfix for Fiat Ducato 93C56
4. Add spanish language
5. Bugfix

===== J2534 V5.1.0 =====
1. Add spanish language
2. Bugfix

===== Online Upate Tool V5.1.0 =====
1. Add spanish language
2. Bugfix

===== Quick Start V5.1.0 =====
1. Bugfix

Free download XHorse vvdi2 v5.1.0 software

https://mega.nz/#!PoJBSBKD!nn1ai-JfcoqAM4hbnitabziaSWY-5vkz-1erx4gj7VY

http://blog.vvdishop.com/xhorse-vvdi2-software-update-to-v5-1-0/

How to Program BMW EWS4 key with VVDI Prog EWS4 adapter

Here’s little guide to make BMW X3 EWS4 transponder key with new VVDI PROG EWS4 adapter and VVDI2 key programmer.

Step 1: Read EWS4 Eeprom by VVDI Prog

Remove dash

Take out EWS4 immo box

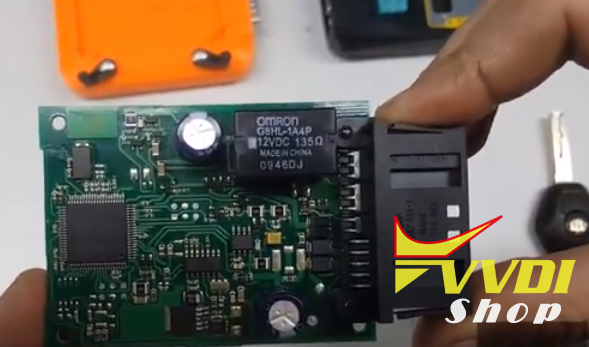

Disassemble the EWS4 module

Put EWS4 module in the VVDI PROG EWS4 adapter and lock it

Connect VVDI PROG with EWS4 adapter, then connect vvdi programmer with computer with USB cable

Open VVDI Prog software

Select Type 4th Immo, BMW and chip EWS4 adapter

Check connection diagram

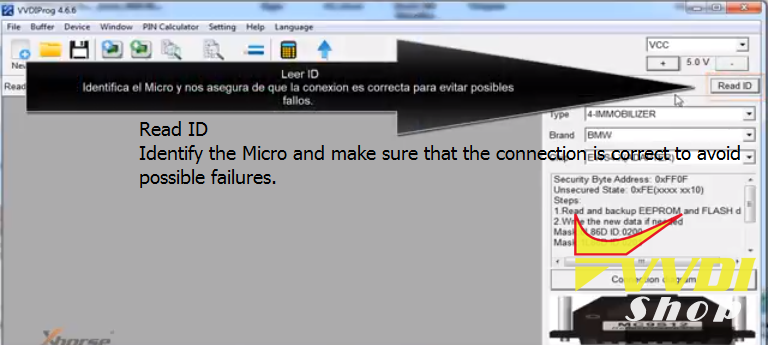

Click Read ID to identify the Micro and make sure that the connection is correct to avoid possible failures.

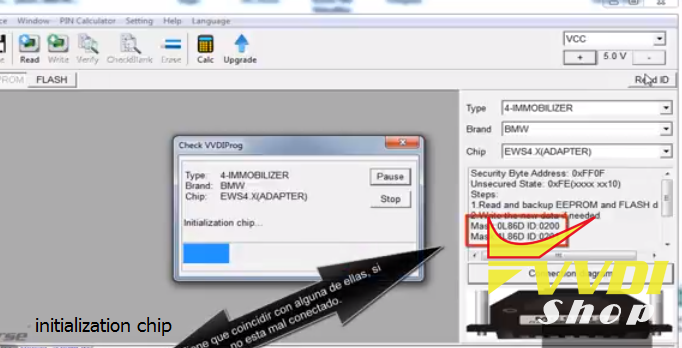

Chip initialization, make sure all chip type matches

It has to match any of them, if not, it is connected badly

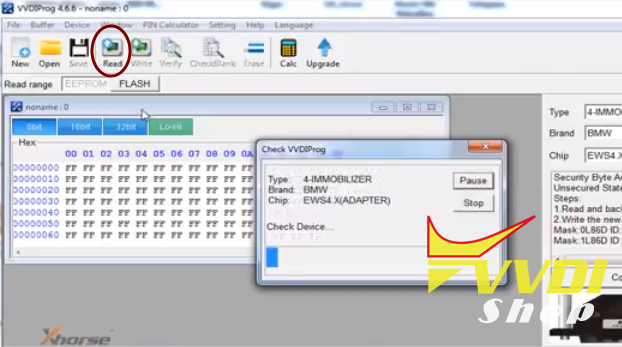

Click Read to read eeprom data and save it

Step 2: Program EWS4 key by VVDI2 BMW

Open VVDI2 software

Select Transponder Programmer

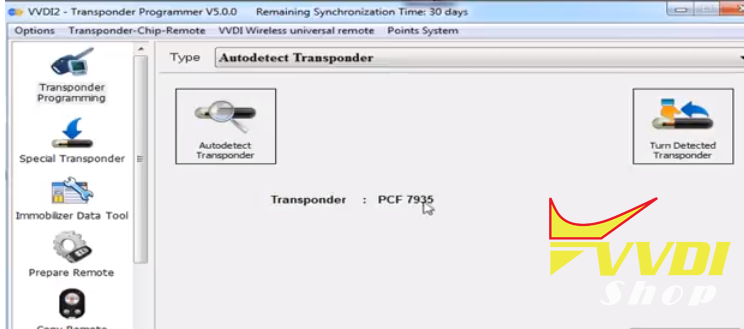

Select Auto detect Transponder: PCF7935

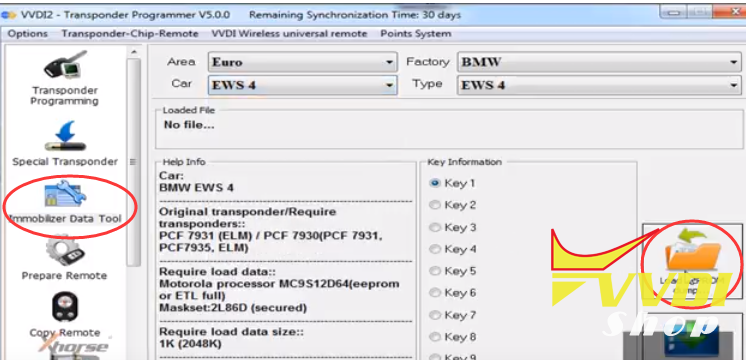

Choose Immobilizer Data Tool function

Select region, vehicle make and immo type

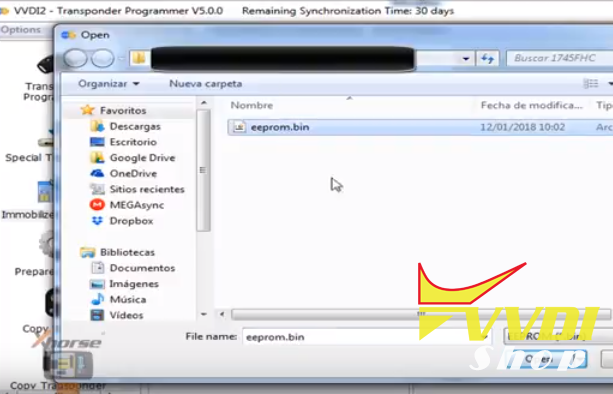

Click Load EEPROM Dump

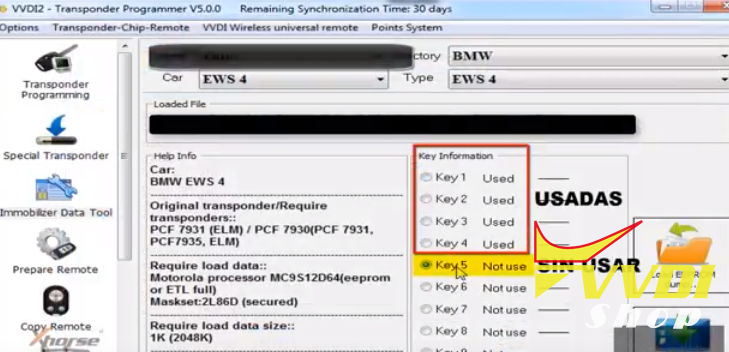

select an unused key position and press Make Dealer Key

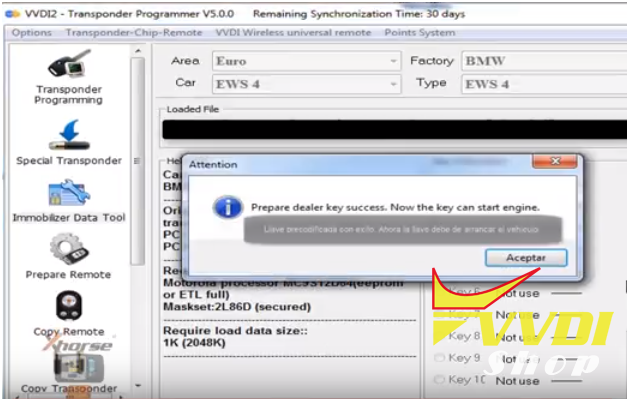

Prepare dealer key success. Now the key can start engine.

Reinstall EWS4 module back to car.

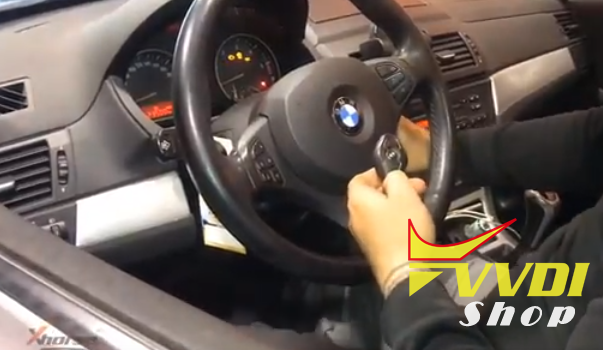

Test the new key, remote works, car starts

Done.

www.vvdishop.com

http://blog.vvdishop.com/program-bmw-ews4-key-with-vvdi-prog-and-vvdi2/

Xhorse VVDI ID48 96 Bit Cloning Function completed

Dear Xhorse VVDI2 key programmer users, VVDI2 96 bit ID48 cloning function (Item #SV86-S3) is now completely ready.

Worldwide Launch
After using for more than 3 months, a large number Chinese locksmith demonstrated that the VVDI server performance is stable and reliable, it is high time that we should launch worldwide.
Cloning needs ordinary ID48 chip only, data collection does not need to go through the OBD interface.

The activation fee is $ 250, give 1500 points as a gift when activating, cloning costs 100 points each time . Points can be accumulated by using VVDI remote, or you can buy calculation tokens as well, price for tokens is 16.5 dollars.

Different VVDI2 48 Function Explanation:

Copy 48 emulator/collector
collect data from ignition switch, used for copy 48 transponder by OBDII

Copy 48 Transponder by OBDII (SV86-S2)
Require: VAG 4th generation immo system, require read PIN & CS from ECU,copy
48 emulator
Support: all key lost/keyless go system/No soldering or remove module
Support models: (if can read cs/pin from ECU, means support) parts of example:
Mostly of JCI new type dashboad 2016-EOS
Volkswagen Scirocco
Audi Q3
Tiguan keyless go system
Parts of 24C64,24C32 dashboard

VVDI2 96bit copy 48:
require: Woking key, collect data from vehicle ignition switch, copy 48 emulator
support: All car types with 48 transponder without OBDII, only add spare key
support list:(parts of example)
2002-2017 VAG 48 transponder cloning, Honda, Buick, Cadillac, Fiat, Volvo,
Great Wall, Zhonghua more details,
1. 96 bit copy 48 support normal 48 transponder in the market(no need special transponder)
2. 96 bit copy 48 support add spare key no limited quantity, support as the vehicle all key position
3.96 bit copy 48 neither support keyless go system nor MQB platform.

www.vvdishop.com

http://blog.vvdishop.com/xhorse-vvdi2-96-bit-id48-complete-cloning/
