Condor mini Plus II Engrave a Unique Key

 Key blank engraving is an optional cutter newly developed for Xhorse Condor XC-Mini Plus II key cutting machine. The cutter allows locksmiths to engrave a unique key as need. It supports to engrave numbers, letters and simple patterns.

The older model such as Condor Mini Plus or Dolphin XP005 is not available for this feature currently.

How to engrave a unique key blank?

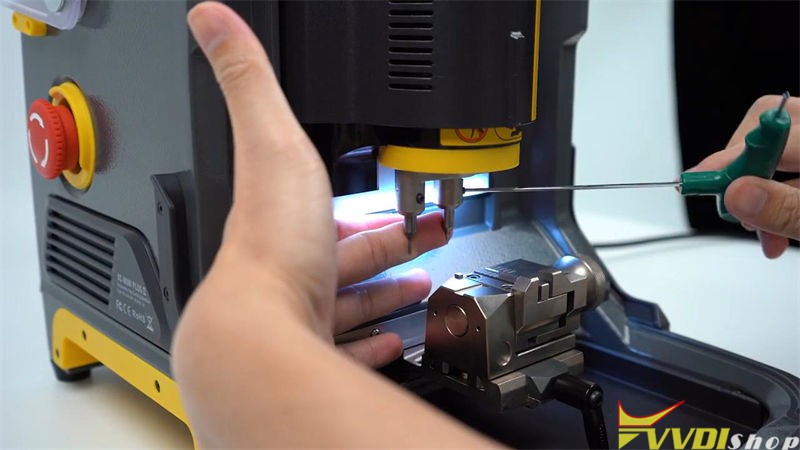

Step1. Insert the engraving cutter and key blank.

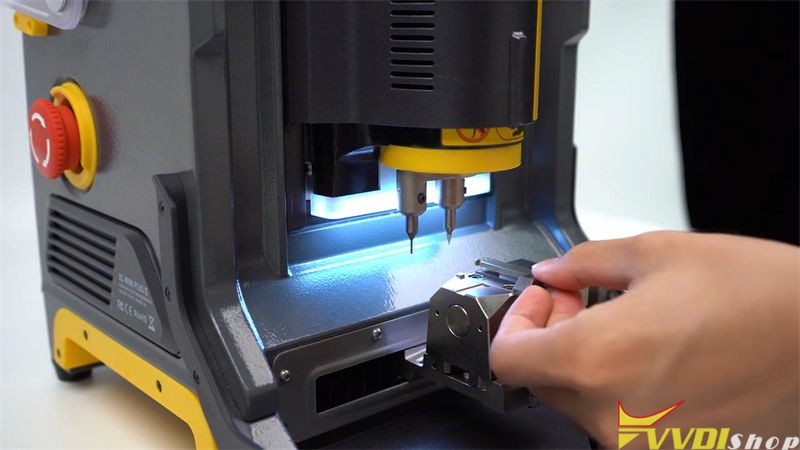

Install the key blank on M5 clamp.

The vertex cannot be occluded by the key blank.

Please use special engraving cutter.

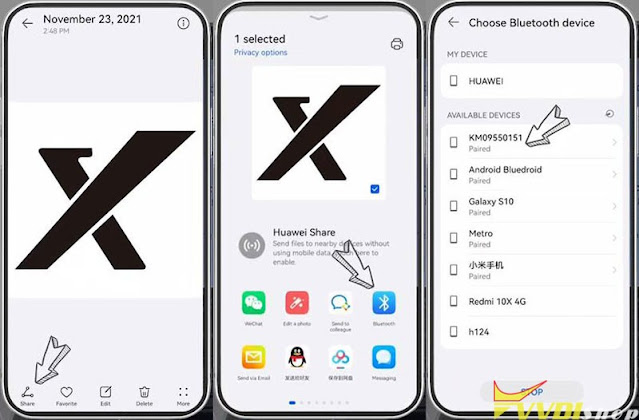

Step2. Send the picture to be cut to Condor XC-Mini Plus II.

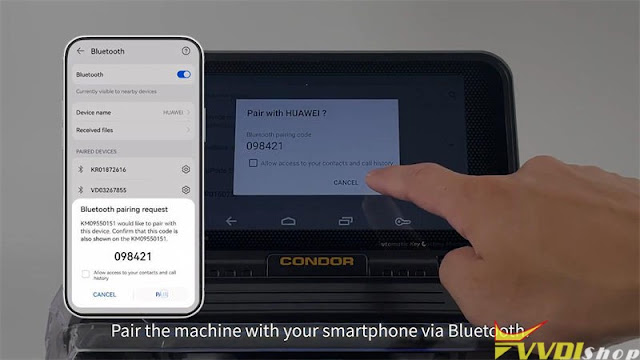

1. Pair XC-Mini Plus II with smartphone via Bluetooth(Bluetooth >> Pair new device);
2. Ensure the picture is in PNG format with transparent background;
3. Select picture to send.

Step3. Choose the picture and start to engrave.

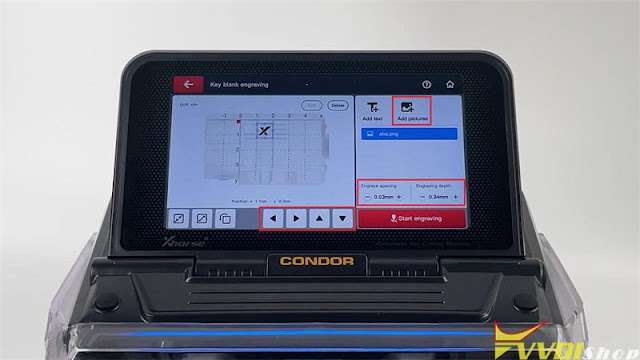

Key blank engraving >> OK >> Add pictures >> Adjust the image to appropriate position

You can adjust its engrave spacing & engraving depth.

Press “Start engraving” after finished.

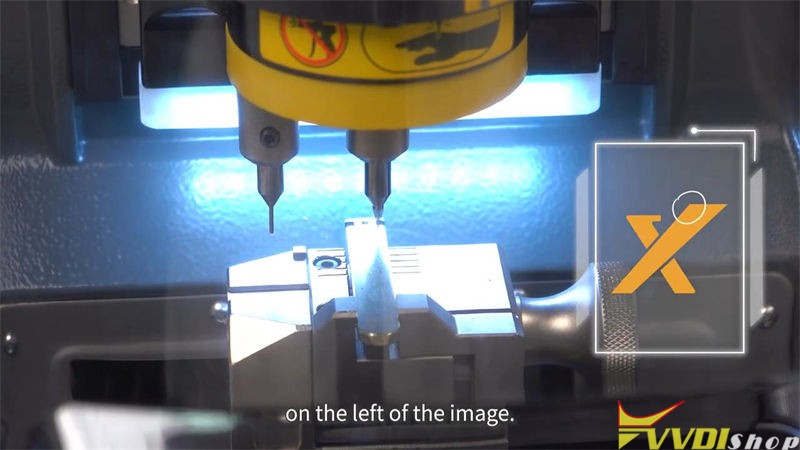

Note: the first dot engraved will start from the highest point on the left of image.

Condor Mini Plus II will starts engraving automatically.

Just wait…

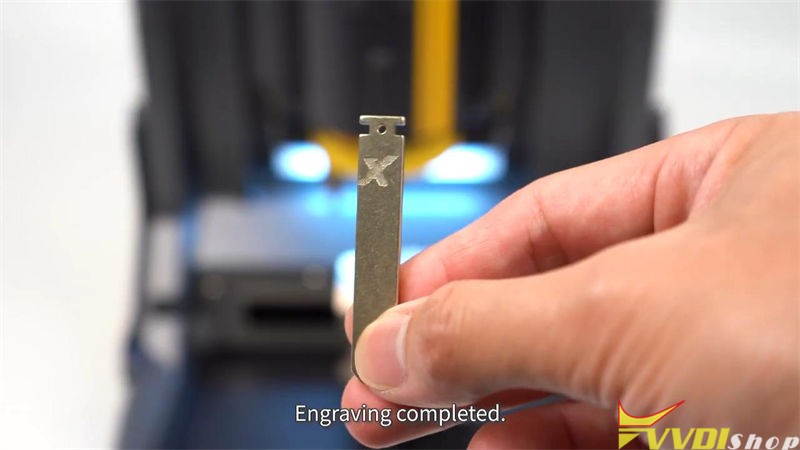

Engraving completed.

This is how to use Condor XC-Mini Plus II machine to do key blank engraving function.

You may interest:

What’s new in Xhorse Condor XC-Mini Plus II?

http://blog.vvdishop.com/what-is-new-in-xhorse-condor-xc-mini-plus-ii/

More info to be updated…

How to Cut House Key with Xhorse Condor and M4 Clamp?

 Xhorse Dolphin or Condor key cutting machine is possible to be used to cut household keys. With Xhorse M4 Clamp, it’s allowed to cut single & crucifix residential keys. M4 Clamp can be applied to Dolphin XP005, Dolphin II, CONDOR XC-MINI Plus automatic key cutting machines.

But what’s worth mentioning that M4 Clamp does not support cutting residential keys by code for the moment. You should have the original key to copy.

How to cut residential keys with Xhorse key cutting machine?

This tutorial is taking Dolphin XP005 to cut SC1, KW1 key as an example.

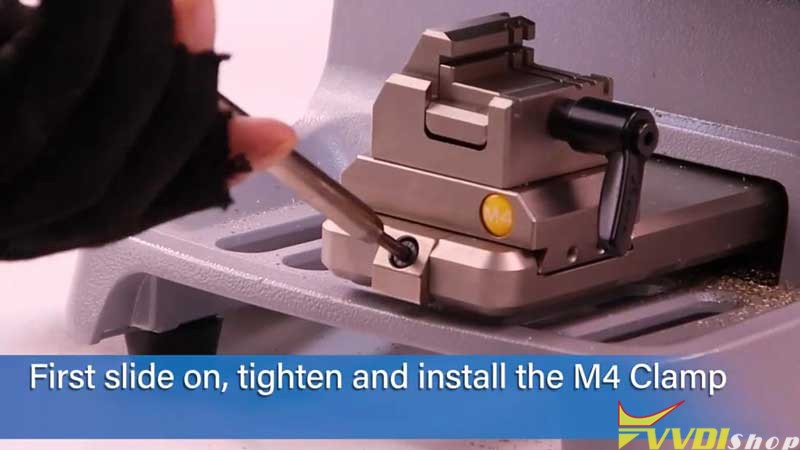

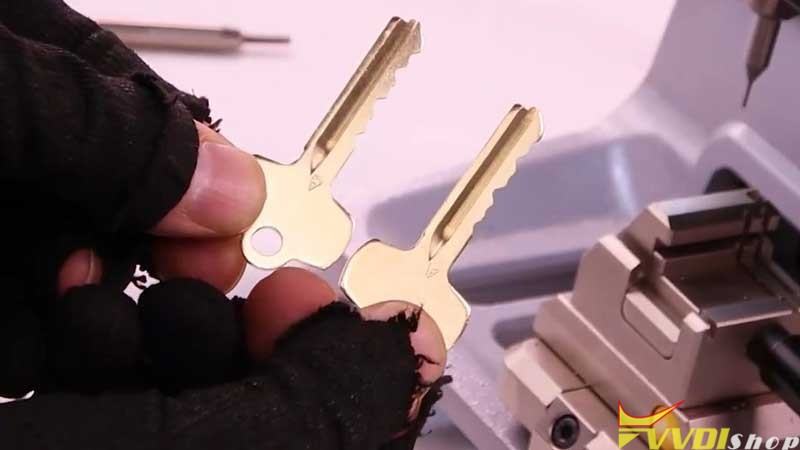

1. Tighten & install M4 Clamp. Prepare original key & new key, locate the alignment shim.

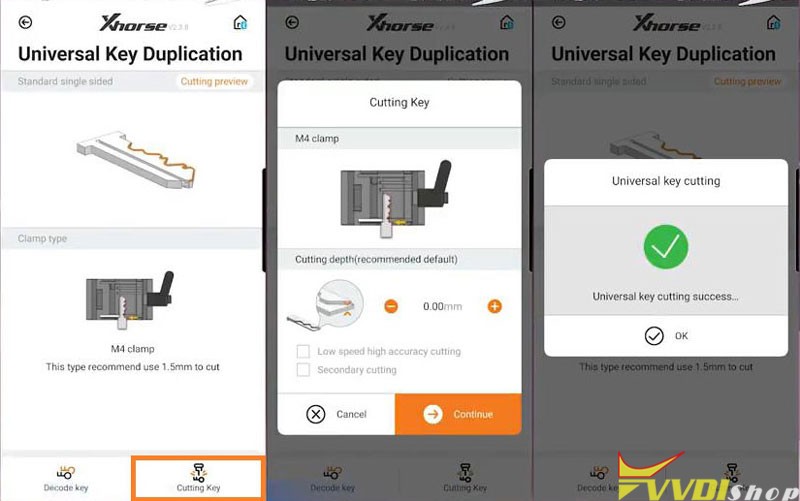

2. Go to “Universal Key Duplication >> Standard Single Sided >> Shoulder Align >> M4 Clamp”.

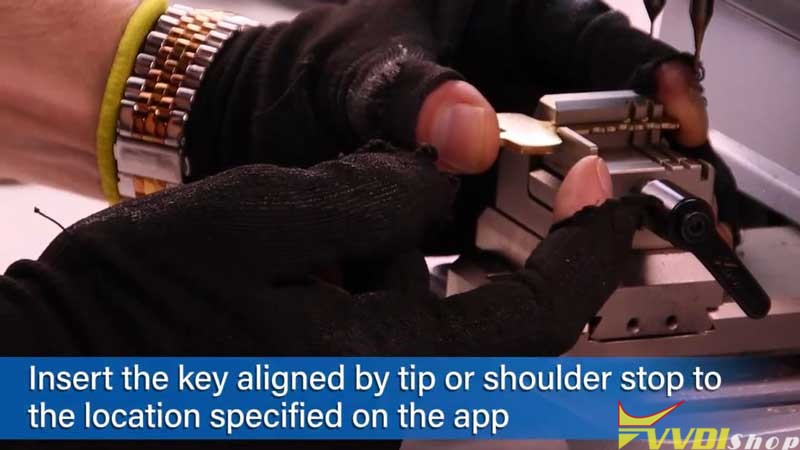

3. Insert & fix the original key, aligned it according to tips. Press “Decode key”.

4. Once completed, remove original key and replace the new one as instructed. Press “Cutting key >> Continue”.

Xhorse Dolphin machine will finish the whole process automatically.

Just wait…

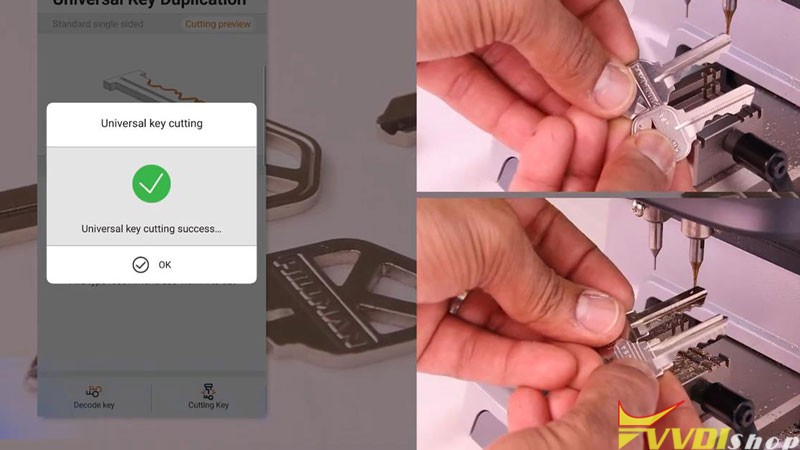

Universal key cutting success.

Done!

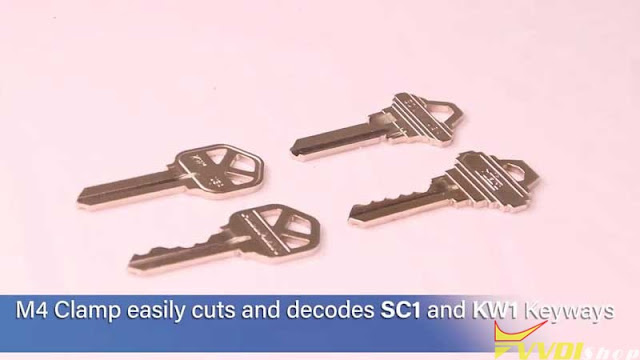

M4 Clamp can easily decode & cut SC1/KW1 keyways. Only to follow the steps above.

In short, Xhorse Dolphin XP005, Dolphin XP-005L and Condor XC-Mini are able to cut by duplication for single/crucifix house keys.

https://www.vvdishop.com/wholesale/xhorse-key-cutting-machine/

How to Cut Toyota TOY41R Key with Xhorse Condor?

 How to use Xhorse Condor XC-Mini Plus to copy a new Toyota TOY41R key? Following I’ll perform “Cut by bitting” to demonstrate how to do.

I have 2 keys at hands: an original working key & a new blank key.

Fix the original key firmly on M1 clamp, press

Key Dadabase >> Cut by bitting >> TOY41R >> Toyota >> Key decode >> Confirm

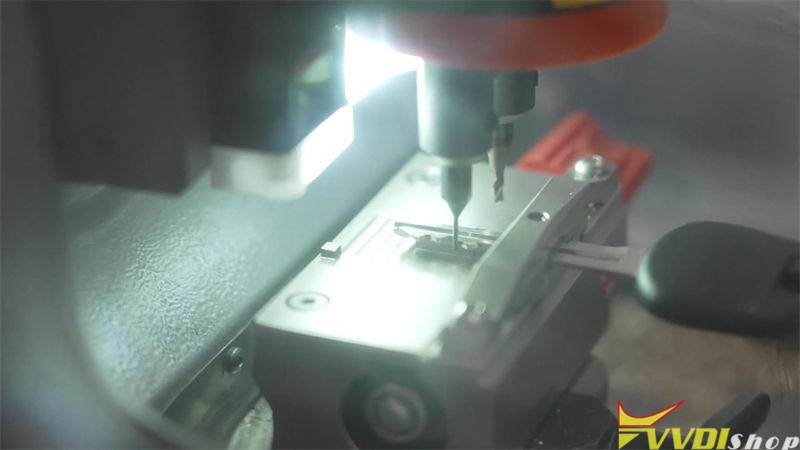

Condor XC-Mini will start decoding automatically…

Once done, I can find the bitting codes of key on Condor Mini tablet screen.

Compare to the original one, they are exactly same.

Next step, install the blank key to be cut on clamp.

Press “Cut key”.

Condor Mini Plus machine will automatically starts working again.

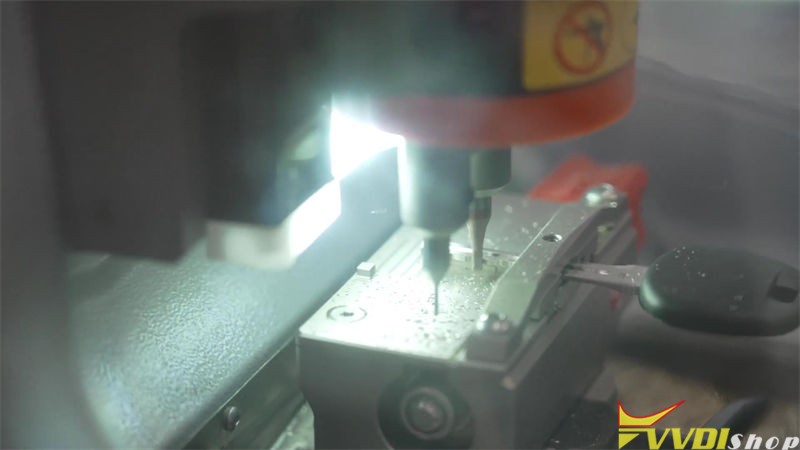

This time it’s cutting…

Just wait until the job finished.

Take out the new key to have a check.

It is same as the original key, and it does work.

Done!

Incredible, how smart and fast the Xhorse Condor machine is. It took me less tan 3 minutes to cut a key. I’ll recommend each locksmith should have one.

https://www.vvdishop.com/

How to Check Xhorse Condor Power Board Damage?

 One user met a problem that his Xhorse Condor XC-Mini Plus machine cannot start, even if the machine was updated to latest version, USB light is on, the issue still remains.

At this point, engineer should have to troubleshoot if the Condor XC-Mini power board was damaged.

How to check if Condor XC-Mini power board is damaged?

1. Place down the XC-Mini Plus machine, take out screws as pic shown;

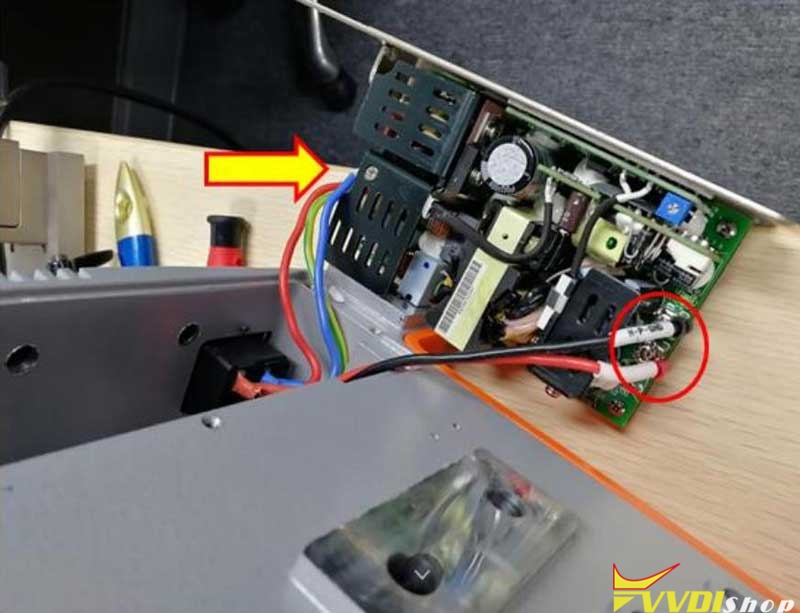

2. Take out the power board to check output voltage, check if it is 24V in red circle position;
3. If not, check if the input voltage in arrow position is 110/220 V.

If input voltage is normal, which means the Xhorse Condor Mini Plus power board is damaged.

Give your check result to Xhorse engineer to help solve problem.

https://www.vvdishop.com/

Xhorse Condor Cut BMW 320 E46 EWS Key

 How to duplicate a BMW 320 E46 1999-2006 key by Xhorse Condor XC-Mini Plus key cutting machine?

Fix the original BMW key on clamp, press

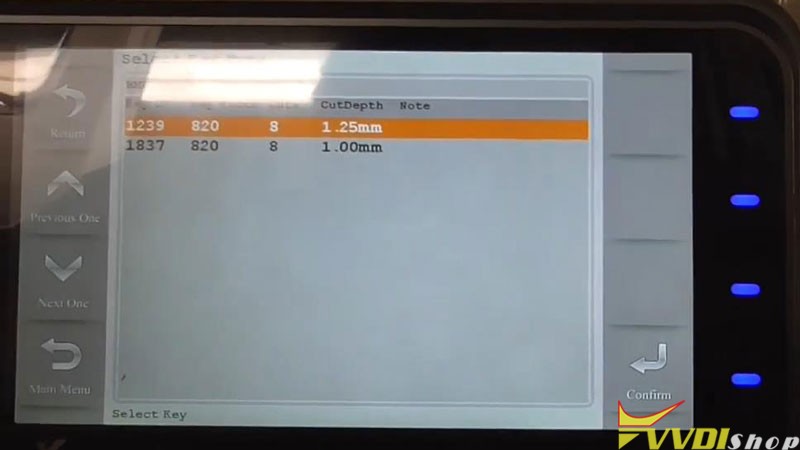

Key duplication >> BMW >> 320 >> E46(1998-2006) >> Confirm >> Key decode

Condor XC-Mini machine will start decoding…

Press “Cut”.

Condor Mini Plus machine will start cutting…

Wait until one side cutting finished, then turn over the key to cut other side.

Done!

Using Xhorse Condor XC-Mini Plus Automatic Machine to copy a 320 E46 BMW key is successful.
