How to use VVDI Prog to Read Renault Megane 2006 MC68HC05

Xhorse VVDI Prog programmer previous v4.6.5 upgrade adds Renault MEGANE-UCH option in 4-IMMOBILIZER.

Today our customer has successfully read Renault Megane 2006 Motorola MCU MC68HC05 (3G96A) with vvdi programmer.

Vvdi prog Reading hc705

System will prompt you adapter and pinout to connect.
From that reading you can get pin and chip ready

Save eerprom data.

http://blog.vvdishop.com/xhose-vvdi-prog-read-renault-megane-2006-uch-mc68hc05/

How to enable VVDI Key Tool ID48 96bit copy function

Q:

I’ve bought authorization clone id48 96 bit for VVDI2. Can I use it also for vvdi key tool? how to use?

A:

If you have VV-04 with VVDI2 , and you have Keytool , you can combinate both device and use COPY 48 on both.You don’t need to pay extra money.

You can bind both device by yourself without providing Serial Number and contacting reseller for activation.

Update your VVDI2 software to latest version, provide Serial Number and buy license to activate ID48 96-bit function.

Open VVDI2 Quick Loader

Select Transponder Programmer

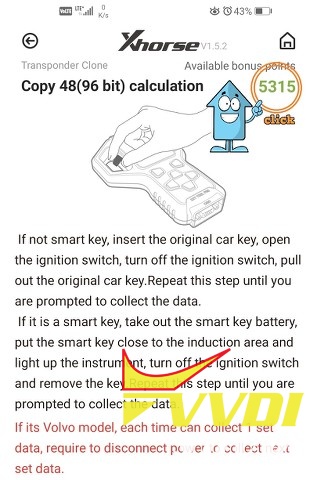

You’ll see Points System tab

Select Bind VVDI2 and VVDI Key Tool, the bonus points will add to VVDI2.

If you buy Copy 48 Transponder (96 bit)  license you will have 1500 free points.

Cloning costs 100 Bonus Points each time.
Bonus Points can be accumulated by using VVDI Remote
You can Buy Calculation Tokens as well. Price for Token is $8 each

Related post:

How to check Points in Xhorse VVDI2 Key Programmer

BMW 730Li E66 Smart Key Programming by VVDI2

Guide: How to program smart remote on a BMW 730Li E66 year with Xhorse VVDI2 key programmer.

Vehicle:

BMW 730Li E66 year 2007 with CAS1 immo system with key slot

Have 1 working 3-button key, need to add another smart remote key

Procedure with VVDI2 BMW:

Connect VVDI2 with vehicle and laptop

Insert original remote into key slot and turn ignition on

Open software VVDI2 Quick Start
Open BMW software
Press Connect button

VVDI2 identified vehicle information: BMW CAS1 315MHz key No 4

Select first option: Add key: add key you should insert working key before continue next

Take away dealer key from ignition witch before press OK
If keyless remote should bring outside car
Connect to CAS

Save key info

There are 4 keys in system
Save key into file

select unused key position and Prepare dealer key with programmer

Put new key into VVDI2 programmer

Is the new key have keyless, if have press YES, otherwise NO

Key make okay and locked. Please use it start the car.
If cannot start engine. Use Add key function add the dealer key to CAS system.
If key can start engine, but keyless not working, pleas use “Repair Keyless key” function

Now key already programmed try to start

Try to synchronize then start.

Done.

http://www.vvdishop.com/service/program-bmw-730li-e66-2007-cas1-smart-remote-with-vvdi2-6056.html

VVDI Key Tool Latest Software goes to V2.2.2

Q:

What is the latest version of the vvdi key tool software? I tried to update Keytool with V2.3.9 mega link on other webpage, but it failed me and showed software error.  Can you please send the newest software?

A:

DON’T use the v2.3.9 mega link to update your Xhorse VVDI Key Tool.

Always use the Xhorse upgrade kit to update your key tool

Free download Xhorse Update Kit

Latest software refer to the update kit.  Newest now is v2.2.2 (till Mar, 2018)

VVDI Key Tool V2.2.2 (2018-02-03)
1.Repair and improve 96 bit 48 data acquisition
2.Repair and improve ID48 read and write

How to update VVDI key Tool to 2.2.2?

Download Xhorse update kit above

Use the USB cable to connect the Keytool to computer
Check devices cnnection status and check driver version
Download the latest software and data files
Start updating software and data
Update success

VVDI Key Tool V2.2.2 Feedback:

the ID48 offline cloning with version 2.2.2 it is very good they have improved it. i have copied many normal ID48 chips with no problem.

http://blog.vvdishop.com/whats-the-latest-software-version-of-vvdi-key-tool/

Unlock Dodge RAM 2015 Proximity using VVDI key Tool

We have successfully unlocked Dodge RAM year 2015 key proximity using Xhorse VVDI Key Tool remote generator.

Simple operation steps:

Put key proximity board into VVDI Key Tool renew adapter



Select Renew->Chrysler/Jeep/Dodge->IYZ-C01C Smart Key

Please select the item corresponding to the original key, otherwise renew will not work properly.

Please connect the key in adapter and then connect to the vvdi Key tool

Writing data in progress

Unlock key success.

http://blog.vvdishop.com/vvdi-key-tool-unlocking-dodge-ram-2015-key-proximity/
