VVDI Prog and Key Tool Max Program BMW X1 Key

How-to Program BMW X1 CAS3+ Key using Xhorse VVDI Prog and Vvdi Key Tool Max programmers.

Update your keytool max to latest version because the file make key function (IMMO Data Tool) is required.

Main steps:

Step 1: Read dump data

Step 2: Prepare dealer key

Step 3: Write data back

Step 4: Test key

Procedure:

Step 1:

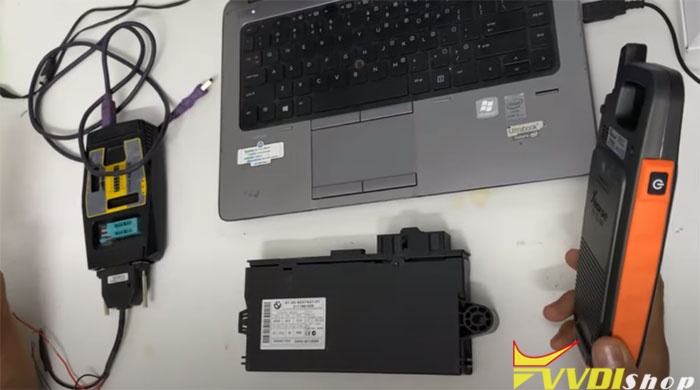

Remove CAS3+ module from vehicle and disassemble the unit

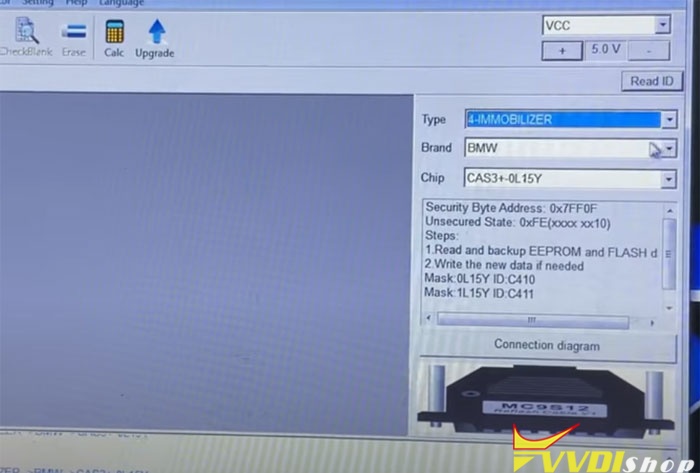

In VVDI Prog software, select 4-Immobilizer->BMW->CAS3+ 0L15Y

check wiring diagram

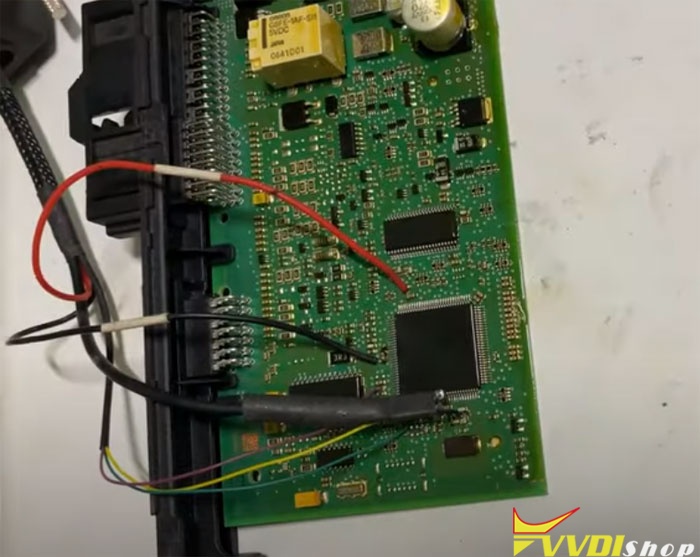

Connect CAS3+ with VVDIProg follow the diagram

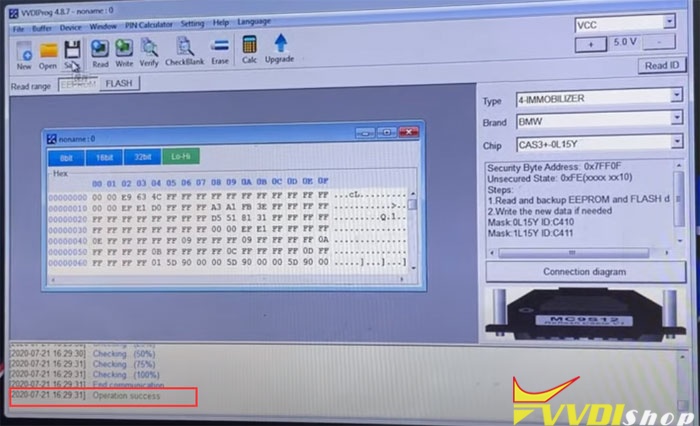

Read data

Save data, i.e bmw x1 eeprom

Step 2: Prepare dealer key

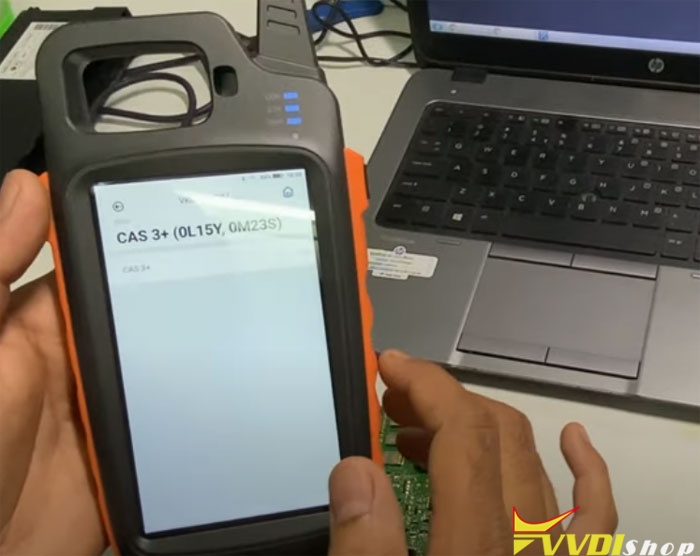

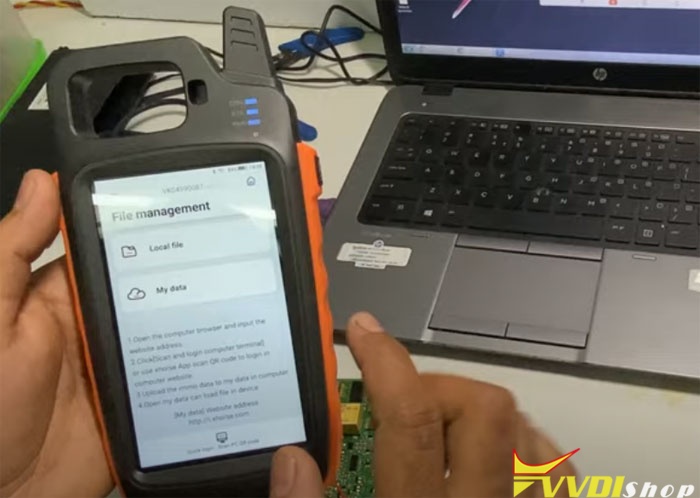

In key tool max app, select Special Function->Immo Data Tool-> Europe->BMW->CAS3+ (0L15Y, 0M23S)->File management

Open windows browser on PC and login “My Data”, website address http://i.xhorse.com

or scan PC QR code to quick login

Switch website language (Chinese to English)
Upload eeprom data from laptop (bmw x1 eeprom)

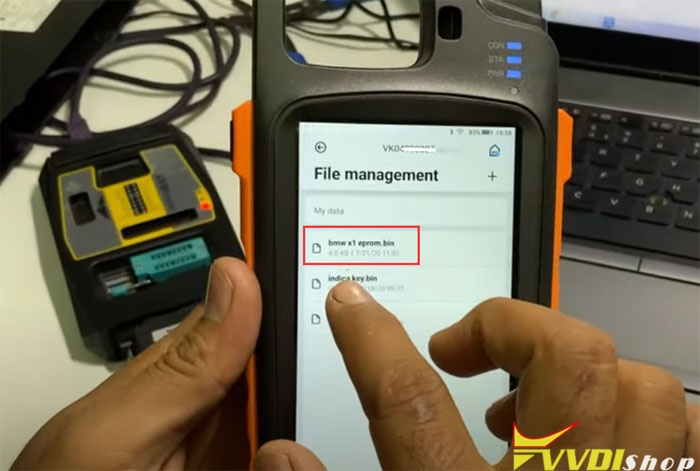

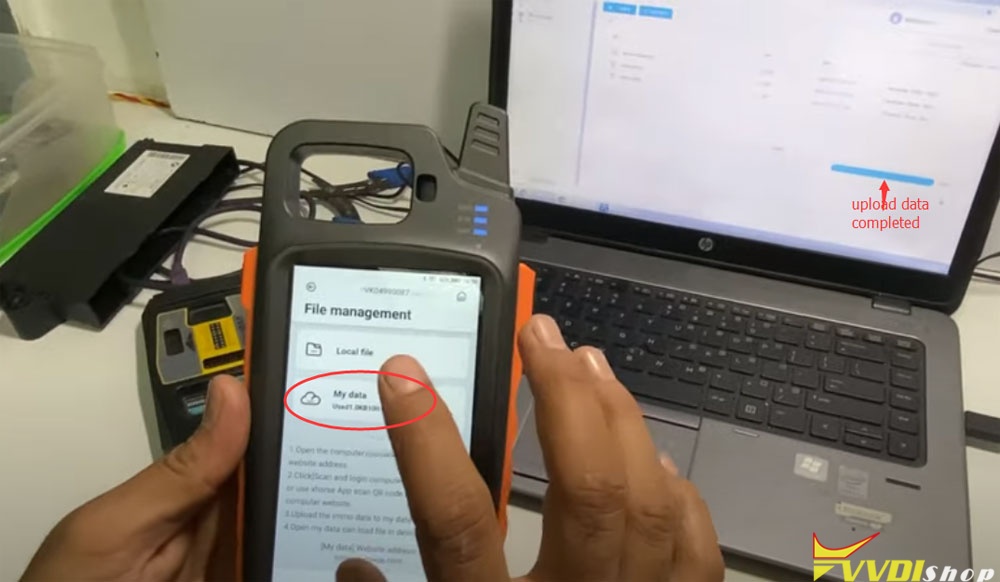

Check My Data on keytool max,  you can find the bmw x1 eeprom.bin

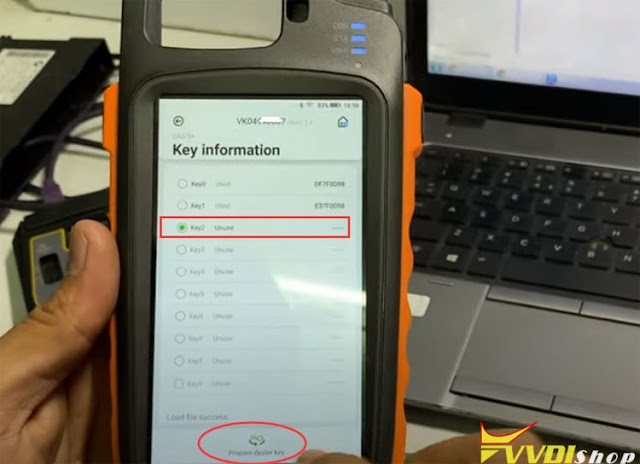

Select an unused key position

Insert a blank key into induction coil
Press Prepare dealer key

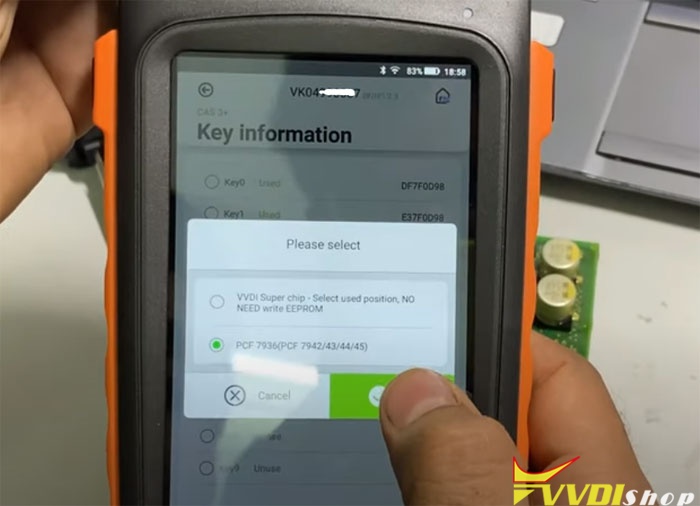

Select key type: PCF7936 (PCF7942/43/44/45)

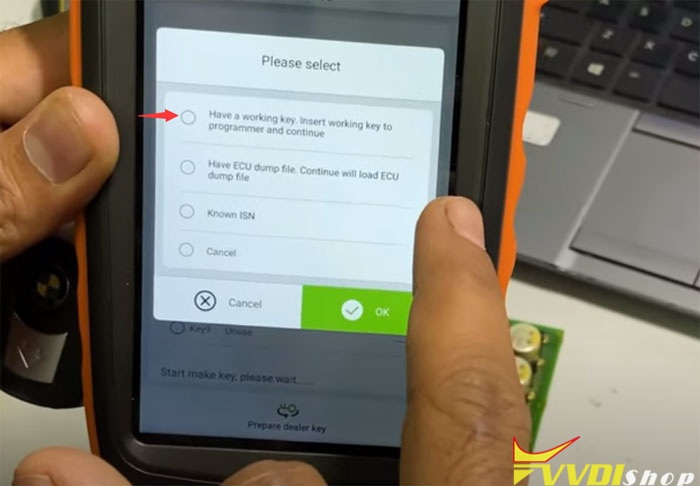

Select Have a working key, insert working key to programmer and continue

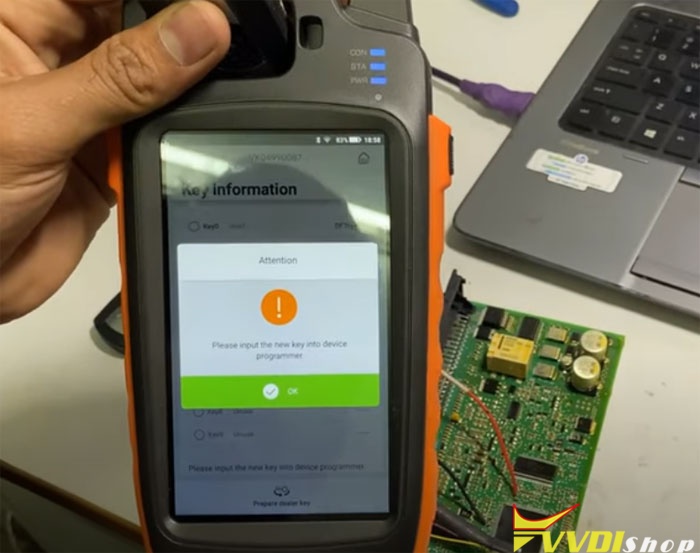

Then input new key into key tool max

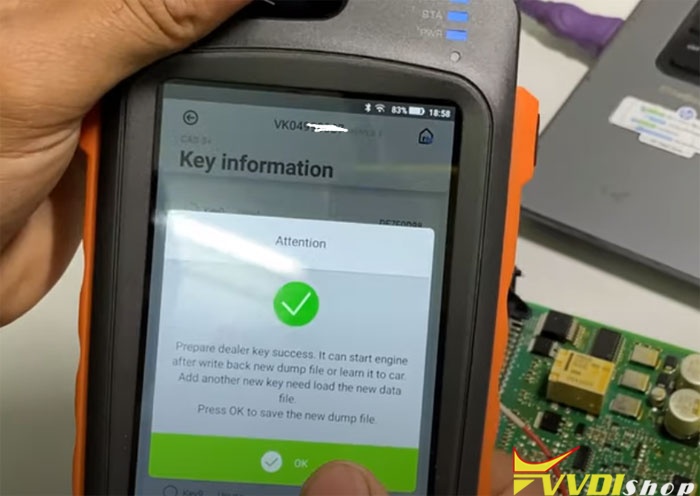

Prepare dealer key success.
It can start engine after write back ne dump file or learn it to car.
Add another new key need load the new data file.

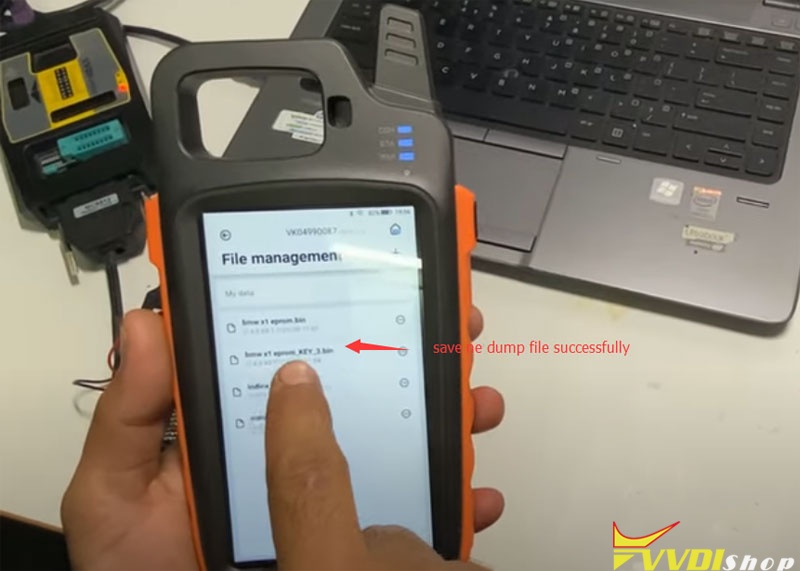

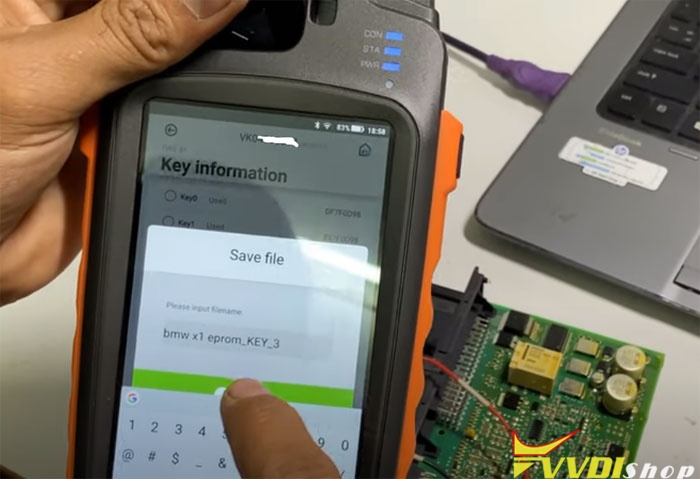

Press OK to save the new dump file, i.e bmw x1 eprom_KEY_3

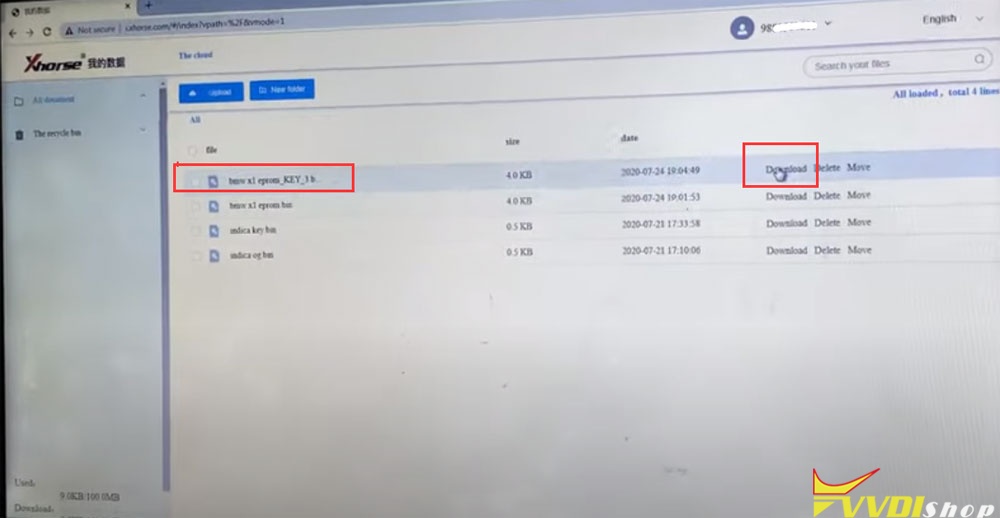

Download the new dump data (bmw x1 eprom_KEY_3) from Xhorse data center to your PC and cut to desktop

Step 3: Write Back data
Open VVDI-Prog software

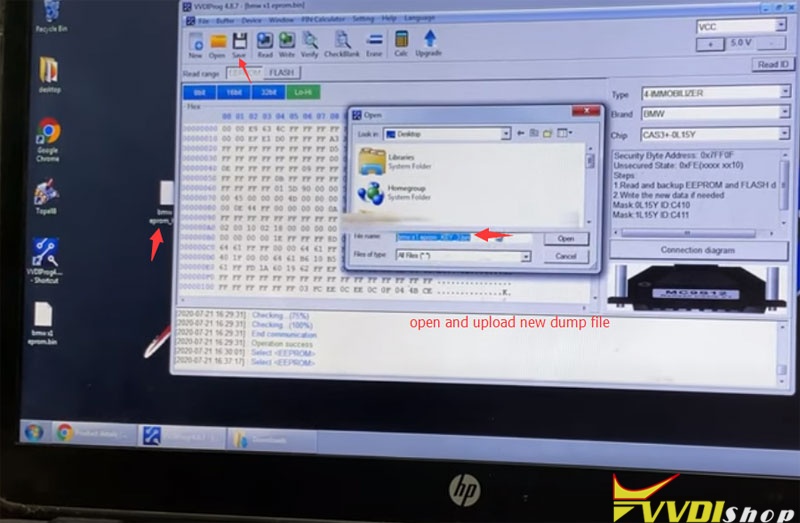

Open and upload new key dump data on desktop

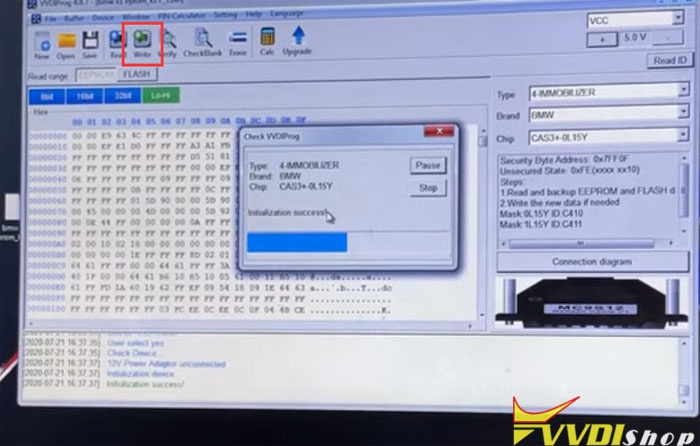

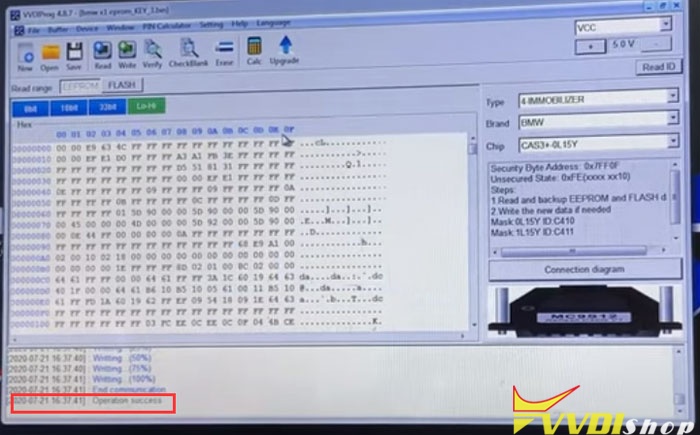

Write data

Write data success
Verify data, check success

Step 4: Test key

Now desolder CAS3+ and install CAS unit

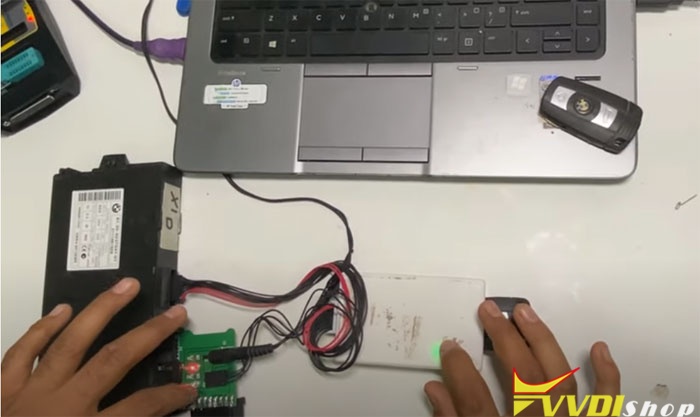

Test the new key with BMW CAS Test platform

www.vvdishop.com

http://blog.vvdishop.com/vvdi-key-tool-max-file-makes-bmw-x1-cas3-key/

Condor XC-Mini supports Xhorse App

Good News ! Now Xhorse CONDOR XC MINI & Condor XC-MINI PLUS can work on Xhorse App. Using same Dolphin database.

1. Support the Condor machine with the first 4 digits code of the serial number:
“KM03” and “KM05”

2. Users need to Upgrade the firmware and Xhorse App to latest version.
KM03 firmware version: 6.1.3
(App version 1.9.4)
KM05 firmware version 3.1.3
(App version 1.9.4)

How to make Condor Mini Plus work on Xhorse App?

Turn on Bluetooth connection on Condor

Run Xhorse App

Select device and auto search device

Bluetooth message received

Now you can use Condor mini on Xhorse app to cut keys

www.vvdishop.com

VVDI Key Tool Max File Make Key Quick Guide

Xhorse VVDI Key Tool Max released new “File Make Key” function in July 2020.

How to use the FILE MAKE KEY function ?

*Only on KeyTool Max*

1. Click Special Function
2. Select IMMO data tool
3. Select Car brand and model
4. Select Country

5. Click Load

6. Open a browser window, enter the URL, address http://L.xhorse.net.cn

7. Scan the QR code with the Xhorse App

8. Click Quick login, scan PC QR code
9. Scanned the QR code successfully. Then click Confirm login.
10. Upload the file based on your needs.

11. Click My Data
12. Select the uploaded file
13. Take the next step based on users’ needs
14. Select the Key Information, then click Prepare dealer key
15. File Make Key is now done.

Write Back Data Upload Instruction

If the App prompts you need to Write Back Data, follow the next steps to upload file.

www.vvdishop.com

How to Fix BE Key for a Mercedes W639 Vito

Question: I have a Be key from a w639 vito with status 4545 which needs fixing, any tip as how to fix this? I managed to read its password, not sure what to do next!.

Solution:

Read the eis data on bench via kline, then vvdi mb made a new Be key file with password, and is working now

I bought them from vvdishop.com, so don’t know if they are xhorse or not, with one battery type.

Suggestion:

Just prepare an Xhorse key, just in case they come back again. Other BE keys have high risk of selfereasing, resulting in the situation ou mentioned – 45454545….
The worst BE keys ar those with one battery on the back, which are not made by Xhorse. Those BE key by Xhorse are superb. And those BE with two batteries which resemble the older original Benz keys (before the BGA type) also should be trouble-free.

Good luck!

www.vvdishop.com

Why choose Xhorse VVDI Remotes?

Xhorse Remotes can be divided into these categories:

• XE Series Super Remote
• XS Series Smart Remote
• XN Series Wireless Remote (With transponder)
• XK Series Wired Remote (Without transponder)

Why choose Xhorse remotes?  Check top 20 reasons bellow:

REASON 1
Outstanding Appearance Design

Have you ever deeply impressed by the appearance of Xhorse remotes?

• For people who usually use vehicle remotes, It is difficult for them not to be attracted by Xhrose Remotes.
• Superb quality embodies all sides of Xhorse Remotes, Some of Xhorse Remotes have Certificates of Design Patent. You can feel no burrs while touching the edge of the cover case thanks to its integrated body structure design. and look closer, all Xhorse remotes have good looking of the case shell curve. The design specialists never see the remotes as a normal tool for starting cars, instead, they treat the remotes as artworks. Each remote is a combination of designers’ creativity and great effort.

REASON 2
Exquisite Manufacturing Technique

• Xhorse has fully accomplished technology superiority on manufacturing and always supplies high-quality remotes for users around the world. Xhorse remotes and self-developed transponders are 100% produced by automated production lines and 100% tested by American Agilent test devices.
• All Xhorse remotes and transponders are configurated exclusive test files to guarantee its quality.

REASON 3
All the Xhorse Remotes are certificated by ISO9001: 2015

What is ISO9001:2015 Quality management systems?

• ISO 9001 is defined as the international standard that specifies requirements for a quality management system (QMS). Organizations use the standard to demonstrate the ability to consistently provide products and services that meet customer and regulatory requirements. It is the most popular standard in the ISO 9000 series and the only standard in the series to which organizations can certify.
• ISO 9001:2015 applies to any organization, regardless of size or industry. More than one million organizations from more than 160 countries have applied the ISO 9001 standard requirements to their quality management systems.

REASON 4
Built-in Clonable Transponder

• The built-in transponders of Xhorse Remotes are selected from NXP immobilize transponders and self-developed transponders(R&D by Xhorse). All the transponders are manufactured and tested under strict quality control conditions-100% tested by American Aglient test devices.

REASON 5
TIME-SAVING

• By using Xhorse remotes(with built-in transponders), users can even have few concerns about searching the password of the original remotes.

REASON 6

Support reprogramming unlimited times

• The built-in super chips/transponders are easy to be programmed and re-programmed. Users can re-program the super chips unlimited times.

REASON 7

Support button cell

• Xhorse remote supports button cell CR2032 which has great endurance and can be easily installed & replaced by yourself.

REASON 8

Easy to Open

• It is very convenient for you to easily open the Xhorse Remote (Some specific remote may need special methods to open. Please consult the Xhorse technical support team for help.

REASON 9

Superior Raw Materials

• Thanks to its high-quality raw materials, Xhorse remotes always meet users’ expectations. The plastic cover cases are mainly made of high-quality Polyamide 66, also called nylon 66( It has great features: 1. High strength and stiffness at high temperature; Good impact strength, even at low temperature; Good abrasion and wear resistance;) and zinc alloy( It has great features: 1.High dimensional accuracy and stability; 2.Superb castability and long-term dimensional stability; ) to guarantee remotes’ stable performance and long endurance.

Tips: Nylon 66 is frequently used when high mechanical strength, rigidity, good stability under heat, and/or chemical resistance are required.

REASON 10

Durable Key Blank

• In order to fit for more car models, Xhorse also provides users the remotes with a metal key blank made of electroplated cupronickel which possesses good abrasion and wears resistance, sturdy and durable. Thus this kind of excellent raw material can be greatly processed into useful vehicle remotes.

REASON 11
Excellent Performance （Advantages）

• Xhorse remote series adopt universal design on appearance and functions(detailed remote list shown at the bottom of this blog, please check based on your needs). Xhorse Remotes can be applicable for hundreds of car models, and Support emulation for multiple immobilizer transponders types: 11,12,13, 7936, 7937, 7947XTT, 7946, etc. Xhorse remotes are currently being extended product lines to support more car models.
• Using Xhorse Remotes primely helps all of the locksmith friends decrease storage costs and save a large amount of time.

REASON 12

Low Inventory pressure

• You may ever encounter such a problem, for meeting clients’ demands, you might need to prepare many types of car remotes, there are lots of remotes stored in your workshop. The storage cost brought you great pressure on running a business. BUT friends, by using Xhorse remotes, no more Storage Pressure. Xhorse has  XE Series Super Remote; XS Series Smartkey Remote; XN Series Wireless Remote(With transponder) and XK Series Wired Remote(Without transponder). Only 4 types of Xhorse Remotes, support over 3,000 car models.


REASON 13
 Style Diversification

• The remote styles can be mainly classified as flip-3button-matte remote, flip-3button-chrome plating remote, flip-3button remote, flip-4button remote, 5button-keyblank inside remote, 4button-keyblank inside remote, etc. Please kindly check the “Xhorse Remote List 2020 Update Poster” at the bottom of this blog to check remote information in detail.

REASON 14
Bonus Points Reward

• The Bonus points will be automatically accumulated and can be used to exchange for various software functions and accessories of other Xhorse devices. The specific bonus points are assigned to each remote.

REASON 15

• Safe and stable performance; Even able to be performed well in extreme hot & cold weather.

REASON 16

• With the super–fast prompt response, the Xhorse remotes provide users a wait-free remote response.

REASON 17
Powerful Functions

Xhorse Remote isn’t just an exquisite appearance, it makes you feel good while using it.

• Smart Remotes powerful functions: Remote Control / Smart Sensing / Keyless Start / Wireless Programming

REASON 18

Support Wireless Programming

• Xhorse Wireless Remotes support Wireless Programming; No need to open the cover or connect the programming cable.

REASON 19
TOP-CLASS Service

Xhorse is always committed to making it easier for users to choose our products.

• One year warranty for Xhorse remotes.
• Lifelong Provide Online Technical Support, also called Customer Service

【PROFESSIONAL · TIMELY · RESPONSIBLE】

REASON 20

No worries about Repair Issues

Xhorse also provides complete Offline After-sale Service. Users can repair/fix their remotes through the following two methods:

【1】Consult your local dealers and wholesalers for help.

【2】Directly contact the Xhorse Official Customer Service via Xhorse App to consult maintenance and repair of Xhorse Remotes.

• Please be noticed before sending back your damaged or problematic remotes, please do first communicate with the technical support person about your remotes. All the remotes sent back should be first recorded by our technical support team, then fixed by our engineers, finally sent back to you.
• (All the maintenance details of freight charge, maintenance cost that ought to be discussed based on specific remote conditions)
• Xhorse will not receive any remote delivery which wasn’t recorded in advance.

Xhorse Remotes List
【Pictures and PN number】
