How to Program BMW EWS4 key with VVDI Prog EWS4 adapter

Here’s little guide to make BMW X3 EWS4 transponder key with new VVDI PROG EWS4 adapter and VVDI2 key programmer.

Step 1: Read EWS4 Eeprom by VVDI Prog

Remove dash

Take out EWS4 immo box

Disassemble the EWS4 module

Put EWS4 module in the VVDI PROG EWS4 adapter and lock it

Connect VVDI PROG with EWS4 adapter, then connect vvdi programmer with computer with USB cable

Open VVDI Prog software

Select Type 4th Immo, BMW and chip EWS4 adapter

Check connection diagram

Click Read ID to identify the Micro and make sure that the connection is correct to avoid possible failures.

Chip initialization, make sure all chip type matches

It has to match any of them, if not, it is connected badly

Click Read to read eeprom data and save it

Step 2: Program EWS4 key by VVDI2 BMW

Open VVDI2 software

Select Transponder Programmer

Select Auto detect Transponder: PCF7935

Choose Immobilizer Data Tool function

Select region, vehicle make and immo type

Click Load EEPROM Dump

select an unused key position and press Make Dealer Key

Prepare dealer key success. Now the key can start engine.

Reinstall EWS4 module back to car.

Test the new key, remote works, car starts

Done.

www.vvdishop.com

http://blog.vvdishop.com/program-bmw-ews4-key-with-vvdi-prog-and-vvdi2/

Xhorse VVDI ID48 96 Bit Cloning Function completed

Dear Xhorse VVDI2 key programmer users, VVDI2 96 bit ID48 cloning function (Item #SV86-S3) is now completely ready.

Worldwide Launch
After using for more than 3 months, a large number Chinese locksmith demonstrated that the VVDI server performance is stable and reliable, it is high time that we should launch worldwide.
Cloning needs ordinary ID48 chip only, data collection does not need to go through the OBD interface.

The activation fee is $ 250, give 1500 points as a gift when activating, cloning costs 100 points each time . Points can be accumulated by using VVDI remote, or you can buy calculation tokens as well, price for tokens is 16.5 dollars.

Different VVDI2 48 Function Explanation:

Copy 48 emulator/collector
collect data from ignition switch, used for copy 48 transponder by OBDII

Copy 48 Transponder by OBDII (SV86-S2)
Require: VAG 4th generation immo system, require read PIN & CS from ECU,copy
48 emulator
Support: all key lost/keyless go system/No soldering or remove module
Support models: (if can read cs/pin from ECU, means support) parts of example:
Mostly of JCI new type dashboad 2016-EOS
Volkswagen Scirocco
Audi Q3
Tiguan keyless go system
Parts of 24C64,24C32 dashboard

VVDI2 96bit copy 48:
require: Woking key, collect data from vehicle ignition switch, copy 48 emulator
support: All car types with 48 transponder without OBDII, only add spare key
support list:(parts of example)
2002-2017 VAG 48 transponder cloning, Honda, Buick, Cadillac, Fiat, Volvo,
Great Wall, Zhonghua more details,
1. 96 bit copy 48 support normal 48 transponder in the market(no need special transponder)
2. 96 bit copy 48 support add spare key no limited quantity, support as the vehicle all key position
3.96 bit copy 48 neither support keyless go system nor MQB platform.

www.vvdishop.com

http://blog.vvdishop.com/xhorse-vvdi2-96-bit-id48-complete-cloning/

loading..

Xhorse VVDI ID48 96 Bit Cloning Function completed

Dear Xhorse VVDI2 key programmer users, VVDI2 96 bit ID48 cloning function (Item #SV86-S3) is now completely ready.

Worldwide Launch
After using for more than 3 months, a large number Chinese locksmith demonstrated that the VVDI server performance is stable and reliable, it is high time that we should launch worldwide.
Cloning needs ordinary ID48 chip only, data collection does not need to go through the OBD interface.

The activation fee is $ 250, give 1500 points as a gift when activating, cloning costs 100 points each time . Points can be accumulated by using VVDI remote, or you can buy calculation tokens as well, price for tokens is 16.5 dollars.

Different VVDI2 48 Function Explanation:

Copy 48 emulator/collector
collect data from ignition switch, used for copy 48 transponder by OBDII

Copy 48 Transponder by OBDII (SV86-S2)
Require: VAG 4th generation immo system, require read PIN & CS from ECU,copy
48 emulator
Support: all key lost/keyless go system/No soldering or remove module
Support models: (if can read cs/pin from ECU, means support) parts of example:
Mostly of JCI new type dashboad 2016-EOS
Volkswagen Scirocco
Audi Q3
Tiguan keyless go system
Parts of 24C64,24C32 dashboard

VVDI2 96bit copy 48:
require: Woking key, collect data from vehicle ignition switch, copy 48 emulator
support: All car types with 48 transponder without OBDII, only add spare key
support list:(parts of example)
2002-2017 VAG 48 transponder cloning, Honda, Buick, Cadillac, Fiat, Volvo,
Great Wall, Zhonghua more details,
1. 96 bit copy 48 support normal 48 transponder in the market(no need special transponder)
2. 96 bit copy 48 support add spare key no limited quantity, support as the vehicle all key position
3.96 bit copy 48 neither support keyless go system nor MQB platform.

www.vvdishop.com

http://blog.vvdishop.com/xhorse-vvdi2-96-bit-id48-complete-cloning/

loading..

How to install and register VVDI key tool Android app

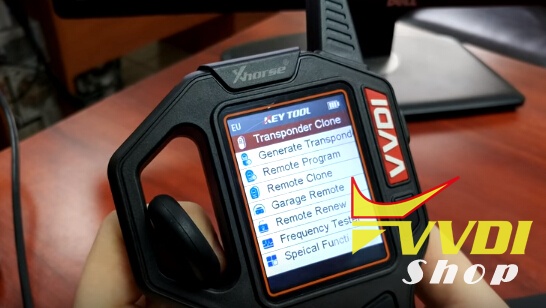

Xhorse tech developed a VVDI Key Tool Mobile APP special for global locksmith. It can be used for car remote control and chip related operations by connecting to the VVDI KEY TOOL device through Bluetooth and provides data retrieval and customer service as well.
Software function mainly includes transponder generating, transponder cloning ,transponder editing, remote generating, remote cloning, remote refreshing, bonus points mall, customer service, upgrade bulletins,etc.

Xhorse VVDI Key tool android app installation and register

Step 1
Download app from google store

If your APP not switch to ENG, change your phone language to ENG first

Step2
Go to EMAIL REGISTRATION

Step 3 write your mail and request activation code via email

Or you can change app language after registering, the language can be changed here

Note: Please use Gmail, Hotmail, Yahoo mail etc. Check your spam folder in case it was diverted.
Add their email to your allowed list, maybe getting blocked somehow.

Xhorse keytool App Menu display:

www.vvdishop.com

http://blog.vvdishop.com/download-register-and-install-vvdi-key-tool-mobile-app/

Xhorse VVDI Prog 2018 new adapters 10pcs

Xhorse company released some new adapters for VVDI Prog programmer in January  2018.

1. Xhorse XDPG13CH AM29FxxxB for VVDI Prog 10pcs

2.Xhorse XDPG14CH MC68HC05X32(QFP64) Adapter for VVDI Prog 10pcs

3.XHORSE XDPG15CH MC68HC05BX(PLCC52) Adapters 10pcs

4.Xhorse VVDI Prog Mercedes Benz EZS/EIS adapters Full Set 10pcs

10pcs VVDI EIS/EZS Adapter listing:

for W164(ST12),

for W169(ST12),

for W203(HC08),

for W209/211(ZWG),

for W209/211(HC12),

for W211(ST12),

for W215/220/230,

for W639(HC08),

for SPRINTER(ST12),

for VITO W639(ST12).

http://www.vvdishop.com/producttags/vvdi-prog-adapter.html
